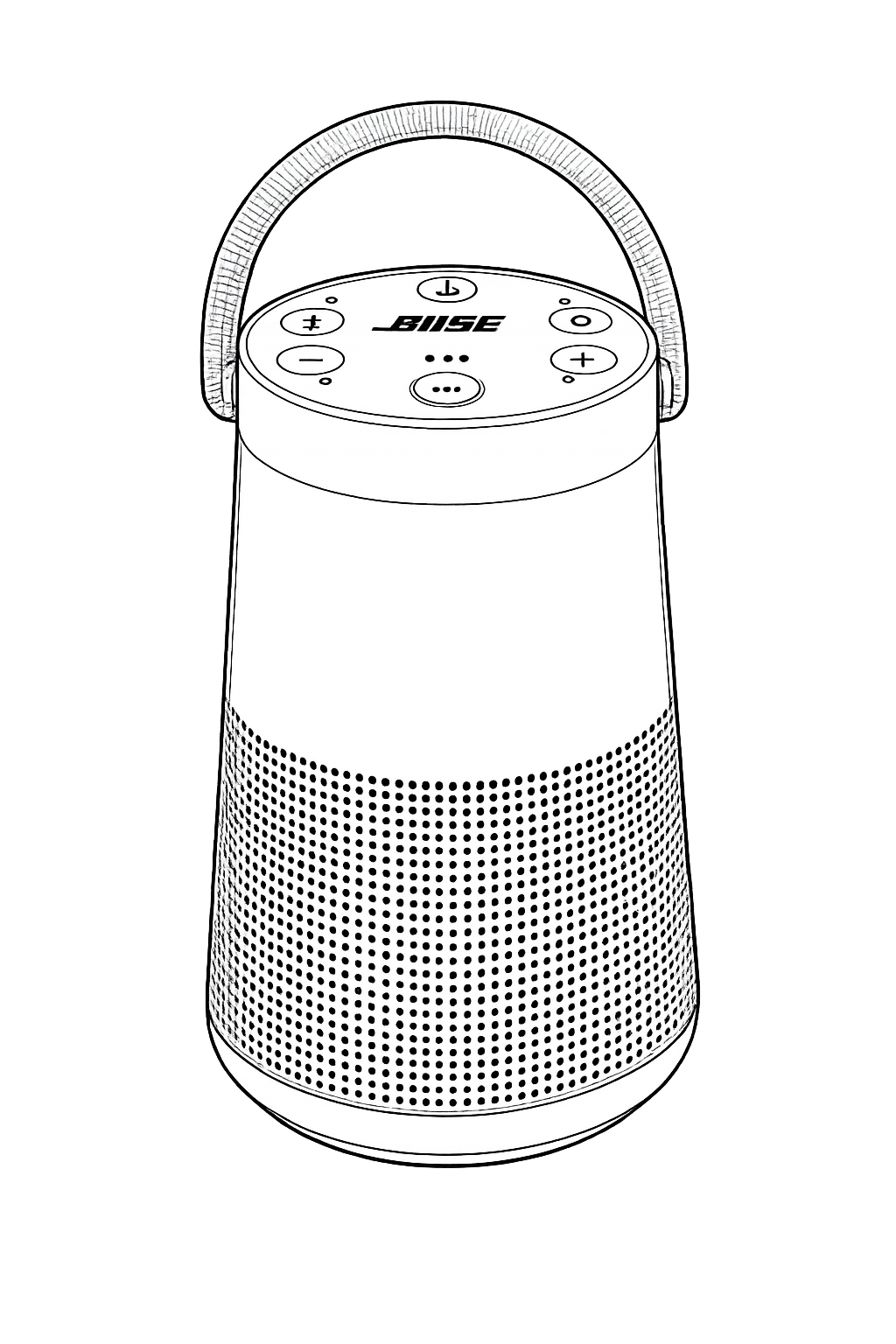

Acme Revival connects your Bose SoundLink Revolve+ II with a nationwide network of skilled electronics technicians built to fix what manufacturers won't. Start online, ship it in, and track every update and outcome in one transparent Service Dashboard.
1
Repair
$49.00
FLAT-RATE REPAIR (LABOR)
90-Day Warranty
No-Fix Repair Guarantee
Revival’s flat-rate repair service is a best-effort attempt to diagnose and repair the reported issue. The advertised price covers technician labor only and will not increase.
If replacement parts are required, we’ll provide a separate quote for your approval before proceeding. If we can’t complete the repair, your labor charge will be refunded. A separate $25 Repair Network Service Fee applies, along with return shipping & handling. These charges are non-refundable.
Repairs may be limited by device condition, prior damage or modification, safety concerns, or unavailable manufacturer-controlled parts or resources.
Most Recent Repair Requests:
2 (Known) Parts List:
AP_K23GPDUHXW51Y28NBKJTI6
SLAB ASSY, SNDLINK REVOLVE PLUS, MAIN, SVCE; OEM P/N: 750601-081S
AP_SKL0L5S1GO7QJ0F0AHHTM0
PCB ASSY, SNDLINK REVOLVE PLUS, POWER, SVCE; OEM P/N: 750604-002S
AP_GHQWTV7L4O7BT7APLLVS40
PCB ASSY, SOUNDLINK REVOLVE PLUS, NFC_SVCE; OEM P/N: 752528-001S
AP_8T1QLQD8LE6QI8QOGJYMY0
BATTERY, LI-ION, 2S1P; OEM P/N: 745531-0010
AP_T0I0MCKIE0BVVUIIUO9B6P
SPEAKER, FR, 90-71/20, 2 OHM, PPR/RBR, ND+ND; OEM P/N: 740396-0020
AP_YVJ58N7DONA6HE4JNL1K3R
SOUNDLINK REVOLVE CHARGING CRADLE, 5V; OEM P/N: 782298-0010
AP_S2F3QHG8DU51D4B7MIJME6
ACOUSTIC DEFLECTOR ASSEMBLY
AP_CIBT4HU6XHQP55C8LTBGT4
TOP CAP SEALING PLATE ASSEMBLY
AP_S9K9ZF2COJFP6Q2DO8CZ4N
ENCLOSURE
AP_YJ3XLC5UVCVMEI7MG5UBYP
HANDLE ASSY, BLACK; OEM P/N: 752818-0010
AP_WCMLSR75ZFK6FL39Z579TD
HANDLE ASSY, GREY; OEM P/N: 752818-0040
AP_0XXQMZM41PKKYX3AK9WJX6
GRILLE, BLACK; OEM P/N: 739626-0050
AP_BCX0GDOM04VTGY8PBFAIEU
GRILLE, GRAY; OEM P/N: 739626-0060
AP_KZSCXDE289YRBQ84XWQBZ7
CAP, TOP, BLACK; OEM P/N: 751350-0010
AP_DV4Y16K01N7G6BJALK8ILC
CAP, TOP, GRAY; OEM P/N: 751350-0020
AP_K603YOPZPP2772RCVKLA0H
BOTTOM CAP, BLACK; OEM P/N: 742364-0010
AP_99JIQG8S5E22NU1YH07IC5
BOTTOM CAP, GRAY; OEM P/N: 742364-0020
AP_TQAXO4UGV2AVSCV9NMV0BT
PWR SUPPLY, EXT, USB, 5.1V, 1.6A, BLACK (US/JP); OEM P/N: 776716-0010
AP_19440CIAW4QL2GRK0WCL2Y
PWR SUPPLY, EXT, USB, 5.1V, 1.6A, GRAY (US/JP); OEM P/N: 776716-0030
AP_8DW3015WNZB1VI7YTR033P
PWR SUPPLY, EXT, USB, 5.1V, 1.6A, WW, BLK; OEM P/N: 745559-0020
AP_JOK6WBSPY8OHNZLKFCK6NK
PWR SUPPLY, EXT, USB, 5.1V, 1.6A, WW, GREY; OEM P/N: 745559-0040
AP_MZOWWY37CUW99LARZCLKV4
PASSIVE RADIATOR, OVERMOLDED; OEM P/N: 757970-0010
AP_TX6YY0C2QMIEFQEGPHGI1S
IC, SoC, BLUETOOTH, DSP, VFBGA-112, CSR8675; OEM P/N: 760064-0010
AP_NBH94MBGEGB3YXPMB8YTX0
IC, PWR AMP, CLASS D, 2X30W, 8OHM, 32SO; OEM P/N: 804166-0010
AP_TD7CCNFJMSPDBJOG5HLYNY
IC, BATT CHRG, LI-ION, USB, 2-CELL, 5V, 25CSP; OEM P/N: 715728-0110
AP_7PYYO3EHFNA6DFX7E34D14
IC, LOW Q, BOOST, DC, DC CNTRLLR, TPS43060; OEM P/N: 754853-0010
AP_L4WRBGO0JE71WAQAM0O7YC
IC, ADC, AUDIO, 2/4CH, 3.3V, 30TSSOP; OEM P/N: 724761-0010
AP_M7TZTHJWASRH4PEK2O07XR
IC, NFC, NTAG, TYPE2, I2C, FDI, 888B, QFN; OEM P/N: 747756-0020
AP_17XCVPBTBH19FAZR9RXHED
IC, uC, 32b, 32kB FLASH, STM32F031G6; OEM P/N: 738160-0020
AP_FXZ51YDYYI1IN51V3NXMFF
IC, FLASH, SPI, 8Mb, 3.6V, W25Q64VSSIG, 8SO; OEM P/N: 755504-0010
AP_N3MT1NZ9JMU96LBD5FI23L
IC, VREG, SW, BUCK, 0.5A, 3.3V, TPS62172, 8WSON; OEM P/N: 715991-0010
AP_E0HMFG0WTULEJGCU2RK3H9
IC, VOLT COMPAR, QUAD, SMD, QFN, LM339; OEM P/N: 187618-003
AP_5MJ78OFOXDG7JZ6SY5NUI5
IC, VOLT REG, LDO, POS, 0.2A, 3.3V, SOT-23-5; OEM P/N: 751831-3V3
AP_3A3692HHNT8YO497AS4OEE
IC, MUX/DEMUX, 2X2:1, USB, TS3USB221E, 10QFN; OEM P/N: 353620-0030
AP_ZUZ60YGATNSC4UMUHT9ESS
MICROPHONE, MEMS, BOTTOM PORT, AKU441; OEM P/N: 728418-0020
AP_B47F6LQ0FM8YYD6GFZI46Q
FILTER, RF, BAND PASS, 0805, 2.4GHz, IL 1.8dB; OEM P/N: 746996-0010
AP_9IZL0D7BZ194Y97Z862FU3
TRANSISTOR, MATCHED NPN, 60V, 0.2A; OEM P/N: 273112-001
AP_XXK4I37J2XT7BB5XHX42DQ
TRANSISTOR, MFET, N-CH, 18A, 30V, QFN; OEM P/N: 628604-0010
AP_3NBANBYIHUVGJR1SYZ9YVQ
TRANSISTOR, MOSFET, P-CH, 4A, 20V, SOT-23; OEM P/N: 626239-0010
AP_7U0ZSM0V0RKSD71WY97NZW
TRANSISTOR, MOSFET, N-CH, 0.310A, 60V, DFN; OEM P/N: 747369-0010
AP_K6THNELVGB8S02NV54K4R0
TRANSISTOR, MOSFET, P-CH, 0.3A, 30V, DMP32D4S; OEM P/N: 736331-0010
AP_97CR0WI6P27E3DXC9JWCNU
TRANSISTOR, MFET, P-CH, 0.2A, 20V, SOT-523; OEM P/N: 779699-0010
AP_Q6VEN1AJRA6ILYF1O0TLPZ
TRANSISTOR, BP, PNP, 40V, 0.2A, SOT-523; OEM P/N: 738755-0010
AP_0WV4FIPLMIXX5OGPNCKK1L
TRANSISTOR, BIAS, NPN, .15W, 4.7K/47K, SOT523; OEM P/N: 738909-0060
AP_LG6ITNZ7TD5285PTJWNKB5
TRANSISTOR, BIAS, PNP, 0.15W, 47K/47K, SOT523; OEM P/N: 738923-0050
AP_A0ZBQO546QMAOI2KO7ZDT4
TRANS, MBT3904DW1T1; OEM P/N: 195857-3
AP_31X83UCVTTVZYYMG280ZYN
INDUCTOR, POWER, SMT, 9.8A, 20%, 3.3uH; OEM P/N: 749234-3R3M
AP_271TJ4CORJ2CKKSJG5S5PM
INDUCTOR, SMT, 6X6mm, 2.6A, 20%, 4.7uH; OEM P/N: 369623-4R7M
AP_QNAR9WR05VZJBY16WOIMM3
INDUCTOR, POWER, SMT, 85C, 1.2A, 20%, 3.3uH; OEM P/N: 716046-3R3M
AP_37K3MLQU4SUFSRTWVKXGVB
INDUCTOR, POWER, SMT, 85C, 1A, 20%, 4.7uH; OEM P/N: 627684-4R7M
AP_ZUD0K34XJCY0K7AAC9XMQX
CONN, CUSTOM, 3.5MM/USB, BLACK; OEM P/N: 744538-0010
AP_MRIMH3YDWGTBQD2G2NC1DW
CONN, CUSTOM, 3.5MM/USB, GRAY; OEM P/N: 744538-0020
AP_7J6P19O0GWPHFTK3VS5CEN
CONNECTOR CHARGING, 4 PIN; OEM P/N: 749999-0010
AP_4KW7HXWF4QXHK04AFYSJGQ
CONN, BRD-CBL, 5 POS, FEMALE, BLACK; OEM P/N: 727945-0050
AP_EEDI837Z3W73YTGV6V4GME
CONN, FFC, 0.5MM, S ENTRY, 32POS, DK BRN; OEM P/N: 715435-32S2
AP_77WYQDT8I01EUDTRR42O02
CONN, FFC, 0.5mm, S ENTRY, 14POS, ZIF; OEM P/N: 363842-14S2
AP_ZORFJFPV9TY1WCYKL73ZJ0
CONN, FFC, 0.5mm, T ENTRY, 32POS, WHT; OEM P/N: 628897-0032
AP_I41SPJF5C9GNNLS2SHC0DI
CONN, BRD-BRD, 0.4mm, 12 POS, MALE; OEM P/N: 751521-0012
AP_N0BBNRTGB7FV6VV11J3NS5
CONN, BRD-BRD, 0.4mm, 12 POS, FEMALE, 2.0mm; OEM P/N: 757317-2012
AP_H853BVF7DNJEZZ7OGHYPAQ
FFC, CABLE ASSY, 32 POS; OEM P/N: 751176-0010
AP_LAA3GBPUE9PWSL3SOPAS5C
HARNESS, TRANSDUCER; OEM P/N: 756316-0010
AP_Y1997HS2DAFYVO0OPQDJUV
HARNESS, TRANSDUCER; OEM P/N: 756316-0020
AP_V1X064YMWSRS3YLIIVKDW4
CABLE, USB A TO MICRO B, 1M, 22AWG, BLACK; OEM P/N: 807815-1022101
AP_EF5UQWD4UKMHL8Z1P371DC
CABLE, USB A TO MICRO B, 1.0M, 22AWG, LUXE; OEM P/N: 807815-1022301
AP_O03D65IGKJVATQ5IJFUFRF
BUTTON PAD / SILICONE KEYPAD ASSEMBLY
AP_FB4AJR8218FCP1QM1469P9
HANDLE BUSHING SET
AP_34G3B1Q3XYOSQOZVXRBUBJ
HANDLE MOUNTING INSERT SET
AP_5NX7OP58V08Z8CJXZQKBK7
1/4-20 THREADED MOUNT INSERT
AP_T9KM6JDDYD9P1M752K1JRO
NFC ANTENNA / COIL ASSEMBLY
AP_ZEQGS8P1OZ493UTQL6TYAG
MICROPHONE ACOUSTIC PORT ASSEMBLY
AP_DS4OU3WS0UAAVSPR4P7DZX
DIODE, TVS, ARRAY, 6AMPS, DT1042-04TS-7; OEM P/N: 739075-0010
AP_2RQL7IRJEYYD5US1JLMI58
DIODE, TVS, 18V, 400W, UNI-DIR, SMAJ; OEM P/N: 310547-018
AP_M6XW73BSAHEDKMMW4M9N0D
DIODE, SCHOTTKY, 3A, 60V, POWERDI-123; OEM P/N: 369679-60
AP_BR928Q9L8BCZHTCGBAKN5D
DIODE, SCHOTTKY, 40V, 3A, SMB; OEM P/N: 193847-001
AP_46JHPBGOYD7BAMP9XM72L6
DIODE, SCHTKY, SC70, 30V, SINGLE; OEM P/N: 268381-001
AP_3T2I9R2CNRZ6LFMIHA9ES3
DIODE, SCHTKY, SC70, 30V, DUAL; OEM P/N: 268381-003
AP_PVTXL1O8WQ8FG1R864SSW1
DIODE, SCHTKY, SC70, 30V, SERIES; OEM P/N: 268381-004
AP_TP7QV13CRQDHRPK852K3FE
DIODE, SW, 85V, 0.075A, SOT-523, BAV99T; OEM P/N: 370629-0010
AP_KA1C81WAFUP9GKVETKP6UK
DIODE, SW, 75V, 0.215A, SOT-563, BAV99BRV; OEM P/N: 738692-0010
AP_0I5OIF75NHKXN0RMSVIZYS
DIODE, ZENER, 0.15W, 5.6V, SOT-523; OEM P/N: 738957-5V6
AP_QUP1XRK28G92IEBK9T2P03
DIODE, ZENER, SMT, 5.1V, IN5231; OEM P/N: 174265-5231
AP_PIPTXDYO7VTW44SKIKPER5
DIODE, 0603, LED, 0603, 10mA, 5V, WHITE; OEM P/N: 728316-0030
AP_IVPGIZQFJ7Q5IZEYWK86CG
DIODE, LED, 0603, 0.020A, 5V, YELLOW_GREEN; OEM P/N: 727501-0040
AP_O2S1SGHBOH35BRSPKWPBG4
DIODE, LED, 0603, 0.020A, 5V, VERT, YELLOW; OEM P/N: 727501-0030
AP_53AUUAD52KCDE81JYVFEXH
DIODE, LED, 0603, 0.20A, 5V, VERT, RED; OEM P/N: 727501-0010
AP_JVOG08UD8V282A4UIMFLH8
DIODE, LED, 0603, 0.20A, 5V, BLUE; OEM P/N: 728316-0020
AP_ZP9BPMB0FIESF27428EGCO
CRYSTAL, 26MHz, 10ppm, SMD; OEM P/N: 291429-008
AP_3BY9QBH6SY13S4BENUZJ8E
BEAD, FERRITE, 1806, 6A, 100OHM; OEM P/N: 722888-0010
AP_UOM4NNROE3EAD1NEXP0W0Q
BEAD, FERRITE, 0603, 220 OHM, 2A; OEM P/N: 322644-221A
AP_L60JVL243U507YWX2LBD6V
BEAD, FERRITE, 0603, 6A, 26OHMS; OEM P/N: 345337-S026
AP_8A0ZXTKE4GYSXT7LPDFQN9
BEAD, FERRITE, 0402, 300mA, 220 OHM@100MHz; OEM P/N: 327268-221
AP_6MVBRKTEQSNOH3ECSTNT3P
MAGNET, FERRITE BACKER (used on NFC PCB); OEM P/N: 754335-0010
AP_FSV41ZIVD2G3GG3NTEA174
CAP, EL, SMT, LOW Z, 105C, 35V, 20%, 33uF; OEM P/N: 375063-330VF
AP_O4BYAITB9QW30EJAEBHYDB
CAP, X7R, FLEX TERM, 1210, 50V, 10%, 10uF, COMM; OEM P/N: 775915-106K1H
AP_SILEQQHHCCCDGBGMT5AOLL
CAP, X5R, 0805, 25V, 10%, 10uF; OEM P/N: 273592-106E
AP_9ZHEAXN6KUHX29TZO7X23W
CAP, X5R, 0603, 25V, 20%, 10uF, COMM; OEM P/N: 718835-106M1E
AP_FGA3G8GZD162BW4QWXTLO8
CAP, X5R, 0805, 10V, 10%, 10uF; OEM P/N: 354809-106K
AP_MUFFO56723V0F1D2YQPB17
CAP, X5R, 0603, 6.3V, 20%, 22uF, COMM; OEM P/N: 718835-226M0J
AP_T0IM5RB0CZI9KJ64MCDEZZ
CAP, X5R, 0603, 25V, 10%, 4.7uF, COMM; OEM P/N: 718835-475K1E
AP_420E844NB1601FW3F71MEZ
CAP, X5R, 0603, 25V, 10%, 1uF, COMM; OEM P/N: 718835-105K1E
AP_M59FYGES8D76SUPZ204OX9
CAP, 1206, X7R, 50V, 1.0uF, 10%; OEM P/N: 286500-105
AP_2NJXY0403OF3DI5RLQVUHH
CAP, 1206, X7R, LD, 25V, 10%, 1.0uF; OEM P/N: 306105-105
AP_ZWB6SGG90NCGITPRVNVFLB
CAP, X5R, 0402, 20%, 6.3V, 2.2uF; OEM P/N: 313771-225JM
AP_TL0D6ABGEAVVP5QVVHMM1I
CAP, X5R, 0603, 4.7uF, 6.3V, 20%; OEM P/N: 313766-475J
AP_0GQJGKLAP30CRNGXB25A5J
CAP, X5R, 0402, 10V, 10%, 1uF, COMM; OEM P/N: 716994-105K1A
AP_FBHH05ATSKYYHBN8ZIVG5B
CAP, X5R, 0402, 6.3V, 10%, 1uF, COMM; OEM P/N: 716994-105K0J
AP_6RS6BJUCMIU2MYJOHCRAG8
CAP, X7R, 0603, 16V, 5%, 0.47uF; OEM P/N: 257154-474J16
AP_YLGKJNIQ3Y7BWJV0XNMPU1
CAP, X7R, 0603, 50V, 10%, 0.1uF, COMM; OEM P/N: 718875-104K1H
AP_XIIYX05XUDXZ05UF5HVLZJ
CAP, X7R, 0603, 10%, 0.1UF, 50V; OEM P/N: 304991-104
AP_ZY3KX9BB19Z62TT9U7L6KC
CAP, X7R, 0402, 16V, 10%, 0.1UF; OEM P/N: 293702-104
AP_N0T4OLID2KI51RGF9COXLM
CAP, 0805, X7R, 50V, 10%, 0.22uF; OEM P/N: 133623-224
AP_8ZNPCHNO9FGE49POCTHU9E
CAP, X5R, 0402, 10V, 10%, 0.33uF, COMM; OEM P/N: 716994-334K1A
AP_WPKRVT8VYPQ5UITKC7CBAH
CAP, X7R, 0402, 25V, 10%, 0.027uF, COMM; OEM P/N: 718866-273K1E
AP_OK2MKRZI74MZSP73YZZM02
CAP, X7R, 0402, 16V, 10%, 0.033uF, COMM; OEM P/N: 718866-333K1C
AP_605LXRMDZ13W2XRCGY8G1M
CAP, X7R, 0402, 16V, 10%, 0.015uF, COMM; OEM P/N: 718866-153K1C
AP_WMSR3E4EBY5FOKWV3C769L
CAP, X5R, 0201, 16V, 10%, 0.1uF, COMM; OEM P/N: 716965-104K1C
AP_PC5DVM8FKSGPZK1R94O037
CAP, X5R, 0201, 6.3V, 10%, 0.068uF, COMM; OEM P/N: 716965-683K0J
AP_941HGLV1D3MEOU0O133XMA
CAP, X5R, 0201, 6.3V, 10%, 0.47uF, COMM; OEM P/N: 716965-474K0J
AP_CTD2WVVKSYNKSZ703W128N
CAP, X5R, 0201, 6.3V, 10%, 10000pF, COMM; OEM P/N: 716965-103K0J
AP_AIBIIH1BK3PICZ3MX6U8SO
CAP, X5R, 0201, 16V, 10%, 10000pF, COMM; OEM P/N: 716965-103K1C
AP_VYS1AJZAE8WD5IFF6KHXJJ
CAP, X7R, 0201, 25V, 10%, 1500pF, COMM; OEM P/N: 720241-152K1E
AP_122P91ZQE8YND2IY09JRPU
CAP, X7R, 0201, 16V, 10%, 2200pF, COMM; OEM P/N: 720241-222K1C
AP_4QNYIRVJ2XT3JVCC3AAJTW
CAP, X7R, 0201, 16V, 10%, 1000pF, COMM; OEM P/N: 720241-102K1C
AP_H4Q4HXSDAWTX7Z3DXJHL3C
CAP, X7R, 0201, 16V, 10%, 100pF, COMM; OEM P/N: 720241-101K1C
AP_MT65PXH9FP21SPL4IDFUEM
CAP, COG, 0603, 50V, 5%, 330pF; OEM P/N: 188454-331
AP_8VTOHCX78KSNPX4H248HIC
CAP, COG, 0402, 5%, 1000pF, 50V; OEM P/N: 268364-102
AP_3HZIT6HII24EBF8TXAKYBI
CAP, COG, 0402, 5%, 15pF, 50V; OEM P/N: 268364-150
AP_KJ1FP8W3Y6BHWZAWSBUWR3
CAP, C0G, 0201, 25V, 5%, 10pF; OEM P/N: 329480-100J
AP_G6O1SF9Y1EQILOWLV6GPVX
RES, METAL FOIL, 1206, 1W, 1%, 0.003 OHM; OEM P/N: 755170-R003F
AP_G0QXVD2K0IZKAK6NRNGICA
RES, 1210, 500mW, 5%, 0.10 OHM; OEM P/N: 318356-101J
AP_2B1UMIENWO1NOE7LYHRZK1
RES, 0805, .125W, 1%, 100; OEM P/N: 133625-1000
AP_5ZMA5WQV6QHMZ4QD5NRHWD
RES, 0603, .1W, 1%, 150 OHMS; OEM P/N: 191465-1500
AP_NPDRFXOKOBOGK6789ZYKKA
RES, 0603, .1W, 1%, 100K; OEM P/N: 191465-1003
AP_SF2LRPBPCB0MIJMGQCND9L
RES, 0603, .1W, 1%, 49.9 OHM; OEM P/N: 191465-49R9
AP_FYOXX4XFGSMI48DBJ66VQ3
RES, 0603, .1W, 1%, 24.9 OHM; OEM P/N: 191465-24R9
AP_FVZINCW4UCIDZFFUAZS0OT
RES, 0603, 0.1W, 1%, 2.15 OHM; OEM P/N: 191465-2R15
AP_WWI3QRNIJCUMPZT54BSVJN
RES, 0603, .1W, 1%, 6.81 OHM; OEM P/N: 191465-6R81
AP_FD1BXZ3DXBBHX9F242XRG0
RES, 0603, .1W, 5%, 33 OHMS; OEM P/N: 199403-330
AP_MJSD8JEGNKG402TRU79H5X
RES, 0402, 63MW, 1%, 150K; OEM P/N: 268361-1503
AP_5PC1BMR53OEV4BRS9U04Q9
RES, 0402, 63MW, 1%, 10.0OHM; OEM P/N: 268361-10R0
AP_I5YSU9CRNG1WHY4E73P1YB
RES, 0201, 0.05W, 1%, 1.00MOHMS; OEM P/N: 318529-1004F
AP_TA7R4LPAFD71GY6OWUT7TY
RES, 0201, 0.05W, 1%, 499kOHMS; OEM P/N: 318529-4993F
AP_K53A637JLX6ZFMQHV5IQVN
RES, 0201, 0.05W, 1%, 221kOHMS; OEM P/N: 318529-2213F
AP_I4ZGXLV1H1SUPP1Z52BLDI
RES, 0201, 0.05W, 1%, 150kOHM; OEM P/N: 318529-1503F
AP_9OWF9ABYBDFOB7NZKACH3K
RES, 0201, 0.05W, 1%, 110K; OEM P/N: 318529-1103F
AP_X4BQXFVH8WIUS8EQKWCKFQ
RES, 0201, 0.05W, 1%, 100kOHMS; OEM P/N: 318529-1003F
AP_DZ4BKWCWDXWEI98K5J2B85
RES, 0201, 0.05W, 1%, 63.4KOHM; OEM P/N: 318529-6342F
AP_MQDLFHQOPWBN2H0VM0PQ5V
RES, 0201, 0.05W, 1%, 46.4kOHMS; OEM P/N: 318529-4642F
AP_N20PGMSCYGAZDZL6K5GU1J
RES, 0201, 0.05W, 1%, 29.4kOHM; OEM P/N: 318529-2942F
AP_S87HYYBUOIS1OQ884I5QC7
RES, 0201, 0.05W, 1%, 23.7kOHMS; OEM P/N: 318529-2372F
AP_X3JRSMQZKS7LHIIP4VPRND
RES, 0201, 0.05W, 1%, 20.5kOHM; OEM P/N: 318529-2052F
AP_5MS8UMA22SZ5R9KWGWNST8
RES, 0201, 0.05W, 1%, 20kOHMS; OEM P/N: 318529-2002F
AP_ZRNZMRROTE94YN9EDAPRDI
RES, 0201, 0.05W, 1%, 10kOHMS; OEM P/N: 318529-1002F
AP_7610HJUWL65NTAJWJUZCRK
RES, 0201, 0.05W, 1%, 8.06K, OHM; OEM P/N: 318529-8061F
AP_Q9K7TQCL5064YRAX33EG68
RES, 0201, 0.05W, 1%, 4.99kOHMS; OEM P/N: 318529-4991F
AP_N7BZBBLY4B431V2BKT0HPQ
RES, 0201, 0.05W, 1%, 3.92KOHM; OEM P/N: 318529-3921F
AP_DIIUCH917AZNTNFN7GNQYW
RES, 0201, 0.05W, 1%, 2.49kOHMS; OEM P/N: 318529-2491F
AP_ZXUH09JT992K2A3BLK9EME
RES, 0201, 0.05W, 1%, 2.21kOHMS; OEM P/N: 318529-2211F
AP_PBUQAJ01EJDW4UR1E0MLN6
RES, 0201, 0.05W, 1%, 1kOHMS; OEM P/N: 318529-1001F
AP_JONJAOWLZZD4IQ1A818TY3
RES, 0201, 0.05W, 1%, 475OHMS; OEM P/N: 318529-4750F
AP_RBAG6RM3R0CRCX431TZMTW
RES, 0201, 0.05W, 1%, 249OHMS; OEM P/N: 318529-2490F
AP_QAZVMI0TXCS70XRGDZ05BQ
RES, 0201, 0.05W, 1%, 200OHMS; OEM P/N: 318529-2000F
AP_VPA0LUBDCZL21YZPKDQKP4
RES, 0201, 0.05W, 1%, 100OHMS; OEM P/N: 318529-1000F
AP_Z1F73T7179T14UGRB67VLH
RES, 0201, 0.05W, 1%, 75OHMS; OEM P/N: 318529-75R0F
AP_WZR4M7X3F62SDU7HHFBCFZ
RES, 0201, 0.05W, 1%, 68.1Ohm; OEM P/N: 318529-68R1
AP_V7MQ5HF3G5111XZ213HEGR
RES, FIXED, 0201, 0.05W, 1%, 49.9OHM; OEM P/N: 318529-49R9F
AP_HX50XASSGFJGVEQQCJ46LM
RES, 0201, 0.05W, 1%, 20OHMS; OEM P/N: 318529-20R0F
AP_TOIQD6T12IUI3AI2GZ155T
RES, 0201, 0.05W, 1%, 12OHMS; OEM P/N: 318529-12R0F
AP_TIZMCRPUS858VLWUIFUIA8
RES, 0201, 0.05W, 1%, 10OHMS; OEM P/N: 318529-10R0F
AP_AT0KUSDW6LVSRYL0I5Q07V
RES, 0201, 0.05W, 1%, 4.7OHM; OEM P/N: 318529-04R7F
AP_5K7AH3AZ82QW10IGV47V94
RES, 0201, 0.05W, 1%, 2.2OHM; OEM P/N: 318529-2R20F
AP_6W8WEQFAVF8XCB337UM45E
SWITCH, TACT, SPST, 50mA, 12V, 160gf, SMT; OEM P/N: 364142-0010
AP_YFQJ7OQQEEBOHM9GHPR1DT
JUMPER, 0201, 0OHM; OEM P/N: 330206-0010
AP_TB4WECKRFG9UBVV54WCUFN
THERMAL PAD, POWER PCB, 4.0MM; OEM P/N: 756969-0040
AP_B5U1K6AB50DBBQYP3PMNJQ
GASKET, DRIVER; OEM P/N: 748436-0020
AP_XKFIU3I40JMGOXGBKOY87H
GASKET, GRILL GROUNDING; OEM P/N: 751941-0020
AP_W57GJCH0CQ71DTVZT5E5XG
GASKET, CHARGING CONNECTOR; OEM P/N: 750580-0010
AP_VT2MDJ0WSLXZ16CJYJIDB0
GASKET, FOAM, IO CONNECTOR; OEM P/N: 751567-0050
AP_KUM8XMDLO4JQFJ439X10X4
GASKET, MICROPHONE (adheres inside top cap); OEM P/N: 754334-0010
AP_NAYMF2FZAE1YD3JUH6AX8K
GASKET, FOAM; OEM P/N: 771213-0010
AP_C1QONDNUGR30YWLUIODKXQ
GROMMET, FFC, 40 COND, 0.5 PITCH, CURVED; OEM P/N: 750233-0010
AP_FCW0COIQJ8MM1NV3R6PNRW
FILTER, MICROPHONE, 8MM OD; OEM P/N: 744588-0010
AP_LOD51PKQ779Z4X0FUO20A4
FOAM, NFC TO MAIN PCB; OEM P/N: 769363-0010
AP_Q41MYBFD7KJXNKXQVXMI96
FOAM STRIP, BATTERY; OEM P/N: 758132-0010
AP_K4DWMP910167EC2B31AYDT
FLOCK, FFC, BT SPEAKER; OEM P/N: 755839-0010
AP_VHTYRNTD8MC18N5PYSGDXM
FOOT, NG7 (USED ON BOTH PRODUCT COLORS); OEM P/N: 751570-0060
AP_I9BZUYKP30G0NUWPQ04H4Q
RING, PSA, FOOT, REVOLVE PLUS, SVCE; OEM P/N: 799365-001S
AP_TX5VXEFPLC89RM9R1R9YFL
SCREW DELTA PT M4X15 TORX TAMP PF LK (5 LOBE SECURITY); OEM P/N: 766254-1500
AP_66BBTLVH2ECZ98Z7GGHHSH
SCREW, THD FRM, 2-28, PAN; OEM P/N: 765878-0004
AP_JVEVQ0T2K5D53XX1JH8BYK
SCREW, TF, 2.5X0.95X10mm, PAN, TORX; OEM P/N: 761864-1010
AP_N56SRBUO0OY49QWHPC7US9
SCREW, TR, M3.5X0.8X18mm, TX, TAPTITE, TMPRES (5 LOBE SECURITY); OEM P/N: 761979-1018
AP_4UN5XNVWLXD03DCE05TA2W
SCREW, TF, DELTA-PT, 35-1.29X19MM PAN, X/SQ; OEM P/N: 763994-1019
AP_92AT8TJVFEHBPC7099VY20
ACOUSTIC DEFLECTOR MOUNTING SCREW SET
AP_ARTOC2Q5GNYUZU3K9QBKZY
TOP CAP SEALING PLATE SCREW SET
AP_P9DYQWISYLFIUJOC1D2ZP8
POWER PCB / BATTERY SUBASSEMBLY FASTENER SET
AP_JHVDL8KU1NUKEHHNSPU8OJ
AC PRONG, 230V EURO, BLK; OEM P/N: 787917-0110
AP_AUUHV0TGHODOXGWKHQHEUH
AC PRONG, 230V, EURO, GREY; OEM P/N: 787917-0120
AP_8NQN52UL3HKJ0XWCTKGL8R
AC PRONG, 230V UK, BLK; OEM P/N: 787917-0210
AP_R4RIOED1ZW3MJC22PQU1O6
AC PRONG, 230V, UK, GREY; OEM P/N: 787917-0220
AP_QAHTFJXFK14A3KFXNUGF3H
AC PRONG, 230V, AUS, BLK; OEM P/N: 787917-0310
AP_GUALBXHARE912QWYTLC78N
AC PRONG, 230V, AUS, GREY; OEM P/N: 787917-0320
AP_BMGX29GYSP6IGXM4W5CE2A
AC PRONG, 230V KOREA, BLK; OEM P/N: 787917-0510
AP_W3445LWOTVT01NEXX7RVCF
AC PRONG, 230V, KOREA, GREY; OEM P/N: 787917-0520
AP_CHC5O34H8T1JUSK7B92H20
AC PRONG, 230V, INDIA, BLACK; OEM P/N: 787917-0810
AP_QF95JA3T4SDZEJV87W1R0R
AC PRONG, 230V, INDIA, GREY; OEM P/N: 787917-0820
AP_1YLUAUFYOP8D5UL5FTYC9Z
AC PRONG, CHINA, BLK; OEM P/N: 787917-0410
AP_OMNLWJUU4XPFY4TUW3VU4H
AC PRONG, CHINA, GREY; OEM P/N: 787917-0420
AP_I5CN4WT8L4OKNCTGFZ45Z0
PACKING, RIGID, BOX, BLK, SLREV+, SM (Rigid Box, US); OEM P/N: 753641-0010
AP_FERP8QC871ECALTLWSQOBN
PACKING, RIGID, BOX, BLK, SLREV+, LG (Rigid Box, non-US); OEM P/N: 753651-0010
AP_2G3YPY7KQL1KA81JOWZ26C
PACKING, RIGID, BOX, BLK, TOP, SLREV+ (Rigid Box Top); OEM P/N: 769121-0010
AP_JRRGA9SUM8TLLJD3ID69E7
PACKING, TRAY, THERMO, HIPS, SLREV+ (Bottom); OEM P/N: 769124-0010
AP_CLB7N0OGVLW4BQUW7HUN35
PACKING, TRAY, THERMO, HIPS, SLREV+, (Top); OEM P/N: 766864-0010
AP_FRORNCM79LB43LV0KSMJND
PACKING, INSERT, D/C, SBS, SLREV+, US; OEM P/N: 776991-0010
AP_Y40MDNT0ZC5X0D85BYFHTN
PACKING, INSERT, D/C, SBS, SLREV+, EU/APAC; OEM P/N: 776992-0010
AP_MWEMWP8CT47R1SPWPMQ7LK
PACKING, INSERT, D/C, SLREV+, BASE, US; OEM P/N: 769154-0010
AP_8VPDNU3O5FLXPXEZGVU7U3
PACKING, INSERT, D/C, SLREV+, BASE, EU/APAC; OEM P/N: 756235-0010
AP_FC5SWMRLRR1X2ICYBJU3YE
PACKING, INSERT, D/C, SLREV+, LIT (Literature Envelope/QSG); OEM P/N: 753658-0010
AP_BHUFB7R6EY2R6M4GOSW6JT
PACKING,SLEEVE,REVOLVE+ II,US,TRPL BLK; OEM P/N: 858751-0010
AP_TW5C2FYLZ4Q9LOGY8TG9UZ
PACKING, SLEEVE, REVOLVE+, US, GRY; OEM P/N: 769220-0020
AP_AVFW2HTBDFJI01EV9NBDHW
PACKING, SLEEVE, REVOLVE+, EU, BLK; OEM P/N: 769235-0010
AP_DYJZHUIPSG7YRLE9OQDWAY
PACKING, SLEEVE, REVOLVE+, EU, GRY; OEM P/N: 769235-0020
AP_WMI5AAOFVRGYKOR7N2SSAR
PACKING, SLEEVE, REVOLVE+, APAC, BLK; OEM P/N: 769235-0090
AP_SCY40FQ8YO1AWCC4YRXLUO
PACKING, SLEEVE, REVOLVE+, APAC, GRY; OEM P/N: 769235-0100
AP_MEH46CJPCUOUG4LN2GOVGF
BAG, SHRINK, 120GA, PERFED, SLREV+; OEM P/N: 766956-0010
AP_3DX3O63302HVNX0RWSHRAO
ESD PROTECTIVE BAG, MAIN PCB
AP_8NZ1GYVGUSSI9JGX1SJWD5
ESD PROTECTIVE BAG, POWER PCB
AP_VPQZYC8TS41MQV8GG0K0G4
ESD PROTECTIVE BAG, NFC PCB
AP_PMC11FVW8H24FXSZSRM15C
BIT, 10 IPR TORX PLUS, SVCE (5 lobe Torx Plus security bit); OEM P/N: 767493-001S
AP_AFTT3C0WGU5LQRRH1C9P8W
15 IPR WERA SECURITY BIT; OEM P/N: 730985-001S
AP_HIK58132Z7WTQHRGM8TRSB
SERVICE TAP / UART INTERFACE CABLE
AP_FM7XQNFQXB041QH4HFDJH0
SERVICE TEST AUDIO CABLE, 3.5MM
AP_KR7FFNO5KZAEPDTGZVAMYI
SERVICE USB DATA CABLE, MICRO-B
AP_FHRV3BP7YJ7Z0B1CAIH042
SERVICE MANUAL, SOUNDLINK REVOLVE+ BLUETOOTH SPEAKER II; OEM P/N: 858366-SM
AP_OD95A5INU55Z6PPCDE24P3
SELF-REPAIR MANUAL, SOUNDLINK REVOLVE+ BLUETOOTH SPEAKER II; OEM P/N: 858366-SELF-REPAIR
AP_KDTQ9BEAGHHBC7HJM3BMDK
BOSE CONNECT APP SOFTWARE
AP_LLZZII8HUUO4YZDX1SFG23
SOUNDLINK REVOLVE+ II FIRMWARE IMAGE
AP_AGE8P4G1E3P9XKKNWB4YTB
TERA TERM TERMINAL SOFTWARE / SERVICE CONFIGURATION
AP_2XT0OWEMMSNDC5XAM65PRS
GLOBAL WARRANTY CARD, 1 YR; OEM P/N: 324486-0010
AP_KNJJW55BGSE5SEPOKWRLC5
SAFETY,SHEET,SOUNDLINK,REVOLVE+II,GLOBAL; OEM P/N: 858890-0010
AP_D6KHWM3956M7RDPRFGURA1
QSG, SOUNDLINK, REVOLVE+II, NA, TWN, JPN; OEM P/N: 858885-0010
AP_9LZZHA7XGG83CVT18LUK22
QSG, SOUNDLINK, REVOLVE+II, EUR, A (English, German, Spanish, French); OEM P/N: 858887-0020
AP_X5EK8WH5JN2HDY48GXF0P3
QSG, SOUNDLINK, REVOLVE+II, EUR, B (Danish, Dutch, Finnish, Hungarian); OEM P/N: 858888-0020
AP_5CD3CGN0QG9AQGO9KSZ8SB
QSG, SOUNDLINK, REVOLVE+II, APAC (English, Thai, Korean, Chinnese); OEM P/N: 858889-0010
AP_7LJNVL1VP95VSGJWX2T6GX
LABEL, WAFER, SEALING, 2.5X2.5IN, CLEAR; OEM P/N: 355963-0010
AP_J0CF87IP6AKJ2O82Y8WB99
PRODUCT SERIAL / REGULATORY LABEL, BLACK
AP_32R054EEX0QXRE7HOXLM47
PRODUCT SERIAL / REGULATORY LABEL, GRAY
AP_F5B4LGRV8S6QYOK6KO51PU
CARTON BARCODE / MODEL LABEL, US
AP_YNZHNSS3L7132CNSCL54M5
CARTON BARCODE / MODEL LABEL, EU
AP_ZD9TRCK1LISE1E5GO3B3US
CARTON BARCODE / MODEL LABEL, APAC

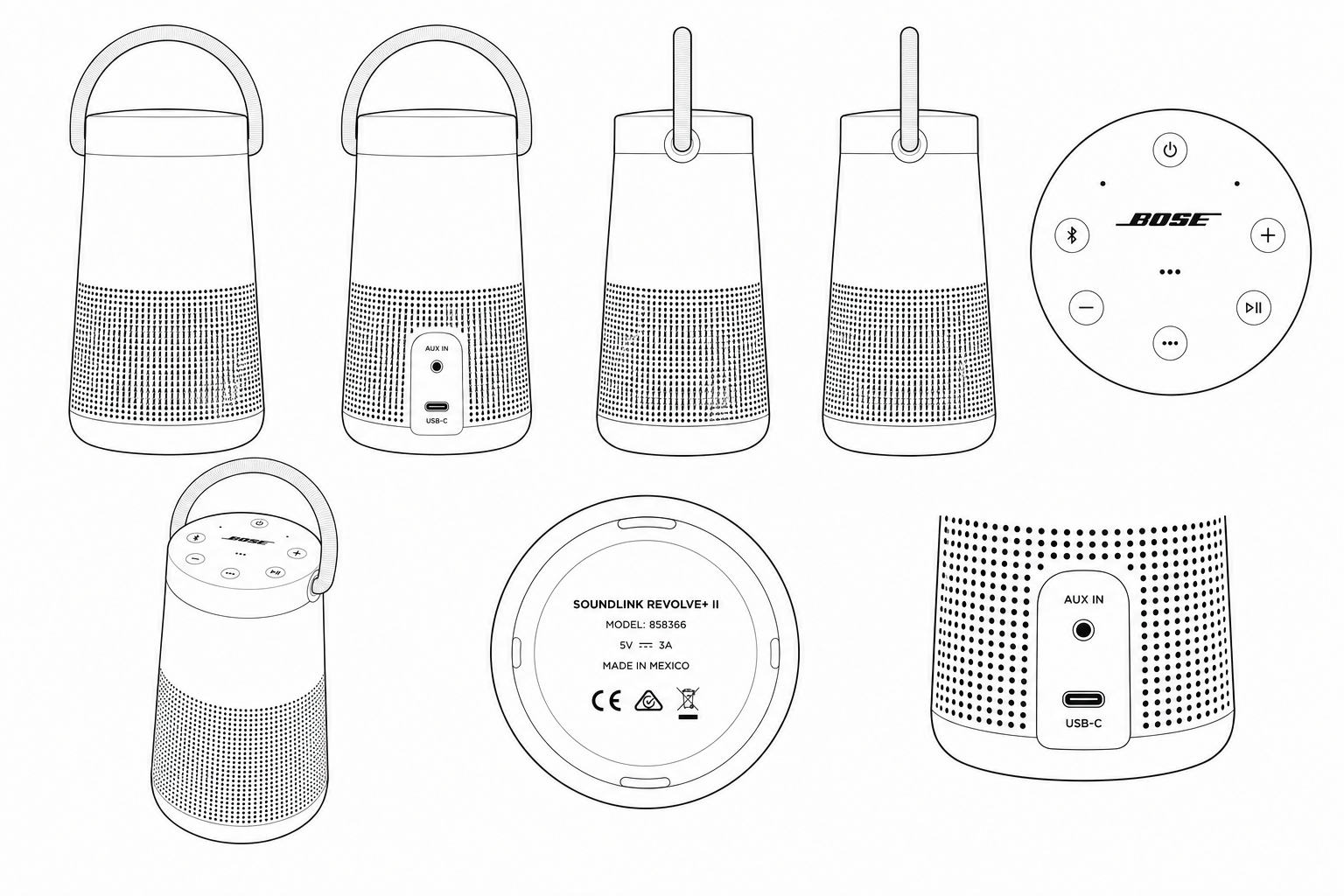

Repair, service & parts, for your Bose SoundLink Revolve+ II
- 1 Repairs are performed on a best-effort basis. Acme Revival utilizes a network of sophisticated technicians and engineers with diverse service offerings; despite this, factors that influence the repair outcome may ultimately prove unsuccessful. Acme Revival makes no claim that it can, guarantee a repair before your device is sent in for diagnostic evaluation; even then, repair and diagnostic work are not mutually exclusive. Despite well-intentioned quoting, repairs may still prove unsuccessful.
- 2 Parts known to Acme Revival via Acme’s Neural Network and documented discovery. These parts may not represent OEM cataloging nor does Acme Revival guarantee display accuracy. Always check with Acme’s Help Desk to ensure availability and accuracy. Parts may not be in new condition, may be unavailable, discontinued, or not offered for independent sale.
