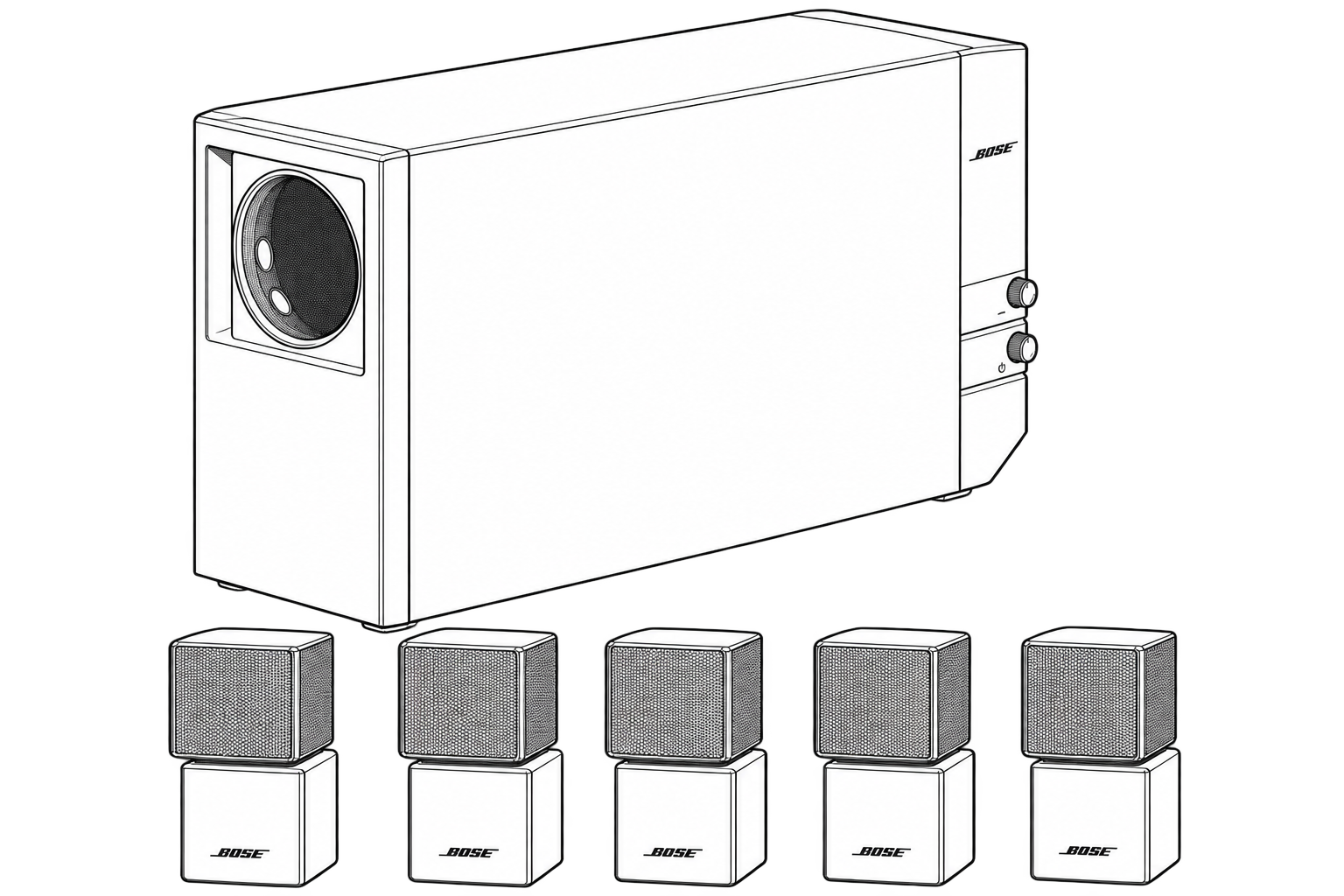

Acme Revival connects your Bose Acoustimass 30 with a nationwide network of skilled electronics technicians built to fix what manufacturers won't. Start online, ship it in, and track every update and outcome in one transparent Service Dashboard.
1
Repair
$225.00
FLAT-RATE REPAIR (LABOR)
90-Day Warranty
No-Fix Repair Guarantee
Revival’s flat-rate repair service is a best-effort attempt to diagnose and repair the reported issue. The advertised price covers technician labor only and will not increase.
If replacement parts are required, we’ll provide a separate quote for your approval before proceeding. If we can’t complete the repair, your labor charge will be refunded. A separate $25 Repair Network Service Fee applies, along with return shipping & handling. These charges are non-refundable.
Repairs may be limited by device condition, prior damage or modification, safety concerns, or unavailable manufacturer-controlled parts or resources.
Most Recent Repair Requests:
2 (Known) Parts List:
AP_QCWF1BOTGMXERY8WFG7J28
MODULE ASSY, AM-30P, 120V; OEM P/N: 193134-131C
AP_BQ72RM21CIJVWE1KBJ59NU
MODULE ASSY, AM-30P, 230V; OEM P/N: 193134-231C
AP_L26ZF3861WVVYB4ZRNAN2Q
MODULE ASSY, AM-30P, DUAL; OEM P/N: 193134-631C
AP_XRJ18Z3TKPQQM9UMB08247
PCB ASSY, AM-30P, 120V; OEM P/N: 193133-1
AP_TFOHYBHNVRJWPOADN4CUW9
PCB ASSY, AM-30P, 230V; OEM P/N: 193133-2
AP_BQA8VBOXT6AZKFFD3XNFXP
PCB ASSY, AM-30P, 120/230V; OEM P/N: 193133-6
AP_ZHXJBWA1C9SY86SCT5VJTR
SAT ASSY, BLACK; OEM P/N: 194420-01C
AP_1NBU6ZFUEFW0UJD8Y1B18X
SAT ASSY, WHITE; OEM P/N: 194420-02C
AP_7D1V6ROPR9MM7R22I0FG5R
TRANSFORMER, 115/230V; OEM P/N: 182577
AP_R3BIBM594CW2T38D8Y9KE1
REMOTE CONTROL; OEM P/N: 187700
AP_CI3TIGM9TD1ADG8XR32Z6V
WOOFER ASSY, 5.25 IN; OEM P/N: 172276
AP_6BZI53UQGCSL3TOZYJR25R
TWIDDLER, 2.25 IN; OEM P/N: 273244-002
AP_FDB7TCC4QLKA3HQOXJ8U97
TWIDDLER, 2.25 IN; OEM P/N: 291636-001
AP_MZG6QXCA8IDRH025YLL5FH
POWER PACK, US, 120VAC; OEM P/N: 178371
AP_AHMR8M2VB9Q5XVPBCC6L4M
POWER PACK, AUST., 240VAC; OEM P/N: 178373
AP_VUTN4NT30GBXHXBE5RVGL5
POWER PACK, UK, 230VAC; OEM P/N: 178374
AP_KB6GQ4SMYOWLJX4XRJ1EUQ
POWER PACK, EU, 230VAC; OEM P/N: 178375
AP_O8SWQ8PMZCJ1WXP5PBY5ZY
HEATSINK; OEM P/N: 172283
AP_W4PYIOBE91O9PO7PEQN1O0
PLATE, HEATSINK, METAL; OEM P/N: 172291
AP_AIGRPIFMHFYUY4WXXJLQYW
BASE PLATE; OEM P/N: 172288
AP_YK1036WIB58VPFSRUQXN4K
COVER, AM9P, REG, WHITE; OEM P/N: 172278-11
AP_L0HIHKTY0S5AZ0RU77FC02
COVER, AM9P, REG, BLACK; OEM P/N: 172278-12
AP_C8C4BRQ2ZE1MR86ZU2QFF0
CABLE PACK, R, L, C, WHITE; OEM P/N: 294522-2010
AP_H1VXHXUSTQUP31Y6C6VA7V
CABLE PACK, R, L, C, BLACK; OEM P/N: 294522-3010
AP_S51LFK3K8V3I7MXCE8CSCD
CABLE, SPEAKER, LS/RS, WHITE; OEM P/N: 294523-2010
AP_QKZN3CR65HRGGHAR5ADLAG
CABLE, SPEAKER, LS/RS, BLACK; OEM P/N: 294523-3010
AP_59M8ZTZOE2AGEWLSGQMP7P
CABLE, AUDIO INPUT; OEM P/N: 188694
AP_4A42BQCPE3H4SNXSIQ698P
CABLE, AUDIO INPUT; OEM P/N: 191493
AP_5U136R7EO8ALCF9XGJ40E2
CABLE, RCA, 6 FT; OEM P/N: 185931-01
AP_REO7DVYGW0H7HKASRIOFYJ
HARNESS, WOOFER; OEM P/N: 172275
AP_T0UH354ZTLI5A2QUDMW031
CABLE, FFC, 16 POS.; OEM P/N: 191124-16
AP_05UUOM7WXTPOXFXPH7X9OD
GRILLE ASSEMBLY, UPPER BLACK; OEM P/N: 192935-01
AP_3AEXGUFORIKVUY5LATGMAH
GRILLE ASSEMBLY, UPPER WHITE; OEM P/N: 192935-03
AP_33KDGA8UK6XXUYCBX335C1
GRILLE ASSEMBLY, LOWER BLACK; OEM P/N: 192935-02
AP_OV1AM1PHPL7CXHHWE5L6NQ
GRILLE ASSEMBLY, LOWER WHITE; OEM P/N: 192935-04
AP_VOUPMHJG7LHKVYPN2BMBS2
HARNESS ASSY, TWIDDLER; OEM P/N: 178719
AP_RYYFFFZP8AN6IMEKX8ILD7
POWER AMP, AUDIO, TDA7294; OEM P/N: 170156
AP_J6SAHJVW5WRY6TPMDZLJ5M
MICROCONTROLLER, ST6225M6; OEM P/N: 190333
AP_YNE6BT8XX3DAB1V4LY3S59
EEPROM, 1KB SERIAL, 59C11; OEM P/N: 147536
AP_NZKU1UHDVI9YCPJ1W6ARBC
VOLUME CONTROL IC, TC9213P; OEM P/N: 147622
AP_BYFGP8X78MA631CH0NTHN7
OP AMP, DUAL, CA3280; OEM P/N: 132591
AP_BSRXJS5EJ36BX66B3A3JHJ
OP AMP, DUAL, NJM2082M; OEM P/N: 146820
AP_NMY00JDX6C5RQ8I1RJWC8Q
QUAD OP AMP, TL074D, SOIC; OEM P/N: 186112
AP_DFTPAFNDEF0R9E8NZB51UJ
OP AMP, QUAD, TL074BCDT, SO14; OEM P/N: 188953
AP_850NPYC5PXHPK03U9E2W7N
VOLTAGE COMPARATOR, LM339; OEM P/N: 187618-001
AP_OYN2CQ2FJC3U7WCQ3NQKVK
DUAL COMPARATOR, LM393, SO-8; OEM P/N: 148584
AP_4Y83LHXHMDI1M9YRJAV9UC
OPTO-TRIAC DRIVER, MOC3063T; OEM P/N: 172297
AP_957BZWAV5GTNM0UXQNMZ93
VOLTAGE COMPARATOR, LM339N; OEM P/N: 137929
AP_MOKX6XTT3JX1RQ9NFYDCXL
OPTO-TRIAC, PDIP-6, MOC3023T; OEM P/N: 190334-001
AP_VTXZOE5YEKL6MZSLN3XFA8
VOLT REGULATOR, POSITIVE; OEM P/N: 137927
AP_1DLOC68HDDYPMG5Z1ZBDB5
VOLT REGULATOR, NEGATIVE; OEM P/N: 137928
AP_YQVFEBH6XEGWG8S773UDHH
TRIAC, TO-220; OEM P/N: 178807
AP_ZVPMGRVG9TNF6LFQFQ0OMU
DARLINGTON PNP, TIP146T; OEM P/N: 172285
AP_ZF1P23CCIU2NCZD0CC1GUE
DARLINGTON NPN, TIP141T; OEM P/N: 172284
AP_YF8FDGB80JKUNPXWHCPFFK
JFET, SOT, MMBF4392; OEM P/N: 134738
AP_0DH59WV8EAM9PKWCU6UZU4
BIPOLAR PNP, 55V, 150mA, SOT-23; OEM P/N: 258007
AP_TFIOWGWBJ834XS0F0VEBL6
BIPOLAR PNP, 55V, 150mA, SOT-23, ALTERNATE; OEM P/N: 134743
AP_ZQRZZL5F8PJJ4KUSERCQQ3
PNP, 2SB560F; OEM P/N: 140349
AP_CDW6PNX9609EALQBH5S5K3
PNP TRANSISTOR, SMALL SIGNAL; OEM P/N: 119168
AP_D8CXKZ7C0MUA8AHXQIJXPB
NPN TRANSISTOR, TAPE; OEM P/N: 117921
AP_FOD2SI0QIOEKLQGU9GDVIV
NPN, SOT, MMBT3904; OEM P/N: 146819
AP_C7PSFOXKG6PRO18G4FJ5N7
BRIDGE RECTIFIER; OEM P/N: 187611-001
AP_GKNN70LTXGSTMH78A0RY1K
DIODE, DUAL SOT-23, BAV99; OEM P/N: 147239
AP_ULCKRVBSO1NQP7TQ3785E5
ZENER, 12V, 225mW, 5%, 1N5242; OEM P/N: 135247-5242
AP_T9J3J7J1JROFF8CF9A1YDP
ZENER, 5.6V, 225mW, 5%, 1N5232; OEM P/N: 135247-5232
AP_7YOD3FK4Q0SWCD59FYG032
DIODE, 1N5402; OEM P/N: 170219
AP_U08GUU4R0P6L7V1ASIV1RL
ZENER, SOT23, 5.1V; OEM P/N: 135247-5231
AP_XBU7RW6XO8CYFNHJSSL0PK
DIODE, 1N4531; OEM P/N: 136603
AP_3WSQA1MU2JK6655SDX3PHL
ZENER, 3.3V; OEM P/N: 135247-5226
AP_KOBP4BMQPIVB7HH7NEEHTF
HEADER; OEM P/N: 134290-05
AP_0E1BSLKH8XJ03YM0GVJ3UH
CONN, HEADER, RTANG, JST 16; OEM P/N: 177258-16
AP_VNPWYWIJNWS6CXBO1M0R3B
CONN, HEADER, RTANG, JST S2P-VH; OEM P/N: 190552-02
AP_I1GRULD37YZYCJQPV40ITI
CONN, HEADER, RTANG, 2.5MM; OEM P/N: 145402-08
AP_R2PIL4KF6F5BZONDSFOLSA
CONN, DIN, RTANG, 8 POS; OEM P/N: 176198
AP_JFATO0QLIEOB0F8OY1IEYS
CONN, HOUSING, AC, 2 POS, FEMALE; OEM P/N: 146563
AP_9O8NP5YZUR33884C26O012
CONN, HEADER, 5 POS.; OEM P/N: 178742-5
AP_DWGUAWEDL28AKV0J74SN7C
CONN, PHONO JACK; OEM P/N: 180567
AP_8MGZEHVQ96E6EO6WXNN5XJ
CONN, PHONO JACK; OEM P/N: 260382-001
AP_64NDYZL8IC328GKU1M2WGA
CABLE, FLAT, 8P, 24AWG; OEM P/N: 190701-001
AP_TYGGW85HI0YTS9D1P1ZHJB
JUMPER, 22AWG, INSUL, 7MM; OEM P/N: 135091-070
AP_B8P01MZMW1SDCQFP2UYG8R
FUSE CLIP, 5MM; OEM P/N: 178548
AP_5WDCT5EULSBVHUM76WALB1
INDUCTOR, LM4532, 1UH; OEM P/N: 178370-1R0
AP_5QEHZ1G4QGPOSB0QPI7378
FUSE, 5X20MM, SLO-BLO, 3A; OEM P/N: 263041-3000
AP_UUKA4IEIDOP7D2K7I6W5JL
RESISTOR, 20 OHM, FUSING, 1/4W; OEM P/N: 130102-200
AP_F6A256CS6TJRYAGNEQP4X2
THERMISTOR, 20K; OEM P/N: 177557
AP_MBUNT370L7AS204UWYXQGV
POT, DUAL, 10K, DETENT; OEM P/N: 185173
AP_ZGSLP4EEV04XO358CJPVY6
RESISTOR ARRAY, 1.0K, SMT, 4 POS, 5%; OEM P/N: 186433-1024
AP_VT5N5YYQCBANUGTPGMHIET
RESISTOR ARRAY, 3.9K, SMT, 4 POS, 5%; OEM P/N: 186433-3924
AP_F6KSUV10ANV4GEULJ6HQ2Y
RESISTOR ARRAY, 1.0M, SMT, 4 POS, 5%; OEM P/N: 186433-1054
AP_HYY1ZP5QDX8FSD9ULF8MB1
RESISTOR ARRAY, 300 OHM, SMT, 4 POS, 5%; OEM P/N: 186433-3014
AP_RW4FW1LNTXWMRE99PMDN6K
RESISTOR ARRAY, 100K, SMT, 4 POS, 5%; OEM P/N: 186433-1044
AP_S5IBSBECUON6ORSQ5DL2QM
RESISTOR, 100 OHM, FUSING, 1/4W; OEM P/N: 121243-1211015
AP_ZXUIZ1TLI9EY63XM7FWZTJ
CERAMIC RESONATOR, 8MHZ; OEM P/N: 175627
AP_Z9ZZ9H982AZYYF0IXVCFN3
CAPACITOR, .033UF, 0805, X7R, 50V, 10%; OEM P/N: 133623-333
AP_8E0UFNIAR6E7YSKYOKSNU8
CAPACITOR, 4700UF, EL, BP, 85C, 50V, 20%; OEM P/N: 187394
AP_Z1YCDTUHK819L21ELKPF61
CAPACITOR, .10UF, 0805, Y5V, 25V, 80%; OEM P/N: 133624
AP_QLP3HIGPAZE5OS070PC3I6
CAPACITOR, 4700UF, EL, 85C, 25V, 20%; OEM P/N: 170216
AP_R06WBY2FMD2PE5KHU7RP62
CAPACITOR, 2200UF, EL, 85C, 20%; OEM P/N: 185929-222E
AP_72H5AUIE7VYS7S6UNESMFB
CAPACITOR, 10UF, EL, 20%; OEM P/N: 137126-100
AP_ZC9D0EUJS6HTMD6DXFU6DX
CAPACITOR, 1000PF, 0805, X7R, 50V, 10%; OEM P/N: 133623-102
AP_HKAPT6YLREVVU19TBGVHLP
CAPACITOR, .01UF, 0805, X7R, 50V, 10%; OEM P/N: 133623-103
AP_3BARNE5RZSSCKOJABZTX51
CAPACITOR, 3300PF, 0805, X7R, 50V, 10%; OEM P/N: 133623-332
AP_MAX9VA7OW8Z3LPCN0CVCLM
CAPACITOR, 100PF, 0805, COG, 50V, 5%; OEM P/N: 133622-101
AP_70RFTR3S2JKE0TYE7KCKEY
CAPACITOR, .047UF, BOX, 85C, 63V, 5%; OEM P/N: 137127-473
AP_TVBPYJ8ZVF1LTKJ33JYEVH
CAPACITOR, .027UF, BOX, 85C, 100V, 5%; OEM P/N: 137127-273
AP_B6JJ36UZRUHWZLV7DK050I
CAPACITOR, 330PF, CER, 10%, 50V; OEM P/N: 140564-331
AP_GGU5X7WT68OJXCRDSIPSOH
CAPACITOR, .39UF, BOX, 85C, 50V, 5%; OEM P/N: 137127-394
AP_J5TM6B32MTGSZ06PYXCHV9
CAPACITOR, .0047UF, BOX, 85C, 100V, 5%; OEM P/N: 137127-472
AP_RAN7ZN8LG7GKBRYI0PM5XM
CAPACITOR, .022UF, BOX, 85C, 100V, 5%; OEM P/N: 137127-223
AP_ET2S30E2CVKQVB1A1HR1HT
CAPACITOR, .0022UF, BOX, 85C, 100V, 5%; OEM P/N: 137127-222
AP_OR6BL7X4RSDEA0OCSP6KU8
CAPACITOR, .0056UF, BOX, 85C, 100V, 5%; OEM P/N: 137127-562
AP_F608H1BENTZ1VRVYA78HLK
CAPACITOR, .0018UF, BOX, 85C, 100V, 5%; OEM P/N: 137127-182
AP_DOV7TF4KAPMGCR1HX05FCZ
CAPACITOR, .068UF, BOX, 85C, 50V, 5%; OEM P/N: 137127-683
AP_O24E01D6VCBE6DL3GIPP32
CAPACITOR, .039UF, BOX, 85C, 100V, 5%; OEM P/N: 137127-393
AP_QS76VDR0Z93DK6IPRZJDOA
CAPACITOR, 27PF, 0805, COG, 50V, 5%; OEM P/N: 133622-270
AP_WBAFC0SZWRCMLR8GL67PFR
CAPACITOR, .15UF, BOX, 85C, 50V, 5%; OEM P/N: 137127-154
AP_WYLGOYPZXPVW190UJO8UF3
CAPACITOR, .018UF, BOX, 85C, 100V, 5%; OEM P/N: 137127-183
AP_LEB1ZEBR5SRPAL95LYRRH7
CAPACITOR, 1.0UF, EL, 20%; OEM P/N: 137126-1R0
AP_DCUV2GHK30XYPOCRDKSSKG
CAPACITOR, 10UF, EL, 85C, 25V, 20%; OEM P/N: 149947-100
AP_XOK3OMXMSJMRMDLCCJWK0Z
CAPACITOR, .1UF, BOX, 85C, 50V, 5%; OEM P/N: 137127-104
AP_367NAFUF3DUGQ021V133T3
CAPACITOR, .082UF, BOX, 85C, 50V, 5%; OEM P/N: 137127-823
AP_8ROL9EONCFVSJ7GX4FPZ6E
CAPACITOR, 680PF, MONO, COG, 50V, 5%; OEM P/N: 140564-681
AP_9RNY9LKB8QXKKXS2HKEGYT
CAPACITOR, .056UF, BOX, 85C, 63V, 5%; OEM P/N: 137127-563
AP_MVQGHEHBFX1367IZD9WA14
CAPACITOR, .0027UF, BOX, 85C, 100V, 5%; OEM P/N: 137127-272
AP_MPMCHNU0XG6R46QN022C0F
CAPACITOR, .22UF, BOX, 85C, 50V, 5%; OEM P/N: 137127-224
AP_IYGU17TLITYTDA76Q2P48A
CAPACITOR, .033UF, BOX, 85C, 100V, 5%; OEM P/N: 137127-333
AP_GGYZ7LMGA98RY4BAPQCZOU
CAPACITOR, .001UF, BOX, 85C, 100V, 5%; OEM P/N: 137127-102
AP_68137Z50Q7ZFVOIBGFD9LY
CAPACITOR, 100UF, EL, 105C, 16V, 20%; OEM P/N: 139734-101
AP_1HT6WXQ5QJS7G3R9LO27N4
CAPACITOR, 1UF, 1206, Y5V, 16V, 80%; OEM P/N: 173383-105
AP_SWTI39ZR8PO547T0KZW92G
CAPACITOR, 270PF, 0805, X7R, 50V, 10%; OEM P/N: 133623-271
AP_RJSHME07YSB5IHQ1PPMTT4
CAPACITOR, .12UF, BOX, 85C, 50V, 5%; OEM P/N: 137127-124
AP_6WUV0N8PHQ5WQZ1F3LNAEL
CAPACITOR, .0033UF, BOX, 85C, 100V, 5%; OEM P/N: 137127-332
AP_N6Z5QA6A7EHDELVJ9V2N6C
CAPACITOR, .012UF, BOX, 85C, 100V, 5%; OEM P/N: 137127-123
AP_RI55MILF7D8UIOVO3TE4QB
CAPACITOR, .18UF, BOX, 85C, 50V, 5%; OEM P/N: 137127-183
AP_AMDDKDO7V1HW7Z692YHTCG
CAPACITOR, 4.7UF, EL, 20%; OEM P/N: 137126-4R7
AP_V8Q9NPEUMFJWNBA27IOV9D
CAPACITOR, .0047UF, DISC, 60C, AC; OEM P/N: 149016
AP_9SQ425R5VIER14K3K32HNH
CAPACITOR, 22UF, EL, 20%; OEM P/N: 137126-220
AP_DSLFJ9LV5NHI0WLATYW2WC
RESISTOR, 10.0K, CHIP, 0805, 5%; OEM P/N: 133626-1035
AP_2CDRYRV4CEE67J3BXMJ21V
RESISTOR, 20K, CHIP, 0805, 5%; OEM P/N: 133626-2035
AP_ZHS80UXIS0CHLFOWWROIOB
RESISTOR, 1M, CHIP, 0805, 5%; OEM P/N: 133626-1055
AP_Q6MOBFZ4G6L03E9C04AJUH
RESISTOR, 1.00K, CHIP, 0805, 1%; OEM P/N: 133625-1001
AP_MIBDLARVWLNQWYFOR938HB
RESISTOR, 100K, CHIP, 0805, 5%; OEM P/N: 133626-1045
AP_T7PNGH20SE1497HY0HL6AV
RESISTOR, 8.25K, CHIP, 0805, 1%; OEM P/N: 133625-8251
AP_LU4L2KJNHNO0I6694ZTULY
RESISTOR, 4.42K, CHIP, 0805, 1%; OEM P/N: 133625-4421
AP_4GPNOV212AINTNT1B6WRCA
RESISTOR, 499 OHM, CHIP, 0805, 1%; OEM P/N: 133625-4990
AP_9S03SXFQD5MGVTQ1MF2WUR
RESISTOR, 10 OHM, CHIP, 0805, 5%; OEM P/N: 133626-1005
AP_6XGU551ZJOOFTHUP0PWDEE
RESISTOR, 6.81K, CHIP, 0805, 1%; OEM P/N: 133625-6811
AP_SP8ACM0C6I9R2W0GPE2B79
RESISTOR, 2.00K, CHIP, 0805, 1%; OEM P/N: 133625-2001
AP_Q2SEXZKG1G3QHC0XTWK45V
RESISTOR, 4.02K, CHIP, 0805, 1%; OEM P/N: 133625-4021
AP_ICFHC65T5JJEBMBLC0KC9T
RESISTOR, 44.2K, CHIP, 0805, 1%; OEM P/N: 133625-4422
AP_B7WYZEQBVIDU0UXAB6X0IL
RESISTOR, 1.82K, 0805, 1/10W, 1%; OEM P/N: 133625-1821
AP_9OJ7MWWL6V4TS8EJ575Q6O
RESISTOR, 14.0K, CHIP, 0805, 1%; OEM P/N: 133625-1402
AP_1JCZBBPUEPKDJ0ZK2ZOQEL
RESISTOR, 1.50K, CHIP, 0805, 1%; OEM P/N: 133625-1501
AP_ZE2IUCQ4KJRKG8VOOG1CGL
RESISTOR, 3.01K, CHIP, 0805, 1%; OEM P/N: 133625-3011
AP_DFKR8E8N7EVR9XY6BDHFGM
RESISTOR, 20.0K, CHIP, 0805, 1%; OEM P/N: 133625-2002
AP_ZOM8GOZEPCKR5QI4V1OF35
RESISTOR, 301 OHM, CHIP, 0805, 1%; OEM P/N: 133625-3010
AP_AUQGCHBQNYZ31KHJ7T7XD9
RESISTOR, 127K, 0805, 1/10W, 1%; OEM P/N: 133625-1272
AP_DF13O2NJSS0HE77XOGI6VE
RESISTOR, 19.1K, 0805, 1/10W, 1%; OEM P/N: 133625-1912
AP_DOOMXV6DR3BEA2T5619A62
RESISTOR, 53.6K, 0805, 1/10W, 1%; OEM P/N: 133625-5362
AP_U6YYVPNPUL1RBOOMDBB2AO
RESISTOR, 10.0K, CHIP, 0805, 1%; OEM P/N: 133625-1002
AP_6JNYMCG62LHFWWXIY7QH5L
RESISTOR, 1.40K, CHIP, 0805, 1%; OEM P/N: 133625-1401
AP_KEM3KAE7VDYZMQW2ZTRAOV
RESISTOR, 200K, 0805, 1/10W, 1%; OEM P/N: 133625-2003
AP_95I8AA655ECVY0VTTKOTIW
RESISTOR, 1.10K, 0805, 1/10W, 1%; OEM P/N: 133625-1101
AP_SJQIM95Y2EO78AMNFFPUMH
RESISTOR, 25.5K, 0805, 1/10W, 1%; OEM P/N: 133625-2552
AP_QUM4LO4DAU2YTLEO60B5MC
RESISTOR, 12.7K, 0805, 1/10W, 1%; OEM P/N: 133625-1272
AP_8CYUDKESNI121X4O65WNWU
RESISTOR, 23.7K, 0805, 1/10W, 1%; OEM P/N: 133625-2372
AP_643DIAXJWT70P0ECV4I8GY
RESISTOR, 1.47K, 0805, 1/10W, 1%; OEM P/N: 133625-1471
AP_GNY0FBO07WF4V280G1X60R
RESISTOR, 16.5K, CHIP, 0805, 1%; OEM P/N: 133625-1652
AP_V17J9KRX06WJBDVRYI7R5E
RESISTOR, 49.9K, CHIP, 0805, 1%; OEM P/N: 133625-4992
AP_6YETZPW08ME55Y6AJLHBP0
RESISTOR, 4.22K, 1206, 1/8W, 1%; OEM P/N: 124894-4221
AP_NJ69S2EG65YZ4ETROBI01S
RESISTOR, 3.65K, 1206, 1/8W, 1%; OEM P/N: 124894-3651
AP_ORRML8UNKOCV7G4JJ4R043
RESISTOR, 1.27K, CHIP, 0805, 1%; OEM P/N: 133625-1271
AP_JWU0POD01ZB84J74FEWWJC
RESISTOR, 61.9K, CHIP, 0805, 1%; OEM P/N: 133625-6192
AP_LNJT3J5303SJBKO14NTDZY
RESISTOR, 332K, CHIP, 0805, 1%; OEM P/N: 133625-3323
AP_XRT3IKX80W2AHY4T5MS2AJ
RESISTOR, 162K, CHIP, 0805, 1%; OEM P/N: 133625-1623
AP_M1TP9BQQM4WU08PE3H2KUP
RESISTOR, 27.4K, CHIP, 0805, 1%; OEM P/N: 133625-2742
AP_GGAKZVI4UQP1R9079EI4RO
RESISTOR, 150K, 0805, 1/10W, 1%; OEM P/N: 133625-1503
AP_L0GPZXQZ7UTI9YGRQEZXJK
RESISTOR, 10M, CHIP, 0805, 5%; OEM P/N: 133626-1065
AP_IHYDLCXLBC45KAWKUTYFIJ
RESISTOR, 200 OHM, CHIP, 0805, 5%; OEM P/N: 133626-2015
AP_XUZ7XR080P2N8CGPTL1U3R
RESISTOR, 75 OHM, CHIP, 0805, 5%; OEM P/N: 133626-7505
AP_BRD2K437LJUJO9C9X1CTTY
RESISTOR, JUMPER, CHIP, 0805; OEM P/N: 133627
AP_NXR763SZ9IAI3CQNVHTKIX
RESISTOR, 220 OHM, 0805, 1/10W, 5%; OEM P/N: 133626-2215
AP_IX33VP0Q35VXV8T065VMNJ
RESISTOR, 5.1 OHM, 1206, 1/8W, 5%; OEM P/N: 124895-5R15
AP_3BNYL2OZXTD6166QB6OORG
RESISTOR, 33.2K, CHIP, 0805, 1%; OEM P/N: 133625-3322
AP_CJ5X6JJNL4R5A1NVKZNIOL
RESISTOR, 15.8K, CHIP, 0805, 1%; OEM P/N: 133625-1582
AP_VHY9BVA23V93TQ5FMKGWXQ
RESISTOR, 24.3K, CHIP, 0805, 1%; OEM P/N: 133625-2432
AP_LH306YM7PS1YA8OX4K5TVI
RESISTOR, 73.2K, CHIP, 0805, 1%; OEM P/N: 133625-7322
AP_ON2YJDNDAXQBZHYISTBX66
RESISTOR, 2.21K, CHIP, 0805, 1%; OEM P/N: 133625-2211
AP_7UJWY9Y24UBXHK5HMFFSM7
RESISTOR, 2.74K, 0805, 1/10W, 1%; OEM P/N: 133625-2741
AP_11K1QBOWQ2EL6001UZ9OLQ
RESISTOR, 68.1K, 0805, 1/10W, 1%; OEM P/N: 133625-6812
AP_OSNI0KLWKIY7L4S79MHGUW
RESISTOR, 38.3K, 0805, 1/10W, 1%; OEM P/N: 133625-3832
AP_739VFC6HFNENKFN3U5ROMS
RESISTOR, 100K, 0805, 1/10W, 1%; OEM P/N: 133625-1003
AP_71WD99L9Z7SPUOFIDMP2GP
RESISTOR, 21.0K, 0805, 1/10W, 1%; OEM P/N: 133625-2102
AP_1Z324JF01SL15Y4XJL08XF
RESISTOR, 2.32K, 0805, 1/10W, 1%; OEM P/N: 133625-2321
AP_X5693PTHEDHYLYFVSHDZTG
RESISTOR, 78.7K, 0805, 1/10W, 1%; OEM P/N: 133625-7872
AP_MHZBJZ66EB9AIY3CCPXRSV
RESISTOR, 1.33K, 0805, 1/10W, 1%; OEM P/N: 133625-1331
AP_9CB476GLGVL9N048704OVF
RESISTOR, 93.1K, 0805, 1/10W, 1%; OEM P/N: 133625-9312
AP_80IP2D0TQGJ7EKTL7WPXM3
RESISTOR, 200K, CHIP, 0805, 5%; OEM P/N: 133626-2045
AP_93LZ69IZ0908CFKWQP2APP
RESISTOR, 9.1K, CHIP, 0805, 5%; OEM P/N: 133626-9125
AP_V8F0JBOXN0EOEDPEZH1W1A
RESISTOR, 39 OHM, 1206, 1/8W, 5%; OEM P/N: 124895-3905
AP_8XVZZQXKRK2QZFBLLGWKIL
RESISTOR, JUMPER, CHIP, 1206; OEM P/N: 124896
AP_8AWL7FQ66DO8TPO10CMECC
RESISTOR, 1.00K, 0805, 1/10W, 5%; OEM P/N: 133625-1025
AP_BB1K6WWP6X0QDM092I5MMX
BASS MODULE WOOD ENCLOSURE CABINET
AP_W6J2NUVJO0SX1T5FCEYLRA
AMPLIFIER SUBASSEMBLY CHASSIS
AP_OOSDM9HF5K3E2MQZ8OZDK6
MAIN PCB INSULATOR / SAFETY BARRIER
AP_PB6U04B59HEV09P1YYPWZY
AC INPUT SAFETY COVER
AP_OH2JQ9UD98LGY4EUBIM1EC
VOLTAGE SELECT SWITCH, 115/230V
AP_CBSNBWFJJH93OONJXPE7KV
BRACKET, ADAPTOR; OEM P/N: 172287
AP_VCBAQ4LL5IMA24OYXZRLC3
PLATE, SPRING; OEM P/N: 172281
AP_BERS9FNS869DU76GT1SJPE
CUSHION, TRANSFORMER; OEM P/N: 176169
AP_CDGJKJC24K89N9SPOG3JQJ
GASKET, CONNECTOR, COVER; OEM P/N: 186845
AP_TTVG0HZ2M5IFYZCTMTLEWX
GROMMET, BASE PLATE; OEM P/N: 172295
AP_8757I3LIHM4282P7SDUGED
GASKET, 6.5 IN WOOFER; OEM P/N: 104794-08
AP_BO59C9RWZKUK6DSV9KN4AK
INTERNAL AC MAINS HARNESS
AP_H4A1K7G8KAPEUG17KJPF3K
GASKET, TAPE; OEM P/N: 175548
AP_YV3GSYHYF948A1TDO0C2MD
INTERNAL TRANSFORMER SECONDARY HARNESS
AP_7I0C4NOSCSNXQ0O6SEQAF8
PORT, BOTTOM, BLACK; OEM P/N: 173312-1
AP_LWRZ38AGDYEWWYEDILHOZ3
INTERNAL SATELLITE OUTPUT HARNESS
AP_LT5RCN2O4BALR33TCB0V6T
PORT, BOTTOM, WHITE; OEM P/N: 173312-2
AP_BAWNBQB9QTVRKUWA5CE8C5
GROUND BOND WIRE ASSEMBLY
AP_NW8B25R33FKSWS9VLHG4Y2
PORT, FLARE, 1.56 IN ID; OEM P/N: 189822-001
AP_3KCGKEAS6TGP9R14JHAAS5
EMI SHIELD / FOIL ASSEMBLY
AP_1WLXPXPZFIKBE0ARMPE7PG
CAP, PORT, BLACK; OEM P/N: 173310-1
AP_IFWUXSK2CPBVY4STQLEGAU
THERMAL INTERFACE PAD, POWER AMPLIFIER
AP_UNP9HNWLS4BHM6OLAXIZIP
CAP, PORT, WHITE; OEM P/N: 173310-2
AP_EBPBXBIXWQ3MDQVBSFECAV
HEATSINK INSULATOR, POWER DEVICE
AP_0QPCNFD815J5U2PUG5886X
PORT SCREEN; OEM P/N: 145325
AP_2MOJFSDY9GAKG7ELJ1EOHN
GASKET, TAPE, FOAM, PCB; OEM P/N: 174676
AP_UTXMD84PH8J19LTURTGW11
TAPE, FOAM, 2 IN; OEM P/N: 134936-020
AP_ZQTVV9KEUMMD85ZIEVK21O
FOAM TAPE, 8 IN; OEM P/N: 134936-080
AP_16ZRIGKZ1OOC4VONXF9YD9
FOAM, ACOUSTIC, DIECUT, W/SCREEN; OEM P/N: 178714
AP_MSJL4R8XBIP2GU9OC70M4R
H-RING, SEAL; OEM P/N: 178710-01
AP_YP32AB755CXYXUGONQX674
SNAP RING, CUBE; OEM P/N: 313536-001
AP_DB0O71OYY8FI14L58XZT0F
NAMEPLATE, BLACK; OEM P/N: 178725-01
AP_7GZBVA63HA4CF4LQC1Z59D
NAMEPLATE, WHITE; OEM P/N: 178725-02
AP_JFVDT12PFXPJXYEPRLLFB9
KNOB, TONE CONTROL, WHITE; OEM P/N: 172289-1
AP_LKQJV0JHPMUGNRD6TV303C
KNOB, TONE CONTROL, BLACK; OEM P/N: 172289-2
AP_LWE58PKBMEO5ETX1VJV1MR
LATCH, COVER; OEM P/N: 172294
AP_0SDSBVSSHDBJFNYWLBZ9CY
BUMPER, RECESSED, FOOT, .88 IN; OEM P/N: 142839
AP_PID25GG48HY48NBH9STUOA
GROMMET, ANTI-BUZZ; OEM P/N: 183891
AP_Q914VJAILNO4QGL5L7VACV
FOOT, 2.03 X .06; OEM P/N: 183621
AP_M8K2UWMVIJ0E4BAQU4K4V4
SCREW, TAPP, 8-11X1.25, PAN, XRC/S; OEM P/N: 172672-20
AP_I0LCU8ZESHHW6M4PXH4O84
SCREW, TAPP, 8-11X.75, PAN, XRC/SQ; OEM P/N: 172672-12
AP_VAAQU95OBJJM84ZTBHICME
SCREW, HI-LO, 6X3/8, PAN HEAD; OEM P/N: 147516-06
AP_JI4RQBU1QJVXIJZNBIFCDR
SCREW, HILO, 6-20X.625, PANHD, XRC; OEM P/N: 172779-10
AP_C8CRJ406UW55QOT6G8VTO4
SCREW, TAPP, 4-16X.375, PAN, XREC; OEM P/N: 181621-06
AP_MDASWG4PU807XTVRM888YU
ANCHOR, SCREW, #6, PLASTIC; OEM P/N: 186207
AP_E2D16GCPP9LFZRN8XLBKUU
SCREW, SHIPPING; OEM P/N: 186273
AP_NBCUOHBDHTP5YFOCS4N0UO
LINE CORD, 120V, US; OEM P/N: 146999
AP_KW8305TVDZNTDD4NNGBKZQ
LINE CORD, 230V, UK; OEM P/N: 134725
AP_0UQSIQYT55CXW1ER9QCBO7
LINE CORD, 230V, EU; OEM P/N: 148203
AP_W3QSP3RG220HRT1ZES8CO8
LINE CORD, 240V, AU; OEM P/N: 134726
AP_PV3IT7MDAYFHBUIL8U7PL9
ANTENNA, FM, DIPOLE, US, 75 OHM; OEM P/N: 148589
AP_SZP2V09YKTIIELNJLCAK5L
ANTENNA, FM, DIPOLE, PAL CON, EURO; OEM P/N: 143185
AP_F5PXPUXTSPT6RHWLB30NSC
ANTENNA, AM, LOOP; OEM P/N: 178935
AP_CIL4NRY2TG5I4ZJYAB4IIB
MAGAZINE, 6 DISK; OEM P/N: 187575
AP_XVOC4Q4I380Q4PCGP6E73J
BATTERY, AA SIZE; OEM P/N: 147538
AP_HGVYTYC6QXZGL16W6TJUBW
CD, TEST, LIFESTYLE HOME THEATER; OEM P/N: 193160
AP_DHHAW6JOYO0AZ4E6EE7CNU
CD, LIFESTYLE MUSIC SYSTEM; OEM P/N: 183768
AP_3QKW44BZ8Q2P7I1YIB45X1
MANUAL, OWNER'S, LS30; OEM P/N: 193147
AP_HIO3MG51NELG0QUNGM3R9L
SHEET, QUICK START; OEM P/N: 193149
AP_G7XXJK1JR0ALBCXFV04L0E
WARRANTY SERVICE CENTER LIST; OEM P/N: 187981
AP_IBAIF4URT5ISKI2EH6O81F
WARRANTY CARD, US; OEM P/N: 181357
AP_LUIN8ZLP8LMNI9U3ZZZIMY
WARRANTY CARD, MULTI-LANGUAGE; OEM P/N: 181460
AP_30S7W2W5ZUQ49N5E6YRK2H
BROCHURE, ALL PRODUCTS; OEM P/N: 188898
AP_CJLMB7G7O50FD2SH7PFT7W
CARTON, LS30, US; OEM P/N: 188005-002
AP_L7JQ8KJ47SXJ73EN2K3P9S
CARTON, ACCY, CD20 DISP; OEM P/N: 188009-001
AP_H0WLEU5QKAX5GQIB1ZHE3I
CARTON, D/C, CD20 DISP, LS25; OEM P/N: 188020-001
AP_OP1PV13HT4S4SXU4A43VFM
D/C CARTON; OEM P/N: 172282
AP_85EJ6ZC9RUVLMN4LJURNRK
PACKING, TOP PAD, EPS, DISPLAY PK; OEM P/N: 186424-001
AP_AIFBS1ETFEWQ8RBV00K18I
PACKING, TRAY, EPS, LS20 DISP PK; OEM P/N: 186425-001
AP_GOXVUW7KF4TZ1BTMH6HICG
PACKING, D/C, FILLER, D/W, LS20; OEM P/N: 188006
AP_YAK7URYV9BIXKUER72HAKE
PACKING, FILLER, ACCY, CD20; OEM P/N: 188010
AP_HA01C3IHXOLVUVX1476TGY
PACKING, INSERT, CARD, CD20; OEM P/N: 188022
AP_TTSAE1O8JA1QYPJLK1L08K
PACKING, CORNER POST; OEM P/N: 148044
AP_C37P3M5TSAIBYXMNTN3FT8
PACKING, INSERT, EPS; OEM P/N: 172279
AP_YWTBI7PZ7ZASDPMJQ9UWBC
ENVELOPE, SHIPPING; OEM P/N: 180005
AP_GIHDFGJ8IWM40ZIVIVNJL7
BAG, POLY, 4X6X2 MIL; OEM P/N: 143393
AP_96QE0VA4PITOIWG2N1KRXT
BAG, POLY; OEM P/N: 103351
AP_9NN7Y95690I1FTPEEZUE3I
BAG, POLY; OEM P/N: 137847
AP_R9CS3LDTGLWA0KADJUF6K4
SERIAL NUMBER LABEL
AP_74PEL2PK16Y7RB2J94RS75
MODEL / RATING LABEL, 120V
AP_VUTACAWWV0Z5FZDRY05P1R
MODEL / RATING LABEL, 230V
AP_2R71CPTB5RC0A5BHU9XIWI
MODEL / RATING LABEL, DUAL VOLTAGE
AP_EG4AGBO7ZII6SKYZIY9F29
VOLTAGE SELECTOR LABEL
AP_O8TSF922AZ4OSUEPOJ3XTV
SAFETY / CAUTION LABEL
AP_224CY8E7O7NX39JYREJHNX
WIRING IDENTIFICATION LABEL SET
AP_0A3YWYIIBS9266AXMTTJTG
CARTON PRODUCT IDENTIFICATION LABEL
AP_XEBXR9CI2NQBOOGVNPHPXL
POLYBAG WARNING LABEL
AP_GRCD2CDKL01D95EVWOPFBG
SERVICE MANUAL, AM-30P; OEM P/N: 194382
AP_TB1C1PAKX9VQVCK83MCDIX
SERVICE MANUAL, POWERED ACOUSTIMASS 30; OEM P/N: 199401-TG1
AP_4N2YTKAYDLEA0X41SKL7UW
DIGITAL BASS BOX TEST CABLE; OEM P/N: 199527
AP_JMWVO9HF6CW7Y1DVMEAYAQ
RS-232 SERVICE ADAPTER CABLE
AP_MJGVICRX9HDDFY8XN81C5F
SERVICE TEST LOAD, 8 OHM / 50W
AP_K4P1I86M4Z00ARUWRJBYXJ
SERVICE AUDIO TEST CABLE, RCA
AP_9M8YE0J8DLMNQNN68CDUBT
SERVICE FIXTURE, BASS MODULE AIR-LEAK TEST
AP_S44LRGYDN5MJA1ZY48OUFQ
SERVICE FIXTURE, TONE-CONTROL TEST
Repair, service & parts, for your Bose Acoustimass 30
- 1 Repairs are performed on a best-effort basis. Acme Revival utilizes a network of sophisticated technicians and engineers with diverse service offerings; despite this, factors that influence the repair outcome may ultimately prove unsuccessful. Acme Revival makes no claim that it can, guarantee a repair before your device is sent in for diagnostic evaluation; even then, repair and diagnostic work are not mutually exclusive. Despite well-intentioned quoting, repairs may still prove unsuccessful.
- 2 Parts known to Acme Revival via Acme’s Neural Network and documented discovery. These parts may not represent OEM cataloging nor does Acme Revival guarantee display accuracy. Always check with Acme’s Help Desk to ensure availability and accuracy. Parts may not be in new condition, may be unavailable, discontinued, or not offered for independent sale.
