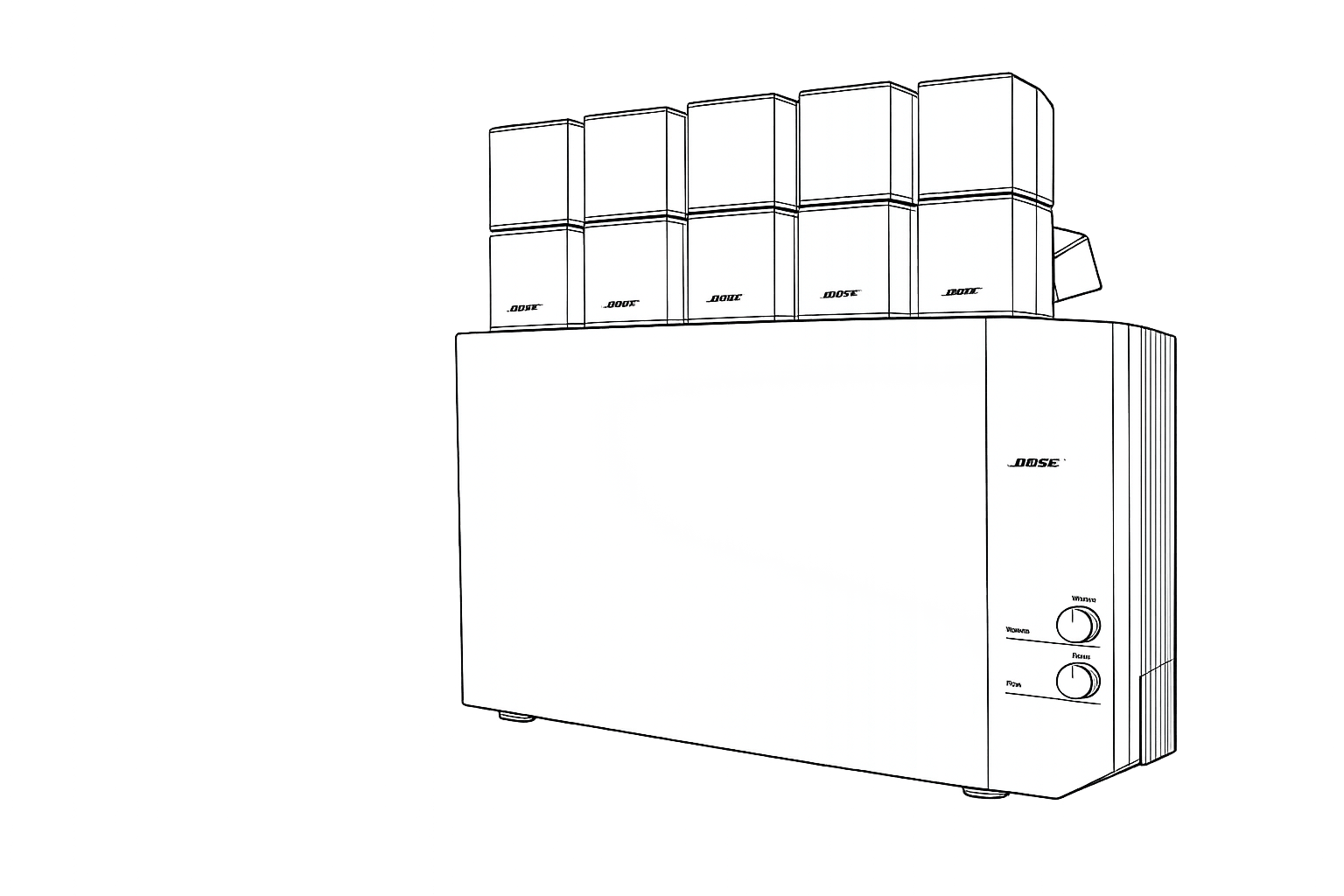

Repair, Service & Parts for the Bose Acoustimass 25 Home Audio Speaker System

Repair
solutions,
in network.

Acme Revival connects your Bose Acoustimass 25 with a nationwide network of skilled electronics technicians built to fix what manufacturers won't. Start online, ship it in, and track every update and outcome in one transparent Service Dashboard.

Repair

$156.⁰⁰

FLAT-RATE REPAIR (LABOR)

90-Day Warranty No-Fix Repair Guarantee

Revival’s flat-rate repair service is a best-effort attempt to diagnose and repair the reported issue. The advertised price covers technician labor only and will not increase.

If replacement parts are required, we’ll provide a separate quote for your approval before proceeding. If we can’t complete the repair, your labor charge will be refunded. A separate $25 Repair Network Service Fee applies, along with return shipping & handling. These charges are non-refundable.

Repairs may be limited by device condition, prior damage or modification, safety concerns, or unavailable manufacturer-controlled parts or resources.

Most Recent Repair Requests:

We’re still collecting data here.

² (Known) Parts List:

AP_MZB69ZR9X42IJLG9I3A7EJ

MODULE ASSY, AM-25P, DUAL; OEM P/N: 191170-631C

AP_2AJK6YIO4F392T8AKQN7QD

MODULE ASSY, AM-25P, 230V; OEM P/N: 191170-231C

AP_NKI11FI59NZ8Y1XO3U7DU7

MODULE ASSY, AM-25P, 120V; OEM P/N: 191170-131C

AP_AH6YHE2Q6N6JW7LDNYEPMU

PCB ASSY, AM-25P, 120/230V; OEM P/N: 190341-006

AP_DKD851DO8E964JR2KBOBGR

PCB ASSY, AM-25P, 230V; OEM P/N: 190341-002

AP_ZRADRF21OQYAM8S0ZRPHV1

PCB ASSY, AM-25P, 120V; OEM P/N: 190341-001

AP_1QC7LGNOUSVAU3KYYXTVKS

MAIN PCB, AM-25P, DUAL 120/230V VARIATION; OEM P/N: 190341-016

AP_4ARNIQA2ER5501NCAZ65TW

MAIN PCB, AM-25P, EURO 230V VARIATION; OEM P/N: 190341-012

AP_JM59KMMMXYZ4ZJ6CZYJISD

MAIN PCB, AM-25P, U.S. 120V VARIATION; OEM P/N: 190341-011

AP_DKJ74C1AOM46G8J69WA6MM

TRANSFORMER, 115/230V; OEM P/N: 182577

AP_9S8PKVGIG44H5AY2GSFX65

TRANSFORMER, AM-25P TURN-ON CIRCUIT VARIANT; OEM P/N: 172286

AP_V3T7D88NLUVN6KK7T5SJ1Z

SAT ASSY, BLACK; OEM P/N: 177904-19

AP_UL7QLD98VDPMGHZAXQRD4N

SAT ASSY, WHITE; OEM P/N: 177904-29

AP_047DLZNA10F5HY4ULFUSPW

WOOFER ASSY, 5.1/4"; OEM P/N: 143357

AP_F6K710EKJ3IX0DK2YLEJWB

TWIDDLER™, GASKETED, 50mm, SHIELDED; OEM P/N: 184473

AP_J03JDBHHW3DXZ48IYORYK6

AMPLIFIER PCB SUBASSEMBLY

AP_R64N8XLMQJ6KAMCWMYT63G

MAIN PCB SUBASSEMBLY

AP_BM2JJ46ZGUBR0L76O2FACR

HEATSINK/AMPLIFIER PCB SUBASSEMBLY

AP_GXP0M40L9CLRUVG4B5S8WR

POWER TRANSFORMER SHIELD ASSEMBLY

AP_3LTNOU3F9W38GR3G6SYJLV

CABLE PACK, R, L, C, WHITE; OEM P/N: 176201-4

AP_MU2V4JL15KWO3QEGT2345G

CABLE PACK, R, L, C, BLACK; OEM P/N: 180643-4

AP_AFDU1RL55MMK8U90V5N2B1

CABLE, SPEAKER, REAR, WHITE; OEM P/N: 176202

AP_D6KZIZBHZV5QMZW8X6128V

CABLE, SPEAKER, REAR, BLACK; OEM P/N: 180644

AP_JOGYLDLDESCDNMEVF6VEEB

CABLE, AUDIO INPUT; OEM P/N: 188694

AP_VDKQDUGZQ04YC3PP0W4JVX

LINE CORD, 120V, US; OEM P/N: 146999

AP_SNM7AJLNQ05LQ8MJELUQ2J

LINE CORD, 230V, UK; OEM P/N: 134725

AP_R42WT4Y4NGUAY0VXHOBIMC

LINE CORD, 230V, EU; OEM P/N: 148203

AP_PYGJVFQWP6NI1LDOOQA4ZN

LINE CORD, 240V, AU; OEM P/N: 134726

AP_IEHLN45XTDD06AMIB0DGS0

CABLE, RCA 6FT; OEM P/N: 181072-1

AP_8RSHE18BA5B16IQLWLHJ9M

GRILLE ASSY, SATELLITE, BLACK; OEM P/N: 175177-1

AP_YYEWDNGNL8L4V4B0INCYUR

GRILLE ASSY, SATELLITE, WHITE; OEM P/N: 175177-2

AP_H890H8777WOTIQJY3ASMM1

COVER, AM9P, REG, WHITE; OEM P/N: 172278-11

AP_S3YM6PFKY6HD0E3OYOPT6U

COVER, AM9P, REG, BLACK; OEM P/N: 172278-12

AP_1XIMHLTPEP8RIY9UTPDEO5

BASE PLATE; OEM P/N: 172288

AP_K9CHUWKOB3OPNYSK4Z7KWU

HEATSINK; OEM P/N: 172283

AP_FS2GKNDMOQQ1E5ZHYY55ES

PLATE, HEATSINK, METAL; OEM P/N: 172291

AP_KFZKWAMR3EVLUGHBI20QJF

PLATE, SPRING; OEM P/N: 172281

AP_D0858MXW0S8WIGGA1U87SX

BRACKET, ADAPTOR; OEM P/N: 172287

AP_D6710N3NT6G1GUP8C5Y877

HARNESS, WOOFER; OEM P/N: 172275

AP_8U8W6PJVI9IB967V7AK53T

CABLE, FFC, 16 POS.; OEM P/N: 191124-16

AP_DT5ETKYHSD07BQVA9RAZYS

CABLE, FLAT, 8P, 24AWG; OEM P/N: 190701-001

AP_O2EUUAX55TYJX77OYNAV6L

PIVOT, SATELLITE ENCLOSURE, BLACK; OEM P/N: 182604-1

AP_TWIIFVDTP7K50T5OY88TVI

PIVOT, SATELLITE ENCLOSURE, WHITE; OEM P/N: 141401-2

AP_L7YKW6QCV0DZI5Z15DQRML

CONN, BARRIER GLTN, 2 POS, BLACK; OEM P/N: 141405

AP_X5P911J0G16ORQK1J0A8WZ

CAP, PORT, BLACK; OEM P/N: 173310-1

AP_NQLILBZQ077JQNJL8VJHZ6

CAP, PORT, WHITE; OEM P/N: 173310-2

AP_MOMWEE4N80Z1CMWD67TB7D

PORT, BOTTOM, BLACK; OEM P/N: 173312-1

AP_T08ZWL77GTOHZPEGYMTALM

PORT, BOTTOM, WHITE; OEM P/N: 173312-2

AP_61XSZ8WVZF02Y4UX2ZXOHY

PORT SCREEN; OEM P/N: 145325

AP_C57LJF1X2KRQID13ED1VPO

ACOUSTIC MODULE CABINET / BASS ENCLOSURE

AP_KND9OWALUQFCQY90ZCUOSG

SATELLITE ENCLOSURE SHELL, BLACK

AP_MYG1XDLSDH772YVMCLPVA4

SATELLITE ENCLOSURE SHELL, WHITE

AP_37CXRIXTP7QPEJWAKBJHBX

INTERNAL ACOUSTIC DAMPING / ABSORBENT MATERIAL

AP_4NHCEPH9IQ0C3YGQ3E3G1L

INTERNAL BAFFLE / CHAMBER DIVIDER

AP_8X8R116XO7C248H9DSTI88

VOLTAGE SELECT SWITCH, 115/230V

AP_AMM4A29T5DDNR0TWOR87YH

POWER AMP, AUDIO, TDA7294; OEM P/N: 170156

AP_T0ZQ1HFUAZLF2AE98LWHT7

uC, SO-28, ST6225M6; OEM P/N: 193580-001

AP_QT6CDHWAS34RJHTWW8TW6K

uC, SO-28, ST6225M6; OEM P/N: 190782

AP_26YFIFZXLO0JU67UTDQ116

uC, SO-28, ST6225M6; OEM P/N: 190333

AP_G2HPA53UGNSDQE2KEE8WAP

VOLTAGE RESET CHIP, DS1233; OEM P/N: 181016-10

AP_VX6FO6YD2XIFNLFF3LGJ2L

44.2kΩ, CHIP, 0805, 1%; OEM P/N: 133625-4422

AP_ZGMZ17TTQGY1NG2VT08B8X

1.8kΩ, CHIP, 0805, 1%; OEM P/N: 133625-1821

AP_EKI54J4C4NIE79JWJ920TB

.39uF, BOX, 85, 50V, 5%; OEM P/N: 137127-394

AP_8Q1EP85RWBJFP4S570O9QN

.39uF, BOX, 85, 50V, 5%; OEM P/N: 137127-823

AP_F639XEPEK34OXXQ5WJ2B1O

EEPROM, 1KB, SERIAL, 59C11; OEM P/N: 147536

AP_FH4FV9XGO095MQD6BCFG1L

OPTO-TRIAC, MOC3063T; OEM P/N: 172297

AP_FMAD627QYXPPUCAXYE76L0

OPTO-TRIAC, PDIP-6, MOC3023T; OEM P/N: 190334-001

AP_QNSJPJPH1KZIOHTO5LWCFH

TRIAC, TO220; OEM P/N: 178807

AP_M3LN2EWCJSPYI36S6GD38L

DARL, P, TIP146T; OEM P/N: 172285

AP_Z006TPC5QAM8IKVKBQMQCH

DARL, N, TIP141T; OEM P/N: 172284

AP_YVGD2BQ41BQJYT5X18OR0A

VOLT REG, 37V, POS; OEM P/N: 137927

AP_I99IJP1QPT4XZ9WJH6IS5Z

VOLT REG, 37V, NEG; OEM P/N: 137928

AP_OWBQHQRARY1H2RZY0GXY9X

VOLTAGE COMPARATOR, LM339; OEM P/N: 187618-001

AP_FL61W10QJCTFYZBBCCKLMO

QUAD OP AMP, TLO74D, SOIC; OEM P/N: 186112

AP_PXP08RWKS1Z2E21Y43I9AM

VOLUME CNTRL, DIP-16, TC9213P; OEM P/N: 147622

AP_HCUMDKU5OHP5AEL6AMJOB8

OP AMP, POS, 36V, CA3280, DUAL; OEM P/N: 132591

AP_SY1LJW59PX1YHQWLIZPLGU

OP AMP, DUAL, SO-8, NJM2082M; OEM P/N: 146820

AP_5DN04AVBZQ6SGQ3CK5GJHL

DUAL COMPARITOR, SO-8, LM393; OEM P/N: 148584

AP_ZC3ZDE4S9CYMXN1L4OL7BV

OP AMP, QUAD, SO14, TL074BCDT; OEM P/N: 188953

AP_BSNNZTZHAM1RZ6CBAEMU8T

BRIDGE RECTIFIER; OEM P/N: 187611-001

AP_Q022M4SAPC8TT2ICTJH9TW

PNP, SMALL; OEM P/N: 119168

AP_ZSQMBSJWDG6SY603JN0O1U

NPN, TAPE; OEM P/N: 117921

AP_TWH66HVSFDHK6JELOF36OF

JFET, SOT, MMBF4392; OEM P/N: 134738

AP_0MDDSN5LJ4WNQTRRE8OUNV

BPLR, P, 50V, 150mA, SOT23; OEM P/N: 258007

AP_MSXRVAMK3QI9E2E445S4K8

BPLR, P, 55V, 150mA, SOT23; OEM P/N: 134743

AP_9MCPQ5G5IWV8USTP7OLSZV

PNP, (2SB560F); OEM P/N: 140349

AP_XRE3HWDGO7TM68OC3LCHRE

NPN, SOT, MMBT3904; OEM P/N: 146819

AP_TTNFKTF8SOATA1L25AMHEX

CONN, DIN, RTANG, 8 POS; OEM P/N: 176198

AP_MTUJFAG3ODO4AQPJI0OBQV

CONN, PHONO JACK; OEM P/N: 180567

AP_40C2O78M62R2476XQ858YQ

CONN, PHONO JACK; OEM P/N: 260382-001

AP_HDR4NV93EGBFXBTQM2INWT

CONN, HOUSING, AC, 2 POS, FEMALE; OEM P/N: 146563

AP_44CRPOIHCFXAH8GPO37YRG

CONN, HEADER, RTANG, JST 16 FEST; OEM P/N: 177258-16

AP_Q5AMHTFRZZILQ6SXB9T1C6

CONN, HEADER, RTANG, JST S2P-VH; OEM P/N: 190552-02

AP_T7KUIIWZ50KKO1N3P4F81B

CONN, HEADER, RTANG, 2.5mm; OEM P/N: 145402-08

AP_XQ8A2CU6ZMX1CQLDC7RK7T

CONN, HEADER, 5 POS.; OEM P/N: 178742-5

AP_518YXCMNUG51OXAGSP5F9B

HEADER; OEM P/N: 134290-05

AP_D5QCHNOUB3OCFT5FAYWPW9

FUSE, 5X20mm, SLO-BLO, 3M; OEM P/N: 263041-3000

AP_51JHCZ68OTH4TT3EIZWAW9

FUSE CLIP, 5mm; OEM P/N: 178548

AP_2OKYTKNASX1RPNKYGGOLT1

CRY, CER, RESONATOR, 8MHZ; OEM P/N: 175627

AP_LPGJGV6RZ8IHQV7UCDWC8W

INDUCTOR, LM4532, 1uH; OEM P/N: 178370-1R0

AP_WJSYM51AX2NO5ERD4ZHU02

10K, POT, DUAL, DETENT.; OEM P/N: 185173

AP_QJ3VVLTUYS5ZH3CZPLCZP8

20K, THERMISTOR, ERTD 3FHL 203; OEM P/N: 177557

AP_XQHBUMYYEWPIZQBPN5X1GT

4700uF, EL, BP, 85, 50V, 20%; OEM P/N: 187394

AP_MMRJI60KM1FB01OAZ5FBDR

4700uF, EL, 85, 25V, 20%; OEM P/N: 170216

AP_F23608U9OV80TK7YZKMZ5G

2200uF, EL, 85, 20%; OEM P/N: 185929-222E

AP_JLUZH71HE8RWIRIZ25YZYH

100uF, EL, 105, 16V, 20%; OEM P/N: 139734-101

AP_2C5LVX1QHTXJ89CIQZL8QI

10uF, EL, 85, 25V, 20%; OEM P/N: 149947-100

AP_VD2AORR56Q12W829KDPX0Y

22uF, EL, 20%; OEM P/N: 137126-220

AP_Q0UZS2VZVGAINTWTP9HI61

10uF, EL, 20%; OEM P/N: 137126-100

AP_GYJBODOCXI7H1P5IB9XN59

4.7uF, EL, 20%; OEM P/N: 137126-4R7

AP_ZL741SH2QQMG89TGVXP11O

1.0uF, EL, 20%; OEM P/N: 137126-1R0

AP_H7GL36N0QEHZZZUQHOLED2

.47uF, BOX, 85, 50V, 5%; OEM P/N: 137127-474

AP_LL5FHE8Y4UFU5CE4CK2MHI

.22uF, BOX, 85, 50V, 5%; OEM P/N: 137127-224

AP_9GKR4W5V4A01M5EAL3SDKJ

.12uF, BOX, 85, 50V, 5%; OEM P/N: 137127-124

AP_C34CKZY4TTAAX2FB272IUQ

.1uF, BOX, 85, 50V, 5%; OEM P/N: 137127-104

AP_Z7O2XR6M48IBQ9T18JXVTU

.082uF, BOX, 85, 50V, 5%; OEM P/N: 137127-823

AP_TCZWAMM0GWV30L4UKIB3P7

.056uF, BOX, 85, 63V, 5%; OEM P/N: 137127-563

AP_O4WCYA009CQYJB88E4B8D4

.033uF, 0805, X7R, 50V, 10%; OEM P/N: 133623-333

AP_3GXVLYYXBCSHC3OT5UTQRS

.022uF, BOX,85,100V, 5%; OEM P/N: 137127-223

AP_UN9EZ26SQNCBCJ5AJBERRK

.018uF, BOX, 85, 100V, 5%; OEM P/N: 137127-183

AP_V5BNZJP42MLQIDTTQE4V9G

.012uF, BOX, 85, 100V, 5%; OEM P/N: 137127-123

AP_RC3247HF35Y2D0VIKWUEUK

.01uF, BOX, 85, 100V, 5%; OEM P/N: 137127-103

AP_HN81PJQHSW5KXQCKIAZC3O

.01uF, 0805, X7R, 50V, 10%; OEM P/N: 133623-103

AP_MZN5CG7YCBQ9RO7AFR7CRD

.0082uF, BOX, 85, 100V, 5%; OEM P/N: 137127-822

AP_NP64NCUN9YEQ6GYFFSV1BV

.0056uF, BOX, 85, 100V, 5%; OEM P/N: 137127-562

AP_78VSU8WNZXSCI26J89EN3N

.0047uF, BOX, 85, 100V, 5%; OEM P/N: 137127-472

AP_X0GE4SLS1NWCI11R0MW6O6

.0047uF, DISC, 60, AC; OEM P/N: 149016

AP_54Z2XXFB6HEX4QWYR55D03

.0033uF, BOX, 85, 100V, 5%; OEM P/N: 137127-332

AP_1FDA50I0EENZAHIQFZWYJ0

.0027uF, BOX, 85, 100V, 5%; OEM P/N: 137127-272

AP_3UQCWJJKH8ZJ413QVV7L07

.0022uF, BOX, 85, 100V, 5%; OEM P/N: 137127-222

AP_2V2Z5NUIPRZYV515RGNBK6

.0018uF, BOX, 85, 100V, 5%; OEM P/N: 137127-182

AP_13F42SRJ4QUPJBE0HOPK9F

.0015uF, BOX, 85, 100V, 5%; OEM P/N: 137127-152

AP_1TLGPTUAEYNRZB0XDZXW69

.001uF, BOX, 85, 100V, 5%; OEM P/N: 137127-102

AP_RLAT8HE1JJWAKH6DFRHG8C

3300pF, 0805, X7R, 50V, 10%; OEM P/N: 133623-332

AP_LTH5UWN5MFARS3MH2ZGT65

1000pF, 0805, X7R, 50V, 10%; OEM P/N: 133623-102

AP_NKY9KV7C3JYX7WRP1VBRV9

680pF, MONO, COG, 50V, 5%; OEM P/N: 140564-681

AP_IZYZ6YPWUMMKTOB00TDLUN

470pF, CER, 10%, 50V; OEM P/N: 137269-471

AP_0DYVNYM0590AEB8QOI5T5H

270pF, 0805, X7R, 50V, 10%; OEM P/N: 133623-271

AP_5JDJMPPMACC514QD2Z4ECT

100pF, 0805, COG, 50V, 5%; OEM P/N: 133622-101

AP_0XWSBJ1SVYG465LK3XF8L8

27pF, 0805, COG, 50V, 5%; OEM P/N: 133622-270

AP_CSQ09HJU0RC4KASFGYM0YM

.10uF, 0805, Y5V, 25V, 80%; OEM P/N: 133624

AP_4RP80VDSXO7L1R4YNQ8BVX

1uF, 1206, Y5V, 16V, 80%; OEM P/N: 173383-105

AP_MUNG41893FZTRFV4QI9JNP

DUAL, SOT-23, BAV99; OEM P/N: 147239

AP_GNEIBJEVEHNKPANW9ANAA9

ZENER, 12V, 225mW, 5%, 1N5242; OEM P/N: 135247-5242

AP_RO3JSY0N4747OF1NLAN7CY

ZENER, 5.6V, 225mW, 5%, 1N5232; OEM P/N: 135247-5232

AP_ARWFJ8XLC98H1SEF4693AT

1N5402; OEM P/N: 170219

AP_V3K5B24BQWN772AYPZTGIR

ZENER, SOT23, 5%, 5.1V; OEM P/N: 135247-5231

AP_TYONOPC3XYZHXGEXRY5Z2D

1N4531, 5MM; OEM P/N: 136603

AP_P0MP66RYB022EEEXDW50B0

ZENER, 3.3V; OEM P/N: 135247-5226

AP_HESU014S5EA597RAZ99VD2

1.0KΩ, ARRAY, SMT, 4 POS, 5%; OEM P/N: 186433-1024

AP_SRZAWFKHPUVXKX2NK85NL9

3.9KΩ, ARRAY, SMT, 4 POS, 5%; OEM P/N: 186433-3924

AP_0ZH2RFVZSA33ZJWYEKLPVM

1.0MΩ, ARRAY, SMT, 4 POS, 5%; OEM P/N: 186433-1054

AP_YA5YT21D7OJ60FX3PXUJK0

300Ω, ARRAY, SMT, 4 POS, 5%; OEM P/N: 186433-3014

AP_UX3V93D9BJ57TFMZI9Z2IJ

100KΩ, ARRAY, SMT, 4 POS, 5%; OEM P/N: 186433-1044

AP_ULLSKVBU8LWHUVD9YXFHBR

20 OHM, FUSING, 1/4W; OEM P/N: 130102-200

AP_9MY6ZRYGS16L5H54UPW0QM

100 OHM, FUSING, 1/4W; OEM P/N: 121243-1211015

AP_IKSH1R0PMGV5I5HFBWKSY1

10M OHM SERVICE-BULLETIN RESISTOR; OEM P/N: 121243-1511065

AP_GN6QKHC98YOPP2EQ380W5X

10.0KΩ, CHIP, 0805, 5%; OEM P/N: 133626-1035

AP_2UD3YYLCJEYUH2T5HTLZY5

20KΩ, CHIP, 0805, 5%; OEM P/N: 133626-2035

AP_KW03QMT5WXOIFNI0P54NQS

1MΩ, CHIP, 0805, 5%; OEM P/N: 133626-1055

AP_EK25104VCX8J88USYCKLRH

1.00KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1001

AP_MGLG56ZJEQS1AC6I9UR95B

100KΩ, CHIP, 0805, 5%; OEM P/N: 133626-1045

AP_U5DF9EPB2HH3NXME9QAO6A

8.25KΩ, CHIP, 0805, 1%; OEM P/N: 133625-8251

AP_Z2KEZ03H5L145CAGIOVXBP

4.42KΩ, CHIP, 0805, 1%; OEM P/N: 133625-4421

AP_6GWL859D86CTL284VBBHE0

499Ω, CHIP, 0805, 1%; OEM P/N: 133625-4990

AP_DQPDJCTCSJ11H5Y2ZT8DAF

10Ω, CHIP, 0805, 5%; OEM P/N: 133626-1005

AP_423AEWM85HROPVG9YP7TZG

6.81KΩ, CHIP, 0805, 1%; OEM P/N: 133625-6811

AP_U5MW2K2LA4GIN6ZM8C3O3P

30.1KΩ, CHIP, 0805, 1%; OEM P/N: 133625-3012

AP_R8H0J48YEGZX3CHXUGHIJX

953Ω, CHIP, 0805, 1%; OEM P/N: 133625-9530

AP_KUYJAGDJ82CHHJ9CLAD4IE

24.3KΩ, CHIP, 0805, 1%; OEM P/N: 133625-2432

AP_6WA2MMHWKG1SH29UA2T0YY

12.1KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1212

AP_T8UM3XO5B3WLYX57FAU81S

51.1KΩ, CHIP, 0805, 1%; OEM P/N: 133625-5112

AP_MM3PYVOSZGOXAXN5BSXLMT

2.00KΩ, CHIP, 0805, 1%; OEM P/N: 133625-2001

AP_5BAUA4MU62UFU24EQ6PGA8

14.0KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1402

AP_4SA3AZ8C5HHME6GQAQXXCD

1.50KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1501

AP_KM5RMZJ1Q7LJD961EA5M6W

3.01KΩ, CHIP, 0805, 1%; OEM P/N: 133625-3011

AP_QSGA2993URU7M9X9N9TST7

20.0KΩ, CHIP, 0805, 1%; OEM P/N: 133625-2002

AP_SI58ULFXLXNWXD6N39GDJR

301Ω, CHIP, 0805, 1%; OEM P/N: 133625-3010

AP_1TIH1AWYPZFVOY95Y51J3N

4.02KΩ, CHIP, 0805, 1%; OEM P/N: 133625-4021

AP_8CHVRMBXH0KCNEDQHSLX4I

18.2KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1822

AP_6VCDC7C9AX01G11HPMJYXH

23.7KΩ, CHIP, 0805, 1%; OEM P/N: 133625-2372

AP_LXRYHWP1SY5LPU4I8E4M4O

56.2KΩ, CHIP, 0805, 1%; OEM P/N: 133625-5622

AP_M805AA0R33V8E1O66MBNGG

1.65KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1651

AP_N3XC8HX98LQZ8I8J04VHH6

10.0KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1002

AP_YDB63DC9FXRVHF7T99XANQ

16.5KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1652

AP_GCTIPTUQ5D17L8ZZDDNOZ7

49.9KΩ, CHIP, 0805, 1%; OEM P/N: 133625-4992

AP_C2DXMV05QNVAZLOJ9SABAC

4.22KΩ, 1206, 1/8W, 1%; OEM P/N: 124894-4221

AP_505FQTBUVE0IV54131NG0I

3.65KΩ, 1206, 1/8W, 1%; OEM P/N: 124894-3651

AP_6QSSBGNLKE1227PKTPH7EU

1.27KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1271

AP_XDNSDZW6T7H59WZG290NI7

86.6KΩ, CHIP, 0805, 1%; OEM P/N: 133625-8662

AP_23Y97F9YLIAW2Q63B9MD9T

301KΩ, CHIP, 0805, 1%; OEM P/N: 133625-3013

AP_9JEYYJN26I5COWSA235DOR

162KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1623

AP_ACLC67QU1EIOIOAF6Z6XTG

27.4KΩ, CHIP, 0805, 1%; OEM P/N: 133625-2742

AP_Y9HRC6P4OMFG44C9Y5BLL1

10MΩ, CHIP, 0805, 5%; OEM P/N: 133626-1065

AP_85T90AMBQ0EGGNJ6PMITF9

200Ω, CHIP, 0805, 5%; OEM P/N: 133626-2015

AP_42JUX85DB46O1WLNMZLWOR

200KΩ, 0805, 1/10W, 1%; OEM P/N: 133625-2003

AP_BKC8M7WD395GZRLCM2NSSH

75Ω, CHIP, 0805, 5%; OEM P/N: 133626-7505

AP_SII60D8RYIVQTY2CXIGAIU

JUMPER, CHIP, 0805; OEM P/N: 133627

AP_RD33HIDBOQBT5SB92WI77W

220Ω, 0805, 1/10W, 5%; OEM P/N: 133626-2215

AP_9H4AEXK9X193ZCOSA1WBX3

5.1Ω, 1206, 1/8W, 5%; OEM P/N: 124895-5R15

AP_JZQUIRR407ZZ96UPUAV0WX

33.2KΩ, CHIP, 0805, 1%; OEM P/N: 133625-3322

AP_MPHEWY90IWL3Q855HHRJ1T

15.8KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1582

AP_EKBAYE10C63IUDKXRVLB7A

73.2KΩ, CHIP, 0805, 1%; OEM P/N: 133625-7322

AP_PHQOIX1COGTCE2LTDKKNHN

36.5KΩ, CHIP, 0805, 1%; OEM P/N: 133625-3652

AP_W67PT83FPXF094DDH77A8N

200KΩ, CHIP, 0805, 5%; OEM P/N: 133626-2045

AP_IOEMJEF909NO042PBCOXHO

9.1KΩ, CHIP, 0805, 5%; OEM P/N: 133626-9125

AP_PMAX8LBG2B2B8YUHL2979N

39Ω, 1206, 1/8W, 5%; OEM P/N: 124895-3905

AP_SAXU3BDN0WF0TCK03VVXHV

JUMPER, CHIP, 1206; OEM P/N: 124896

AP_1N6DAA5KB5L7STS9K4OB7A

1.00KΩ, 0805, 1/10W, 5%; OEM P/N: 133625-1025

AP_MB0BTC6O0F1RTWOIPXFL4D

JUMPER, 22AWG, INSUL, 7mm; OEM P/N: 135091-070

AP_I2P0I38O5L78T4HT51IWYQ

GASKET, 6.5" WOOFER; OEM P/N: 104794-08

AP_DO9F58FT8UHEWLP945SU3R

GASKET, TAPE; OEM P/N: 175548

AP_7I2WA8D7HPWI3LJOTF36BF

GASKET, CONNECTOR, COVER, AM-9P; OEM P/N: 186845

AP_KNE2ESI435NBXWQ7KQ09G2

GASKET, TAPE, FOAM, PCB; OEM P/N: 174676

AP_P3SOKSIXMRAK28P6ZRNA8V

CUSHION, TRANSFORMER; OEM P/N: 176169

AP_SGFC6FPJ03CZ0BFRCN5GDC

FOAM TAPE, 8"; OEM P/N: 134936-080

AP_SSRU7ODP5Y43OXRJBZ2S4X

TAPE, FOAM 2"; OEM P/N: 134936-020

AP_7U5958WPJPQY76PYWF0TCZ

O-RING; OEM P/N: 141403

AP_MUMRETXY0LR3MQZFHYSY8M

WASHER, FLAT, BLACK; OEM P/N: 141402-1

AP_NAR86E1PWLDGYGIZDB3TWB

WASHER, FLAT, WHITE; OEM P/N: 141402-2

AP_WJSYVICVPXB5LMJ19JXL17

BUMPER, RECESSED, FOOT, .88"; OEM P/N: 142839

AP_AUMA3BANIICQ200SDF3MK5

KNOB, TONE CONTROL, WHITE; OEM P/N: 172289-1

AP_V6KEHM2LI7BMD1CAU57ESG

KNOB, TONE CONTROL, BLACK; OEM P/N: 172289-2

AP_T6IE24389DQ7DZKGUL74OD

LATCH, COVER; OEM P/N: 172294

AP_BPQUI76YJG7QDEE3Q6B2N3

NAMEPLATE, LOGO, BLACK; OEM P/N: 184247-1

AP_6PXIBAUO0QSE7X8J9GCK1X

NAMEPLATE, LOGO, ARTIC WHITE; OEM P/N: 184247-4

AP_JYHQ7AM3CROAJ7EBUNPJGT

MODEL / SERIAL NUMBER LABEL

AP_RDBZT530IY2P59ZU1WUKQ1

VOLTAGE / SAFETY RATING LABEL, 120V

AP_HHLEJ0DX0OMVK8DG6HW3FC

VOLTAGE / SAFETY RATING LABEL, 230V

AP_ZQ0LOFGCQBUYMCZU4MKEJE

VOLTAGE / SAFETY RATING LABEL, DUAL 115/230V

AP_PEIQA54JJSS9RAY7I9KN7M

WIRING / CONNECTOR IDENTIFICATION LABEL

AP_9U3SS97B0W281KRNOT1VGE

SCREW, TAPP, 8-11x1.25, PAN, XRC/S; OEM P/N: 172672-20

AP_KSBT0ZWCTBFCO9XUFLTLZS

SCREW, TAPP, 8-11x.75, PAN, XRC/SQ; OEM P/N: 172672-12

AP_EU9WS0VBDVASDRL3EN4NXP

SCREW, TAPP, 8-11 x .625, PAN, XRC/S; OEM P/N: 172672-10

AP_89HFJ7IF8RRUJH11PHFKJ0

SCREW, HILO, 6-20X.625, PANHD, XRC; OEM P/N: 172779-10

AP_0FZ7BOENT1NB34UDQHLXCP

SCREW, HI-LO, 6x3/8, PAN HEAD; OEM P/N: 147516-06

AP_09QYUEKUH0TRIL2R2ZO945

ANCHOR, SCREW, #6, PLASTIC; OEM P/N: 186207

AP_MR9Q1QMQ9F2ECV7SVVMATA

SCREW, SHIPPING; OEM P/N: 186273

AP_BKP220ERULGNFZNRV2HCQF

CARTON, SATELLITE, AM-5P; OEM P/N: 178982-00

AP_96A6ARYMSBBIHRQ9JHUDSL

D/C CARTON; OEM P/N: 172282

AP_FSW1YGKIL1I9ANZ2VFGU1R

PACKING, INSERT, EPS; OEM P/N: 172279

AP_FYXCGGRKU2LQF7AII2DQDR

PACKING, CORNER POST; OEM P/N: 148044

AP_LGUIEZVB2C57IBLRV1NY9M

BAG, POLY, 10x12x2 mil; OEM P/N: 144677

AP_6RNVZ793E46LDECUFJVYTK

BAG, POLY; OEM P/N: 103351

AP_P6KEZRDJ4WXR0O4IRXIOQI

BAG, POLY; OEM P/N: 137847

AP_UP8BO1UZPAEVIG5WC7DUL3

PROTECTIVE BAG, ACOUSTIMASS MODULE

AP_5OYGE9I8YQVT8OFBRO9CDJ

PROTECTIVE BAG, SATELLITE ASSEMBLY

AP_W1S4U0MNJRUVR7TML7P4WV

OWNER'S / INSTALLATION GUIDE, POWERED ACOUSTIMASS 25

AP_OQ24VNGTVORU78NNFMC6VR

SERVICE MANUAL, POWERED ACOUSTIMASS-25 AM-25P SUPPLEMENT; OEM P/N: 177870-S4

AP_KYAZDZ0YQNKJ5Q1MRGSYEV

SERVICE MANUAL SUPPLEMENT, AM-25P PART CHANGES; OEM P/N: 177870-S5

AP_OF2MODMJ92D2RCFL2MDMYL

SERVICE MANUAL SUPPLEMENT, AM-8P/AM-25P/AM-30P MICROCONTROLLER UPDATE; OEM P/N: 177870-S6

AP_IUWEQOKI50T95KUTLSJL5L

SERVICE MANUAL SUPPLEMENT, AM-9/25P TRANSISTOR UPDATE; OEM P/N: 177870-S7

AP_OBPPGZ0CA8OQ8HD8X5JGYJ

SERVICE BULLETIN, POPPING SOUND; OEM P/N: 177870-B2

AP_QZU8IWW0JX5SE1QD5O5HF9

SERVICE BULLETIN, AM-25P TURN-ON CIRCUIT; OEM P/N: 177870-B4

AP_JUUZGJ7VEM109JA0XEYRAP

SERVICE BULLETIN, AM-25P TURN-ON PROBLEM; OEM P/N: 177870-B6

AP_JRDWXE6ZFA6VT3K2E3MR7R

SERVICE BULLETIN, AM-9P/AM-25P FUSE FAILURE; OEM P/N: 177870-B7

AP_DPU9SNJ4XZ5WYDVNEPDAX8

TROUBLESHOOTING GUIDE, POWERED ACOUSTIMASS 25 / 30 SERIES II

AP_K5PPDUW7MVANZQPDEX31A3

SERVICE TEST INTERFACE CABLE, PC-TO-AM-25P

AP_KNTYNEHSNBJ9NIOLDCU0MO

SERVICE TEST SOFTWARE / DIAGNOSTIC MEDIA, AM-25P

AP_3EFMNEQ5MI6M0777VF01JU

ESD PROTECTIVE BAG, MAIN PCB

AP_72V88HDX80ET6FV9NYKQ1J

ESD PROTECTIVE BAG, AMPLIFIER PCB

Repair, service & parts, for your Bose Acoustimass 25

¹ Repairs are performed on a best-effort basis. Acme Revival utilizes a network of sophisticated technicians and engineers with diverse service offerings; despite this, factors that influence the repair outcome may ultimately prove unsuccessful. Acme Revival makes no claim that it can, guarantee a repair before your device is sent in for diagnostic evaluation; even then, repair and diagnostic work are not mutually exclusive. Despite well-intentioned quoting, repairs may still prove unsuccessful.
² Parts known to Acme Revival via Acme’s Neural Network and documented discovery. These parts may not represent OEM cataloging nor does Acme Revival guarantee display accuracy. Always check with Acme’s Help Desk to ensure availability and accuracy. Parts may not be in new condition, may be unavailable, discontinued, or not offered for independent sale.

Repair
solutions,
in network.

Repair

Most Recent Repair Requests:

² (Known) Parts List:

Repair, service & parts, for your Bose Acoustimass 25

File A Claim

Reason for Claim:

Start a Return

Cancel Order

Sell your device

It is functional?

Is it pretty?

Where should we send the offer?

Your Device

Defects

Your Info

Repairsolutions,in network.

Repair

Most Recent Repair Requests:

2 (Known) Parts List:

Repair, service & parts, for your Bose Acoustimass 25

File A Claim

Reason for Claim:

Start a Return

Cancel Order

Sell your device

It is functional?

Is it pretty?

Where should we send the offer?

Select a payment method:

Credit / Debit Card

Physical check

ACH Bank Debit

Tell us how you sent it

We've received your payment authorization.

Repair
solutions,
in network.

² (Known) Parts List:

We've received your
payment authorization.
