Acme Revival connects your Bose Wave Radio with a nationwide network of skilled electronics technicians built to fix what manufacturers won't. Start online, ship it in, and track every update and outcome in one transparent Service Dashboard.
1
Repair
$49.00
FLAT-RATE REPAIR (LABOR)
90-Day Warranty
No-Fix Repair Guarantee
Revival’s flat-rate repair service is a best-effort attempt to diagnose and repair the reported issue. The advertised price covers technician labor only and will not increase.
If replacement parts are required, we’ll provide a separate quote for your approval before proceeding. If we can’t complete the repair, your labor charge will be refunded. A separate $25 Repair Network Service Fee applies, along with return shipping & handling. These charges are non-refundable.
Repairs may be limited by device condition, prior damage or modification, safety concerns, or unavailable manufacturer-controlled parts or resources.
Most Recent Repair Requests:
2 (Known) Parts List:
AP_IRO3HX1VRGPAVJBS5I371N
PCB ASSY, BWR III, 120V; OEM P/N: 187615-001
AP_J31S34UAZ12RXMRDH7O0Y6
PCB ASSY, BWR III, 220V; OEM P/N: 187615-002
AP_7HL2XP7VIGHDEWGETZRU5M
PCB ASSY, BWR III, 100V; OEM P/N: 187615-003
AP_CE3MCTTKYC665FEY2JZBRT
PCB ASSY, BWR, SWITCH; OEM P/N: 147212
AP_FLG195QLX0KLQZJ5B2Q2SP
GRILLE ASSY, WHT; OEM P/N: 188490-001
AP_I78O6AA1KYE4Y6CTVGNVUK
GRILLE ASSY, GRY; OEM P/N: 188490-002
AP_WA7MGLWDCKOQJ5SO0JM6SN
TRANSFORMER, POWER, 120V; OEM P/N: 187595-001
AP_M5SRLLL5A2YLIKF058VAUW
TRANSFORMER, POWER, 100V; OEM P/N: 188465-001
AP_IF93WTDPJT5NI1RIRG7U2N
TRANSFORMER, POWER, 220V-240V; OEM P/N: 188461
AP_P6R6QYX0U7YWJ3B5IS0I02
FULL RANGE, 57mm (LEFT); OEM P/N: 193430-001
AP_UE6DH0H48C1E9US9EETS19
TWIDDLER, 57mm (RIGHT); OEM P/N: 171494
AP_0MHTECOD0WC0T6EVW7FR1V
TWIDDLER, 57mm (RIGHT), SHIELDED; OEM P/N: 148704-001
AP_KKV0YRF7179FT2F7DW7TJU
MATRIX ASSY, WHT; OEM P/N: 188453-001
AP_HXSBTV33UV31K8KXWRCDRM
MATRIX ASSY, GRY; OEM P/N: 188453-002
AP_NK0WCWXLLA20KHS1GHHJ5O
COVER ASSY, SWITCH, WHT; OEM P/N: 180518-001
AP_CMVHULSHTRRRCJ6JTSAGKU
COVER ASSY, SWITCH, GRY; OEM P/N: 180518-002
AP_64R0WY55FK42S98874RUW5
PEDESTAL, BLACK; OEM P/N: 258796-001
AP_0P59NPN917A17CWO3QWF6A
BWR REMOTE, WHT; OEM P/N: 189752-003
AP_NE19SKA9SPCBIVLRRRELBN
BWR REMOTE, GRY; OEM P/N: 189752-002
AP_VMMJMKTRX1BPSDVHDHPKJ5
BWR REMOTE, EXTENDED RANGE; OEM P/N: 182433
AP_LWJ3VTCCV15ZUFM2ZX0JYQ
DISPLAY, VACUUM FLUORESCENT; OEM P/N: 147226
AP_ARLY6FTO7VL5PCGG10P2X3
TUNER, FM, 3 GANG, 7V, US; OEM P/N: 180995
AP_157S3HB4QYWJ7WUICAET4U
TUNER, FM 76-90MHZ, 7V, JAPAN; OEM P/N: 188466-001
AP_DKTQ6EE486PKSN1GHWKCIJ
POWER AMP, MW15, TDA7375A; OEM P/N: 250117
AP_RRT8L6RLZBSMKB6LUZHV7X
IC, uC, 44 POS, J-LEAD, BWR, MASKED; OEM P/N: 177401
AP_9VJY3U8K3SXCNPNFIUFVCJ
VFD DRIVER, DIP-28, MM58342; OEM P/N: 146813
AP_QR4UPX609BZY6LVRM0V7C5
AM/FM, TUNER, SO-20 LA1836; OEM P/N: 187600-001
AP_JYYNPI6OS4VIVNB9Y9V68M
PLL FREQ SYNTH, DIP-20; OEM P/N: 147527
AP_LMQG108BD2IWYRXTQL1XKU
VOLUME CNTRL, DIP-16, TC9213P; OEM P/N: 147622
AP_2UTN1RZXNVNMVJVFRBY6TU
QUAD OP AMP, TLO74D, SOIC; OEM P/N: 186112
AP_6O714YBNHT3XTQ7DOBH4D2
OP AMP, DUAL, SO-8, NJM4556; OEM P/N: 148598
AP_HRLA3S8BFEK2CSZ6SS9HQ6
OP AMP, DUAL, TL072; OEM P/N: 187619-001
AP_6A68NZV2E1AU9J9ZOCW2TV
OP AMP, SNGL, SO-8, CA3080; OEM P/N: 187617-001
AP_VUL0EYKVOFS7DM9DELKEXA
VOLTAGE COMPARATOR, LM339; OEM P/N: 187618-001
AP_CX8RO0YP6DZV7N0GHHOQ27
MULTIPLEXER, HCF4052BEY; OEM P/N: 187620-001
AP_AI1RMLGV78VNU6PUZL4F4F
LM78M10, TO-220; OEM P/N: 178352-10
AP_QKFHYQBTS7GLAQ3G6F9ROO
HEATSINK; OEM P/N: 177562
AP_2HCKRLJQB06NBENG4K5GQX
SHIELD, IC, BWR; OEM P/N: 188468-001
AP_AACJXYT0HVVC9GRQ0VYI85
SHIELD, IC; OEM P/N: 178944
AP_688NLF8AZ7GYLYDWY3XHZR
SHIELD, BOTTOM; OEM P/N: 171902
AP_BCMZ9XD4LO7788CJVS10OP
SHIELD, WOOFER, TOP; OEM P/N: 171903
AP_LL0BAT9XM15XBMQH9CCBE1
ANTENNA, FERRITE BAR; OEM P/N: 177268
AP_DJAYUW2EJWTVR5L8CT1Q5G
CABLE, TWIDDLER; OEM P/N: 172584
AP_O13E128AYHXFXIQ76EW97J
CABLE, TWIDDLER; OEM P/N: 196439
AP_BKUNHW1X1NLRANDX9UAW11
CABLE, RIBBON, 21 CONDUCTOR; OEM P/N: 177256
AP_QMYHT3196M5XSY77XDK9JG
CABLE, BATTERY/ADAPTER, 9 VOLT; OEM P/N: 187610-001
AP_L6HL9EZ41TLIBDZKDYCKL7
CONN, FM ANTENNA, US/JAPAN; OEM P/N: 178354
AP_OF9LHWB6NFFJBM79M3ZRSA
CONN, FM ANTENNA, EURO; OEM P/N: 179271
AP_MI1RBPL1SUZGDCL9ORYFMS
CONN, HOUSING, PHONO, QUAD, 8 POS; OEM P/N: 147227
AP_2G5RJ5RWUGNGKTPJ48YJ4B
CONN, HEADER, SHIELDED, 10 POS; OEM P/N: 147246-10
AP_OTQ4SDLIXU3NRVVNXUUSQA
CONN, HEADER, SIDE ENTRY, 21 POS; OEM P/N: 177258-21
AP_12ZQLPNLFWD8BNEILH0POC
CONN, HEADER, TOP ENTRY, 21 POS; OEM P/N: 177257-21
AP_FBPLTWI26S73UTWG0T47UT
CONN, HEADER, INLINE, PCB MNT, 6P; OEM P/N: 133220-06
AP_R90JL8A5V3SHRBETOY1XVX
CONN, HEADER, INLINE, PCB MNT, 4P; OEM P/N: 133220-04
AP_NZ07JNLWUWL4MPPRMFT3IA
CONN, HEADER, RTANG, 2.5mm, 3 POS; OEM P/N: 145402-03
AP_TJ52RSIRXMBF0KK7KQ7NZM
CONN, HEADER, 2 POS, 8MM; OEM P/N: 178742-2
AP_AQ93TO7Z5EM6LB89ZMICPW
CONN, AC, 100V/115V; OEM P/N: 146563
AP_93GF7N36Z75NQ7WTM44RRT
CONN, AC, 220V-240V; OEM P/N: 145306
AP_TA751QK00VX4XKGJXH2V1D
DETECTOR, FM, SINGLE TUNED; OEM P/N: 187602-001
AP_UOWS9O6EP9BDSQT4VMUS6O
FILTER, CER, AM IF; OEM P/N: 187603-001
AP_RG457DROZ3JQ0WP83O6M0A
FILTER, STEREO MPX, SINGLE TUNED; OEM P/N: 187624-001
AP_FUP2ZCOXRXP28AG3BWPO6N
FILTER, CER, 10.7MHZ, 180+-20KHZ; OEM P/N: 179028
AP_W4SW6ND75Y43I7JAIFUGTG
RESONATOR, CERAMIC, 456KHz; OEM P/N: 187604-001
AP_AYHDSMTG4PSMCHYFBAL85G
RESONATOR, CER, 4MHz; OEM P/N: 147534
AP_UJYUJIRW0QFC7F7KZ7A6V5
CRYSTAL, QUARTZ, 7.2MHz, 50PPM; OEM P/N: 147223
AP_6I7QTIUR3OAENZFWTRYTPS
SOUNDER, PIEZOELECTRIC; OEM P/N: 149562
AP_QZ6LMCG507BGSH2W6NOO9V
IR SENSOR; OEM P/N: 187205
AP_Q6MIRUX8YHIC1WPEUCBZN8
VISIBLE LIGHT SENSOR; OEM P/N: 187629-001
AP_IR8RBNWIITP6Z8OAIZVRUZ
PAD, SW, ELASTOMERIC, WHITE; OEM P/N: 185180-001
AP_BT2UFI2HPPBCEX1Q7X4S44
PAD, SW, ELASTOMERIC, GRY; OEM P/N: 185180-002
AP_NCKM0WWX5NNKOWXR73YUZO
HOLDER, DISPLAY; OEM P/N: 175357
AP_TEN5K68CZC77EXQHYI5VTN
CLIP, SPRING; OEM P/N: 142864
AP_IN7YRCUMWYS76FYFF8ZAVH
BATTERY, DOOR; OEM P/N: 187627-001
AP_W0FQS3HLTEALG97B2F1ILI
FOOT, RUBBER; OEM P/N: 188462-001
AP_HG1CMQP27MHNPBW2Q5J07P
FOAM, BATTERY COMPARTMENT; OEM P/N: 188458-001
AP_A6KWX7M2P8AD998SC0WR6W
PAD, FOAM ADHESIVE BACK; OEM P/N: 178945
AP_P5CMM5YH7IZJQLSTISW9M1
SCREW, HILO, 6x.5, PAN, XREC; OEM P/N: 175972-08
AP_WKF13NRGIUDGSCD66BBVVW
SCREW, TAPP, 8-11x.625, PAN, XRC/S; OEM P/N: 172672-10
AP_HANT79ZYSIR4BKJAUMOJDE
SCREW, TAPP, M3.5x0.6x10, PAN, TRX; OEM P/N: 140447-10
AP_O9QCCGB65MXN6LT4Q8I2H0
BATTERY, LITHIUM, CR2032 OR DL2032; OEM P/N: 180991
AP_LS8IB8I4BNU5PQMRIMDVHL
BATTERY, CARBON, 9 VOLT; OEM P/N: 187609-001
AP_6A6U0WUVPHUH1W9IAOXMGX
LINE CORD, DETACHABLE, US; OEM P/N: 172045
AP_NKZA8BZCFY9QY2AN6L1ILD
LINE CORD, DETACHABLE, EUR; OEM P/N: 148203
AP_7PUAPWJ9T83PIUYA96SF5D
LINE CORD, DETACHABLE, UK/SINGAPORE; OEM P/N: 134725
AP_7KFFXNMSUV0L0OOX110NSK
LINE CORD, DETACHABLE, AUS; OEM P/N: 134726
AP_3I8574Q8K2HUB6T94O597K
LINE CORD, DETACHABLE, JAPAN
AP_G6JDFSX8Y1TIDA8P0E4D10
CARTON, RSC, BWR; OEM P/N: 183793
AP_8EBMGE6E7SPE5BTKNF9YRB
PACKING, ENDCAP; OEM P/N: 183481
AP_7HVB24W35EF8MJRDO96H9E
BAG, POLY, 17.5x17.1x4 mil, SHIP; OEM P/N: 149205
AP_IUSX71K484A6IBLBJLT5Q5
BAG, POLY, 4 x 12 x 3 mil; OEM P/N: 144348
AP_PRB2402M4X1TS3XCDORY3E
MANUAL, OWNER'S, BWR III; OEM P/N: 198321
AP_MQ3QI48IMLG57ZB3B7CDHC
SHEET, QUICKSTART, BWR III; OEM P/N: 189617
AP_Q3MX2QXJSQJJO2ZUBB3TDH
SHEET, SAFETY; OEM P/N: 176236
AP_CE3TE221MN7W9VIBWLQW5A
ALL PRODUCTS BROCHURE; OEM P/N: 188898
AP_1WJBOLS4TMF0DU5SDHQXZI
CARD, WARRANTY, MULTI LANG; OEM P/N: 180925
AP_VNS0OK9USXFHOBH0K0X1HS
SERVICE MANUAL, WAVE RADIO SERIES I; OEM P/N: 174784
AP_HLSGWHNQGLWV3MXFIQNWCS
SERVICE MANUAL, WAVE RADIO SERIES II; OEM P/N: 181811
AP_XFR9GLMNV896RJRQPDMEHK
SERVICE MANUAL, WAVE RADIO SERIES III; OEM P/N: 191514
AP_XK1XL2A7BEXHV98NWVEEW5
TROUBLE SHOOTING GUIDE, WAVE RADIO I/II/III; OEM P/N: 174784-TG1
AP_89EYART3DZCJLDX0MBH0KI
FUSIBLE RESISTOR, 1 OHM, 1/2W; OEM P/N: 188460-1R0
AP_T93QTJ843XIJ4YSYC77W22
CAPACITOR, 1UF; OEM P/N: 149948-1R0H
AP_VH4A3SB0CKL5XY1Z2573D0
CAPACITOR, 2.2UF; OEM P/N: 178212-225
AP_TFXKTQPQ1Q7MFBEW1M1ONZ
POWER AMPLIFIER, TDA7375; OEM P/N: 180050
AP_1AVKJ7ZWFUNE4NA9H6GG8G
TRANSISTOR; OEM P/N: 140348
AP_01T5NB0P39UTKPNVO4R1GX
SOT23, 150mA, 55V, P, BPLR; OEM P/N: 134743
AP_HJVNSU75QVG3SIEGSAHX8V
SOT23, 150mA, 55V, N, BPLR; OEM P/N: 134741
AP_G24VK59UMC0RQT91XKSF26
2SA1341, 50V, P; OEM P/N: 146818
AP_BHKZL4TINSB0J0ZTWLRJ3B
DUAL, SOT-23, BAV99; OEM P/N: 147239
AP_S0TUW6HGLLKBYB3FM5NNQ8
DUAL, SOT-23, BAV70; OEM P/N: 147249
AP_BV96LGT5G7X5TI9ZLC2WVC
SMT, S1G; OEM P/N: 178380-4
AP_K1AVKP29KLXU1EGLS1W3HF
1N4531, 5MM; OEM P/N: 136603
AP_QQ4H4F7K00TQ4YGBJ2FLYL
ZEN, 6.2V, .5W, 5%, SOD-123; OEM P/N: 174265-5234
AP_I1E98JXHNQ70SRQN304Y2S
10.0K, 5%, 1/10W, 0805; OEM P/N: 133626-1035
AP_SGAM68BQG9IDITABQRFEE7
100K, 5%, 1/10W, 0805; OEM P/N: 133626-1045
AP_VPG85QC32TOTRE2LOS9OOJ
30.0K, 5%, 1/10W, 0805; OEM P/N: 133626-3035
AP_ALCAO1M3P9UXCPZVJS8EF1
3.48K, 1%, 1/10W, 0805; OEM P/N: 133625-3481
AP_AK1UY3VIOKPMHGL1GD542H
2.26K, 1%, 1/10W, 0805; OEM P/N: 133625-2261
AP_IVX4WEO514DGCI7L0QMXPA
10K, POT, 30%, 1/2W; OEM P/N: 177494-103
AP_1QI3I4S0MI0ABNBXRYF8R9
5K, POT, 30%, 1/2W; OEM P/N: 177494-502
AP_GLHDTVQ3WMY4QS2E2BYLAX
3.9K, 5%, 1/10W, 0805; OEM P/N: 133626-3925
AP_YTGW7NUR0OSHT407J22FWH
10UF, 16V, 20%, 85, BP, EL; OEM P/N: 188459-100C
AP_1Y7VJH08P956BCG254U0NG
6.8PF, 5%, 50V, COG, 0805; OEM P/N: 133622-6R8
AP_355RXQJRJTAL7B70LD1O85
3.3UF, EL, 85, 50V, 20%; OEM P/N: 149947-3R3H
AP_RJAMZUR6IRNDN7V2FWY32Z
39PF, 0805, COG, 50V, 5%; OEM P/N: 133622-390
AP_7287D2PA4DCDTL4BDV25NV
.01UF, 0805, X7R, 50V, 10%; OEM P/N: 133623-103
AP_AJEDQP61Y4Z4P3R6KR3IPM
.33UF, EL, 85, 50V, 20%; OEM P/N: 149947-R33H
AP_KK431J47TXD7VS8DJ9VJBT
1206, X7R, 25V, 5%, .1UF; OEM P/N: 131754-104
AP_5B2D9M693XXKGBLO6WJML2
.027UF, BOX, 85, 63V, 5%; OEM P/N: 137127-273
AP_UZL2U7GLC78Q9QH6DU2LFU
.056UF, BOX, 85, 63V, 5%; OEM P/N: 137127-563
AP_RTGK3EUQKAAO27CS7ZAS5N
.12UF, BOX, 85, 50V, 5%; OEM P/N: 137127-124
AP_YEQDOYYV5SKJM1WMXQ81R0
4.7UF, EL, 85, 50V, 20%; OEM P/N: 149947-4R7H
AP_GWWO3IWVKZRXK2I9G6XFCY
.022UF, 0805, X7R, 50V, 10%; OEM P/N: 133623-223
AP_4WMHXMRZJIF08DC542LIAZ
2.2UF, EL, BP, 85, 50V, 20%; OEM P/N: 147522-2R2
AP_XL0ZAYXMNJ7M4P4UB6UVUN
33PF, 0805, COG, 50V, 5%; OEM P/N: 133622-330
AP_TXPIDVIURY8SQUIGH8D0P3
1.0UF, EL, BP, 85, 50V, 20%; OEM P/N: 147522-1R0
AP_MSG3H54EK8T2TFNG2PDCWB
1800PF, 0805, COG, 50V, 5%; OEM P/N: 133622-182
AP_HTDWEXKTQZ3J96HB9JI669
250V SLOBLO 0.75A FUSE; OEM P/N: 135677-04
AP_5VR7MLILA8I5BZYZCUEJ8R
250V SLOBLO 0.5A FUSE; OEM P/N: 135677-03
AP_CUN2NAODGK0E0XR75UMTQ7
FACTORY AM ALIGNMENT TEST FIXTURE
AP_F3GQ0APDOMUNEIBGGJ0BNQ
FACTORY FM RF ALIGNMENT TEST FIXTURE
AP_H9U0VG8EAKZ0NSVRGT34OV
FACTORY AUDIO FUNCTIONAL TEST CABLE SET
AP_H9I7JCQ7NW3OVQ4G4W6P7Z
FACTORY IR REMOTE TEST FIXTURE
AP_QRWI0KK50CX8TIMJ4EFI78
FACTORY LEAKAGE CURRENT / HIPOT TEST FIXTURE

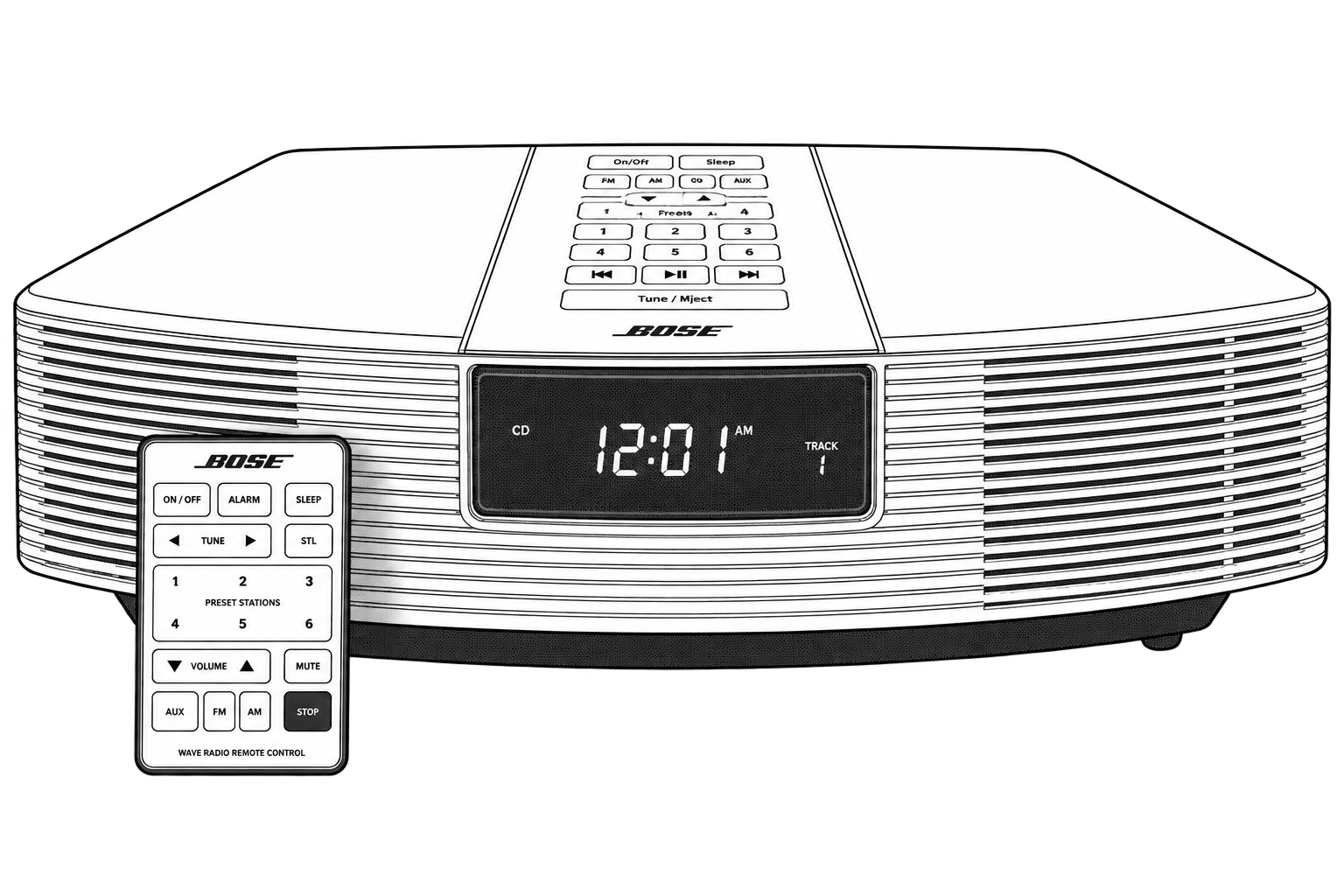

Repair, service & parts, for your Bose Wave Radio
- 1 Repairs are performed on a best-effort basis. Acme Revival utilizes a network of sophisticated technicians and engineers with diverse service offerings; despite this, factors that influence the repair outcome may ultimately prove unsuccessful. Acme Revival makes no claim that it can, guarantee a repair before your device is sent in for diagnostic evaluation; even then, repair and diagnostic work are not mutually exclusive. Despite well-intentioned quoting, repairs may still prove unsuccessful.
- 2 Parts known to Acme Revival via Acme’s Neural Network and documented discovery. These parts may not represent OEM cataloging nor does Acme Revival guarantee display accuracy. Always check with Acme’s Help Desk to ensure availability and accuracy. Parts may not be in new condition, may be unavailable, discontinued, or not offered for independent sale.
