We’re still collecting data here.
Repair
solutions,
in network.

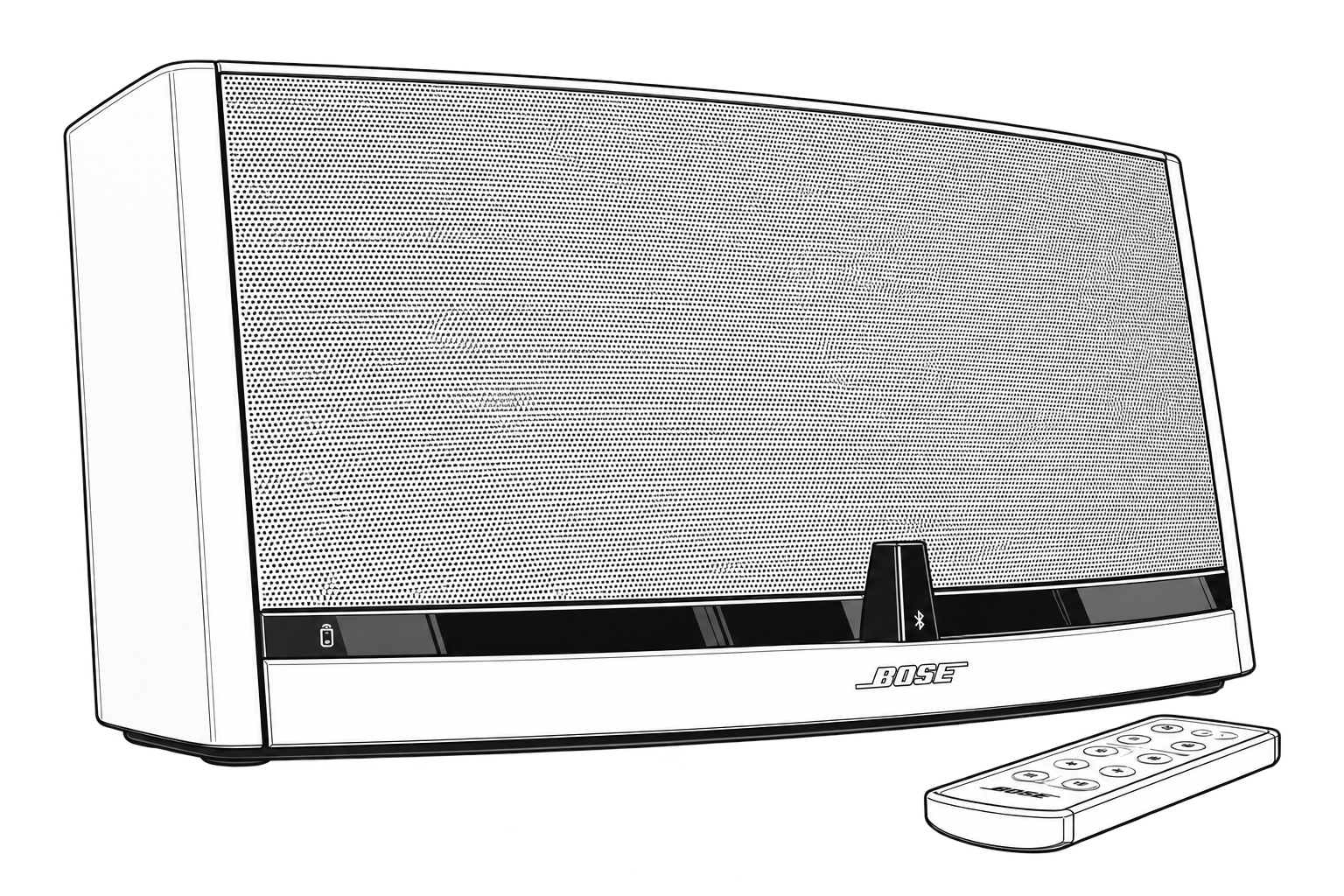

Acme Revival connects your Bose SoundDock 10 with a nationwide network of skilled electronics technicians built to fix what manufacturers won't. Start online, ship it in, and track every update and outcome in one transparent Service Dashboard.
1
Repair
$79.00
FLAT-RATE REPAIR (LABOR)
90-Day Warranty
No-Fix Repair Guarantee
Revival’s flat-rate repair service is a best-effort attempt to diagnose and repair the reported issue. The advertised price covers technician labor only and will not increase.
If replacement parts are required, we’ll provide a separate quote for your approval before proceeding. If we can’t complete the repair, your labor charge will be refunded. A separate $25 Repair Network Service Fee applies, along with return shipping & handling. These charges are non-refundable.
Repairs may be limited by device condition, prior damage or modification, safety concerns, or unavailable manufacturer-controlled parts or resources.
Most Recent Repair Requests:
2 (Known) Parts List:
AP_28WKF5K0SK0AHB8Y0EVSTT
POWER, PCB, ASSY, US; OEM P/N: 311435-011S
AP_YCKBTFXFBJX3SBN6XW9ZSM
POWER, PCB, ASSY, EU; OEM P/N: 311435-012S
AP_ZLL5QLZOFJUP20VV8EP67S
POWER, PCB, ASSY, DUAL; OEM P/N: 311435-016S
AP_HS4P30BKF6NRDOPU9PCFKO
SLAB, DSP; OEM P/N: 319110-041S
AP_KBB74Z1QAKLT92XGHN301H
POWER, PCB, ASSY, US; OEM P/N: 311435-001S
AP_ODECOEHC2XSU27G0QI9UCV
POWER, PCB, ASSY, EU; OEM P/N: 311435-002S
AP_SRV3O0XT2UA5V4ORMC6KPT
POWER, PCB, ASSY, DUAL; OEM P/N: 311435-006S
AP_LFKMT75XXA0WW9G2SPR09M
SLAB, DSP; OEM P/N: 319110-021S
AP_298JQJU1EGACG5Z6NBPAPM
MODULE, BLUETOOTH, SOUNDDOCK10; OEM P/N: 310840-0000
AP_3B8IO66UQMICGIA3PYM54M
I-DOCK, SUBASSY; OEM P/N: 323693-001S
AP_C69LRB3RTKETRRDZWJ9PUR
I-DOCK, SUBASSY; OEM P/N: 318058-001S
AP_74SZ1DHF95FQ5BKA6EOHGQ
DOCKFRAME/PCB; OEM P/N: 323692-001S
AP_ZKQQUMQLZHTW6H6URD9JSY
DOCKFRAME/PCB; OEM P/N: 318057-001S
AP_UQTD1PS76JZ7NIM4YGOOLW
TRANSDUCER, ASSEMBLY, WOOFER; OEM P/N: 324318-001S
AP_R52J9IMT2DL3Q7XFGRYJZ7
PCB, ASSY, IR; OEM P/N: 319107-001S
AP_3SUD1FOO4RW41BUUUD0N9L
GRILLE (includes lens); OEM P/N: 323691-001S
AP_UUQOS6BZB97348H9NDS94S
GRILLE (includes lens); OEM P/N: 318054-001S
AP_J2DJW7U83EI0RUNL99SF16
REMOTE CNTRL, IR, BLK; OEM P/N: 322254-0100
AP_HGMQ3XX800A84OH3JUH3OM
TWIDDLER, 50MM; OEM P/N: 291636-001
AP_VSI6YB5QGV62WFBZE6W90Y
HEATSINK; OEM P/N: 310387-001
AP_TXL4KOHPORUR8EWREUD87L
UNIVERSAL, INSERT; OEM P/N: 317402-0020
AP_DLVTM9XJEQYCHUY4GQIBUP
UNIVERSAL, INSERT; OEM P/N: 317402-0010
AP_LCJ7YLXL16HBEQLLONTMUA
CABLE, USB ADAPTER; OEM P/N: 320877-001
AP_LK51WUNPTTG2I6TFIN690O
CABLE, FFC, 50POS, FOAM; OEM P/N: 310376-003
AP_U32LDY2CKZCBC64XA6U2BZ
CABLE, FFC, 30POS, FOAM; OEM P/N: 311560-0030
AP_S7V1OFSDI2GKFKX9XB6K7H
CABLE, FFC, 6POS; OEM P/N: 310375-001
AP_HH6JW63MEE45KBTLHMR1ZT
HARNESS, TWIDDLER; OEM P/N: 318606-0010
AP_GF1URZQNEEEFJK0SUUW0BU
ENDCAP, RIGHT; OEM P/N: 310382-001
AP_0PNX4FA9C9O86DI49B5G85
ENDCAP, LEFT; OEM P/N: 310381-001
AP_11JPIFV0RHH0HFT92XYNIC
COVER, REAR; OEM P/N: 319726-0010
AP_YW8EYWQDUMUAOOT2JUS40R
BASEPLATE; OEM P/N: 310379-001
AP_A97CA5ESYJCNCY0UZJ3FTR
COVER, WOOFER; OEM P/N: 310388-001
AP_NMGEUNX1MOG9HAJ7OZDMUN
DEADFRONT ICONS; OEM P/N: 310433-001
AP_ISEF9JJKW9C6GH3WFFZE9U
CENTERING TAB; OEM P/N: 317086-0010
AP_O7LHP5X5ELIRKQ4SK95LPG
GASKET, CENTER; OEM P/N: 316806-002
AP_IF2HCMHCSOQULM2FSWREN4
GASKET, WAVE; OEM P/N: 313891-004
AP_Q62BCLMVHSRRNTWL5TBYNL
GASKET, FOAM, PORT; OEM P/N: 310539-008
AP_DXEMQ42DTP1XLP7F627P0F
FOAM, GASKET STACKED EMI; OEM P/N: 323770-0010
AP_XZJWGDEO3J2Y3WHW0IPY5C
GASKET, FOAM, TAPE, .070; OEM P/N: 311559-0010
AP_05NU1XJJYK2I36GYRGJ4UD
FOAM, TAPE, 345X25X1.75; OEM P/N: 311559-0030
AP_C4W4FD8M3FXSCQP03BJ32B
FOAM, URETHANE, BLACK, PSA; OEM P/N: 319723-0010
AP_4GI33CEZMHNGFQTSJKBOYT
FOAM, PORON, PSA; OEM P/N: 319404-0010
AP_65Z9I0WXILV6X67S55PC6T
PAD, THERMAL; OEM P/N: 311554-0010
AP_UTGVCY81FY8NBZT71R44XT
GROMMET, ISOLATION; OEM P/N: 310389-001
AP_8GO30ZORTYYMISPE75QY2X
INSULATOR, AC; OEM P/N: 315187-0010
AP_CUVDS7R2ZL7UTGD5WS4EI1
FLOCK GRILLE LEFT; OEM P/N: 314449-0010
AP_1ZBALCY87Q241VOQE04FDD
FLOCK, FABRIC, 195X11; OEM P/N: 314450-0010
AP_6HCAYEJ21EPGW7P440P6ED
FASTENER, INTERLOCK, 75mm; OEM P/N: 304106-075
AP_V6JHV1UM0G2N510X1NMA8C
FOOT, RUBBER, 12.5 DIA; OEM P/N: 301750-002
AP_WE5NP2WCHKADJ4ZQN0LXS4
LABEL, PRODUCT
AP_1HMN2IZ6MZK26TFSN8VU2B
DOCK RELEASE BUTTON
AP_R0ZII5VX4XZPQEEXWGG9F6
DOCK RELEASE SPRING
AP_FVXETOQUCZLMCIFW6QF6WC
DOCK HINGE / PIVOT HARDWARE
AP_QJNZZTVEV0PZ4N0X6VKIB7
ACOUSTIC WAVEGUIDE / PORT ASSEMBLY
AP_BSGMA7X6GO01USFXKZ93WZ
ACOUSTIC ENCLOSURE / BAFFLE WELDED ASSY
AP_9JPKMCMD4DATGWA4R4MTLO
INTERNAL EMI SHIELD
AP_1B1G1607T44M0S08UD5HGU
INTERNAL WIRE HARNESS, POWER PCB TO DSP PCB
AP_0KIQSVKC04TURN8MH6HNID
INTERNAL WIRE HARNESS, WOOFER
AP_Y8CRHZKFGA79FM59LFBO9O
INTERNAL WIRE HARNESS, AC INPUT
AP_TMOEYWZA5IKG8B3CLKSGOD
STRAIN RELIEF, AC INPUT
AP_VL5W836D6VAXN4XK1G6UFP
CR2032 LITHIUM COIN CELL, REMOTE CONTROL
AP_P7YTXG7BE1ITPTIQ4KQVX0
LINE CORD, 120V, PDL, BLK; OEM P/N: 262814-001
AP_8X8Y8TSYP6030586J507MW
LINE CORD, 220V, EUR, BLK; OEM P/N: 280135-001
AP_HLGLEBWMJBP14GB17RZMW7
LINE CORD, 230V, KOREA, BLK; OEM P/N: 311668-001
AP_DWZXCJ6R9Q2L2KVNN1UCUY
LINE CORD, 230V, UKS, BLK; OEM P/N: 280138-001
AP_ZX17GLA84GBR90NB33YJ9C
LINE CORD, 240V, AUS, BLK; OEM P/N: 284243-001
AP_67ICB3HJOU7CCOETAR8X7P
IC, DSP, TMS320DA705, MASKED; OEM P/N: 289857-7051
AP_TXR5TNQNIPTU6F2I89F71J
IC, CPLD, w/ 570FF, JTAG , 144-P; OEM P/N: 307343-002
AP_8PHKD392URYBK3OP9DFDL8
IC, SERIAL, FLASH, 3.3V, 32Mbit, SO-8W; OEM P/N: 323017-032W
AP_P0E5VU8063EFVQO7R47M45
IC, SECURITY, APPLE, 2.0B, C6; OEM P/N: 309630-006
AP_PNMP5U3T113A7ZIMN7CD8G
IC, uC, 3.6V, 64-pin, TQFP; OEM P/N: 307303-001
AP_NVA1ETP83QHDWHUW704WBT
IC, Stereo ADC, 24-Bit, 192kHz; OEM P/N: 307160-001
AP_8TKW12HPLRAK5EPULG9X2Y
IC, DAC, 24-bit, 192kHz, 6-ch, 20-P; OEM P/N: 309061-001
AP_J9GJAA0NH4BS9SIEKJV8HB
IC, I-MODE PWM CONTROLLER; OEM P/N: 312199-001
AP_NNX6TDBLEFEKVWXELQ6ND1
IC, VOLT REG, ADJ., 500MA, DPAK; OEM P/N: 258496-001
AP_PTNQTTX1PWUG8HRSGG0EM9
IC, RESET, SOT-23, MAX809, 2.63V; OEM P/N: 191158-06
AP_GHJWVIEU5OCWVKAHHIMYC9
IC, INVERTER, SMD; OEM P/N: 266582-001
AP_EGKF5W70H06F6SXAVRM0V9
IC, REST, 1.60V-4.63V, SC-70, MAX803; OEM P/N: 319732-293
AP_29R2YICGRFV6RXA9CNM0CW
IC, VREG, LDO, ADJ, 1A, 1.5 to 5.5V, 8-P; OEM P/N: 324229-5500
AP_X6RRLE8PUYQWJD2TH7TZH4
IC, Vreg, POS., LDO, .5A, ADJ._V; OEM P/N: 312828-002
AP_558DYRC3XU3KC75R5AU5FQ
IC, OP-AMP, DUAL, SOIC-8, TLC2272; OEM P/N: 174989
AP_2VDBOYI3J3AQ13MSAB4TD4
IC, POWER AMP, TDF8599TH, HSOP36, PAD UP; OEM P/N: 302183
AP_A6JXZN1RLLWGST1Y4KGOZ5
IC, PWR-AMP, Class D, 20W; OEM P/N: 298092-001
AP_JPBU9Q9VOHW7B1XNXDJA21
IC, NOR GATE, QUAD, 2-INPUT, 5.5V, SOIC; OEM P/N: 324043-0010
AP_L55SL7IB3UGS5V193X36WI
IC, Vreg., 5.0V, FIXED., LDO, SOIC; OEM P/N: 313374-050
AP_6HYC8P70RM7XEO3N6SL0SS
IC, AMP, OPTICALLY ISOL., 0.5%; OEM P/N: 310589-001
AP_0S4RKOD24Q1CXOK5X6922Q
IC, VREG, ADJ., 1.2-32V, SOIC; OEM P/N: 310726-001
AP_A90OFCUXCO5EV9Y2BHAIPD
IC, HALF-BRIDGE GATE DRIVER; OEM P/N: 317085-001
AP_DVWKCIBEC51J3PYRSMJYEI
IC, PWM CONTROLLER, 50%DUTY CY; OEM P/N: 317119-002
AP_RFTUALIO63S62BAS8C9075
IC, SCHMITT TRIGGER, 18V, SSOP-5; OEM P/N: 317128-001
AP_BNQF5S8YY4QX4VZI7K6QBW
FUSE, TIME LAG, 4A, 250V; OEM P/N: 310538-4000A
AP_4YOCNSEM8D8Y61SOZ13BJT
AC CONN, SINGLE PIECE LEADS; OEM P/N: 301125-001
AP_TIB7SIU7TYZZD2GG64YDOY
TRANSFORMER,PULSE, RATIO 1:.667; OEM P/N: 310977-001
AP_AOGN1A1UXVZM1XNUIAEDFJ
240Uh, XFORMER, OCL, W/QUIET TAP, 2PIN-UPL; OEM P/N: 310658-003
AP_G2G1L4V8ROQCBI60HSJZ48
INDUCTOR, PLANAR, 4-LAYER, 4T, ERF28-450; OEM P/N: 319196-450
AP_K4ITJGOY32IWFXW1C5BRBY
CORE, FERRITE, ERF28, 450nH/N^2; OEM P/N: 314443-450
AP_N4IWW8K4VOMNDV5B5LRAFD
INDUCTOR, PLANAR, 4-LAYER, 8T, ERF17-160; OEM P/N: 318999-160
AP_P4MIXT95DCCIKLFKH26CH4
CORE, FERRITE, ERF17, 160nH/N^2; OEM P/N: 314442-160
AP_BHOIJNKWYTGW4ME13RPJ1T
10mH INDUCTOR, COM MODE CHOKE; OEM P/N: 310640-002
AP_B65SFV9LDA8SYE7GMLBNBG
10mH INDUCTOR, COM MODE CHOKE (not used on all systems); OEM P/N: 310640-003
AP_EY452OPIB6A08PRSFT30VO
INDUCTOR, FIXED, 22uH, 20%; OEM P/N: 307181-223M
AP_JKTRBPB47K8PGC8E416UHS
INDUCTOR, 28.75uH+/-10%, Toroid; OEM P/N: 310734-001
AP_39HSB9HFA7RLUZ70Z6H88Z
PAD,FOAM, ADHESIVE BACK; OEM P/N: 285787-002
AP_7PLW246PJFKVNLQEQU2HP9
DIODE, BRIDGE RECT, 3A, 600V; OEM P/N: 311102-0600
AP_N1GDDQPH2251TQKEW01PO8
DIODE, REC, FAST SWTG, 4A, 400V, FORMED; OEM P/N: 258432-087
AP_GWF9A55FYRI4N9F4LP1ZAS
DIODE, SWITCHING, 75V, 200mA; OEM P/N: 148582
AP_EJVDR0K4YLVR0NXF8FNXVM
DIODE, PWR SCHOTTKY, 1A, 150V, SMA; OEM P/N: 321276-001
AP_AA6S1ZDBWXY3G3SP412HPH
DIODE, RECT, FAST, 600V, 1A; OEM P/N: 317066-600
AP_IVSV9IY39SHVFPET4WWXOG
DIODE, ZEN, SMD, 47V; OEM P/N: 181994-47R
AP_PQMWVYMT5DPZGGYT569DL0
DIODE, SOT-23, BAV 99; OEM P/N: 147239
AP_H5MQP4BEWCLDI33NZR1CVT
DIODE, SCHOTTKY, 40V, 3A, SMB; OEM P/N: 193847-001
AP_SEA0HGJDJ1BUXX6XGS3C0N
DIODE, ZEN, 3.6V, 225MW, 5%, SOT-23; OEM P/N: 135247-5227
AP_HITD93396TBZO3VPJ4NC3C
DIODE, ZEN, 5.1V, 225MW, 5%, SOT-23; OEM P/N: 135247-5231
AP_ZI5LE89KE8JVEJ881ZHAPT
DIODE, ZEN, 10.V, 225MW, 5%, SOT-23; OEM P/N: 135247-5240
AP_WT1WR7ABRO70FX4DMC0N84
XSISTOR, BPLR, N, 40V, 200mA, SOT23; OEM P/N: 146819
AP_98LK0QWCJ96CS0MTHTC80S
XSISTOR, BPLR, N, 50V, 100mA, SOT23; OEM P/N: 146817
AP_ZW8RSX5GYNQKYDEWJR26ZG
XISTOR, MOSFET, N-CH, 100V, 1.7A; OEM P/N: 312197-001
AP_Q6H14LJ1GBHMRCQUFMEZOV
TRANSISTOR, MOSFET, N-CH, 2.5V; OEM P/N: 302882-001
AP_L5WAVYEXZHT24T396RLRRY
330 OHM, BEAD, FERRITE, BLM18P, 0603; OEM P/N: 302257-331
AP_N4KE9ZN6CG1O6B39QY9HTO
120 OHM, BEAD, FERRITE, 0402, 0.3A; OEM P/N: 324216-121B
AP_HVTPK57947Y3KWSJ5L8SG1
FERRITEBD, IND0603, 200MA 330OHM; OEM P/N: 268373-331
AP_DXWYFIXREJD84IG7FBMY0E
220 OHM, BEAD, FERRITE, 0603, 2A; OEM P/N: 322644-221A
AP_PDCCUX0HLIRGYQD3HSRVK4
120 OHM, BEAD, FERRITE, 0603, 200mA; OEM P/N: 324058-121A
AP_CRZ2I75HQIOH58Q94ET4IB
CONN., USB, MINI-B TYPE, SMT; OEM P/N: 309011-003
AP_9Z4BGIZW6P7PF5A8SRHZ74
CONN., RA, 6-P, 1.0MM PITCH, SMT; OEM P/N: 319448-006
AP_YWRQ1LHXCAV5H5H3MUQF40
CONN., SMT, LIF, 30 POS., SIDE; OEM P/N: 255130-030
AP_AIR0YFO9NB6BB7WUZ3XK0O
CONN_RCA_SINGLE_YELLOW; OEM P/N: 314707-0010
AP_EKG534PUCUKHO2C75RPIND
CONN., FFC, .5mm, S-Entry, 50-PIN; OEM P/N: 310573-050
AP_9PVKZVF566KS1FKVZNK60N
CONN, JACK, HEADPHONE, PCB MNT, 9P; OEM P/N: 148583
AP_KEQ0MJLSV2121ZNTTRIR2I
XTAL, SMD, 105, AT41CD2, 18.432MHz; OEM P/N: 269923-18R43C16
AP_AG2PTZVF89GLOCQD89305C
CRYSTAL, MC49, 4.00MHZ; OEM P/N: 270245
AP_9EKYSVIG8EB64ICBFOUHH9
TVS, ESD SUPPRESSOR, LOW CAP; OEM P/N: 286375-001
AP_ZIRDVVR60LOR6GKNRMQG9F
JUMPER, CHIP, 0603; OEM P/N: 196042
AP_59OPE8Q6XE2B3BS7O9Q22T
RESISTOR, 0.47 OHM, 1210, 500mW, 5%; OEM P/N: 318356-471J
AP_YZVRKSUQG1IB5SZH8GI1K4
RESISTOR, 680 Milli-OHMS, 1210, 500mW, 5%; OEM P/N: 318356-681J
AP_DCJX2PTNM3LR88IUBX8VME
RESISTOR, 100 OHM, 1206, 1/4W, 1%; OEM P/N: 124894-1000
AP_CARGQQE0HMZVG4EYSN0J86
RESISTOR, 6.8 OHM, 1206, 1/4W, 5%; OEM P/N: 124895-6R85
AP_YJCN38ZBKK3HPUL7PXUNNM
RESISTOR, 2.2 OHM, 1206, 1/4W, 5%; OEM P/N: 124895-2R25
AP_7UTO8C4BBTXCWNS11UVJR9
RESISTOR, 5.11K, 0603, .1W, 1%; OEM P/N: 191465-5111
AP_XQLLTDPUMTOVY1UUFGBWFH
RESISTOR, 75 OHM, 0805, 1/10W, 5%; OEM P/N: 133626-7505
AP_06DCRLEAXCXVEWEGHT2CV4
RESISTOR, 51 OHM, 0805, 1/10W, 5%; OEM P/N: 133626-5105
AP_NVC0UYZM0U4Z6ORV4UIHNR
RESISTOR, 51 OHM, 0603, 100MW, 5%; OEM P/N: 199403-510
AP_FP5WAQJBJPIO46924J0BB8
RESISTOR, 4.99K, 0805, .125W, 1%; OEM P/N: 133625-4991
AP_QY3562XXX7M9JU0ZGJZ98M
RESISTOR, 1M, 0603, .1W, 1%; OEM P/N: 191465-1004
AP_169LRZHHJ7OSE52K8WZQVG
RESISTOR, 14K, 0603, .1W, 1%; OEM P/N: 191465-1402
AP_OSUHBT61UBRJKWOML5A7IA
RESISTOR, 15K, 0603, .1W, 1%; OEM P/N: 191465-1502
AP_8TMQ7FMEXL8IGSM7WY6SW1
RESISTOR, 47 OHM, 0603, SMD, 100MW, 5%; OEM P/N: 199403-470
AP_B3S4RC1Y3RYGQOI5G49V88
RESISTOR, 1.00K, 0805, 1/10W, 5%; OEM P/N: 133626-1025
AP_OKP1NDXPSURQDNFXDS2GOB
RESISTOR ARRAY, 1.5KOHM, SMT, 50V, 5%; OEM P/N: 186433-1524
AP_6Q7I6ZENNHVTO27737DB03
RESISTOR, 130K, 0603, 100MW, 1%; OEM P/N: 191465-1303
AP_M883C539ZYCE1K4K7HY9Y1
RESISTOR, 2K, 0603, .1W, 1%; OEM P/N: 191465-2001
AP_66260UFQBW1DFT1SQS1P6Q
RESISTOR, 2.49K, 0603, .1W, 1%; OEM P/N: 191465-2491
AP_YM9ZHTE1BB168WY15LE9J0
RESISTOR, 1K, 0603, .1W, 5%; OEM P/N: 199403-102
AP_4KQKT4G4ZLK8OA29WZMJQU
RESISTOR, 22 OHMS, 0603, .1W, 5%; OEM P/N: 199403-220
AP_C1JVTDZWOI31MZA2T6SKHD
RESISTOR, 6.04K, 0603, .1W, 1%; OEM P/N: 191465-6041
AP_08JI7QJ1VMG3EECXZKMEF6
RESISTOR, 3.3K, 0603, .1W, 5%; OEM P/N: 199403-332
AP_YA0K7WAQSMJDN7R9G26YA9
RESISTOR, 20K, 0603, .1W, 5%; OEM P/N: 199403-203
AP_MZ56ZNDRTVQFL04CR0NGLH
RESISTOR, 10K, 0603, .1W, 1%; OEM P/N: 191465-1002
AP_ZC7QCVUCEZV21C3NX4XIL0
RESISTOR, 3.9K, 0603, .1W, 1%; OEM P/N: 191465-3901
AP_SS60ULD8Y7KLZOB9WL5C6H
RESISTOR, 49.9K, 0603, .1W, 1%; OEM P/N: 191465-4992
AP_3E73CG8G62TKLY0LFR11DR
RESISTOR, 475 OHM, 0603, .1W, 1%; OEM P/N: 191465-4750
AP_L7CC8B04UF9Z7GHGVOU06A
RESISTOR, 100 OHM, 0603, .1W, 5%; OEM P/N: 199403-101
AP_DQT22F4J4XVLHQS4262ED3
RESISTOR, 330 OHM, 0805, 1/10W, 5%; OEM P/N: 133626-3315
AP_8G6QHUNCCR8SQWQDSZSUNH
RESISTOR, 49.9 OHM, 0402, 63MW, 1%; OEM P/N: 268361-49R9
AP_Q8QRCPL0JSQTQBB2HTVSTS
RESISTOR, 4.7K, 0603, .1W, 5%; OEM P/N: 199403-472
AP_8Y3CP33C7DJL5DGEAKAULW
RESISTOR ARRAY, 10K, SMT, 4 POS, 50V, 5%; OEM P/N: 186433-1034
AP_29KK8EFRANSW6YOOTOLDMJ
CAPACITOR, 180pF, 0603, COG, 50V, 5%; OEM P/N: 188454-181
AP_FF5ZR959SNWONTSF9S4SVL
CAPACITOR, 3.3uF, TANT, 3216, 16V, 10%; OEM P/N: 268370-335
AP_T9EAWXQ04A5Q3SFA15Z6IS
CAPACITOR, 0.1uF, X7R, 0603, 50V, 10%; OEM P/N: 191470-104
AP_Y9AEPS9KPNC4176E4D13R4
CAPACITOR, .01uF, X7R, 0603, 50V, 10%; OEM P/N: 191470-103
AP_4XVC84O579IQLLBPN4MEA7
CAPACITOR, 2.2uF, X7R, 1206, 16V, 10%; OEM P/N: 283163-225
AP_LMKW5LVYY9KHKM6RTZ4TH2
CAPACITOR, 1000pF, 0603, COG, 50V, 5%; OEM P/N: 188454-102
AP_DZ6J7WFAZUWTGMY22I68L0
CAPACITOR, 10uF, TANT, A SIZE, 10V, 20%; OEM P/N: 196981A106A2
AP_PGBRDNPT6NMYSHKCTDONN4
CAPACITOR, 33pF, 0603, COG, 50V, 5%; OEM P/N: 188454-330
AP_EKPVS5SQ0X7C0T2NUA6UA4
CAPACITOR, 33nF, X7R, 0402, 16V, 5%; OEM P/N: 296732-333
AP_C83J42PM8QWR57CFHL47ON
CAPACITOR, 220pF, COG, 0603, 50V, 5%; OEM P/N: 188454-221
AP_2ZNWEF878DRZQ03671DZA9
CAPACITOR, 68pF, COG, 0402, 50V; OEM P/N: 268364-680
AP_P444B1ZZ7OH7RCGLQ0RTTJ
CAPACITOR, 47pF, 0603, X7R, 50V, 10%; OEM P/N: 191470-470
AP_KS7BVIMHNPZZIDC3YYD07U
CAPACITOR, 1500pF, 0603, X7R, 50V, 10%; OEM P/N: 191470-152
AP_FAHF1MKXM8LIWOAW0WYEAW
CAPACITOR, 220pF, COG, 0603, 50V, 5%; OEM P/N: 188454-220
AP_SS6J9JIKB4PM1WGZT73T64
CAPACITOR, 56pF, COG, 0402, 50V, 5%; OEM P/N: 268364-560
AP_2830X3E8A73V8J43S0SG4X
CAPACITOR, 27pF, 0603, COG, 50V, 5%; OEM P/N: 188454-270
AP_OQ4NNZAWXQW9U7VFW4HS6J
COMMITMENT LETTER; OEM P/N: 251001
AP_B65QRFMQQ10EQ4MDHL4BXV
SHEET, ADDRESS PAGE, BOSE; OEM P/N: 289347-001
AP_GCL41QE3777HHG127Y5XAT
OWNERS GUIDE, 3L, US; OEM P/N: 314136
AP_3FREII91JVJ03LW6KD1UC8
OWNERS GUIDE, 11L, EUR; OEM P/N: 314137
AP_YHI24GDPLX3YIRF4GCBU9B
OWNERS GUIDE, 6L, AP; OEM P/N: 314138
AP_F37PB68FY4VTW4D2K89MFH
PERSONAL AUDIO INBOX BROCHURE; OEM P/N: 310403-001
AP_6OJ2BVOX3SLX49PLHGDMRH
SOUNDDOCK 10 SERVICE MANUAL, REV. 04; OEM P/N: 309505-SM Rev. 04
AP_NP80A07HEIVOWX8PIKUY9C
SOUNDDOCK 10 BLUETOOTH DOCK OWNER'S GUIDE
AP_8AP0BPKF10I7JIQR81H1T2
SOUNDDOCK 10 SOFTWARE UPDATE PACKAGE
AP_6SIQ5II0OOBETSRGAL1LDI
SOUNDDOCK 10 SOFTWARE UPDATE INSTRUCTIONS
AP_86MKWP15LB8CN2D84WZAVB
SOUNDDOCK 10 SERVICE BULLETIN, SOFTWARE UPDATE
AP_8V02RFFPTUN646P0J5URL0
SOUNDDOCK 10 SERVICE BULLETIN, LOW POWER STANDBY HARDWARE/SOFTWARE UPDATE
AP_7GNFM2BCU8B4Y8BKW0XZAJ
SOUNDDOCK 10 SERVICE BULLETIN, AC INSULATOR/SHIELD INSPECTION
AP_ABI6EUZPXFE8E8MX0JWJ22
PACKING, TRAY, TOP, 20.8X12.8X6.1; OEM P/N: 312286
AP_6OV1YS84M380NP5RKU36QX
PACKING, TRAY, BOT, 20.8X12.8X6.1; OEM P/N: 312288
AP_JDSBYN0CM5SNGDSQ8PRK0T
CARTON, RSC, 20.94X12.94X12.25, US; OEM P/N: 319496-0010
AP_K333KR4Q4RVLR77G7SKMWM
CARTON, DC, 4.12"X2.06"X1.56", BT
AP_2FGGS358LO4L662A1ZALEX
POLYBAG, SYSTEM
AP_ZRM4N658DR9OGHGJGYGJP6
POLYBAG, REMOTE CONTROL
AP_QZRLGM2J4P7RAR0O23U4NE
POLYBAG, LINE CORD
AP_S9LA6K0OCA9TMDZP2K6WUI
PROTECTIVE FILM, GRILLE/LENS
AP_GNDAJ53YI4PDUMOY56ICSJ
ADHESIVE TAPE, PACKAGING
AP_SMPGFL91M0KN74LY9Q945G
SCREW, TAPP, 4-16, PAN, XREC; OEM P/N: 288372-006
AP_W8G06IL55FCVSVAW1E6UHM
SCREW, TAPP, 8-11x.5, XREC/SQ; OEM P/N: 289388-008
AP_IBQBO33DL1OSHKBRYIBRTZ
SCREW, TAP, 8-11X.625, XRC/SQ; OEM P/N: 289389-010
AP_VAYXL2PHHMP3C8IHPULMDS
SCREW, 8-11X1/2, WASHER; OEM P/N: 311943-0010
AP_F9YKUM3TPBUDH4FLOIR3YU
SCREW, PHILLIPS, DSP PCB MOUNTING
AP_HH07ZVMLE7HII24ZALLGBT
SCREW, PHILLIPS, POWER PCB MOUNTING
AP_OF0ITPSMQEH0TRSMT1GELR
SCREW, PHILLIPS, IR PCB MOUNTING
AP_RWTIGMWLY3537H4JSSUBMC
SCREW, PHILLIPS, DOCK MOUNTING
AP_69DQUC31CSMYIDTJQS6S43
SCREW, PHILLIPS, REAR COVER MOUNTING
AP_58HQKV3ZJKB9FGX3L3J635
SCREW, PHILLIPS, BASEPLATE MOUNTING
AP_QZOIGDC61O67IO8IAVO6L6
SCREW, PHILLIPS, WOOFER MOUNTING
AP_AE4GTHHIHI2C1TXIKP701H
SCREW, PHILLIPS, ENDCAP MOUNTING
AP_5S8OJJUJW90V49DLJKRI3U
WASHER, PCB / CHASSIS MOUNTING
AP_IWO9OP9NTC7C2YVFU9F0BT
CLIP, CABLE RETAINING
AP_MIA6ZYW87Y5UURZ122LYC7
TAPE, FABRIC, ENDCAP RETENTION
AP_FIC5B71XLNHLH5AO8P8ZS5
ADHESIVE, GASKET / FOAM SERVICE
AP_K8HJAS06YRUIHWPI4SB1LI
ESD PROTECTIVE BAG, PCB SERVICE
AP_WA70UVLL0NMKMK2FVNXYSJ
SERVICE SHIPPING CARTON, PCB ASSEMBLY
AP_DF5P3KWFM6U7D8KL7OJI6K
SERVICE FOAM INSERT, PCB ASSEMBLY
Repair, service & parts, for your Bose SoundDock 10
- 1 Repairs are performed on a best-effort basis. Acme Revival utilizes a network of sophisticated technicians and engineers with diverse service offerings; despite this, factors that influence the repair outcome may ultimately prove unsuccessful. Acme Revival makes no claim that it can, guarantee a repair before your device is sent in for diagnostic evaluation; even then, repair and diagnostic work are not mutually exclusive. Despite well-intentioned quoting, repairs may still prove unsuccessful.
- 2 Parts known to Acme Revival via Acme’s Neural Network and documented discovery. These parts may not represent OEM cataloging nor does Acme Revival guarantee display accuracy. Always check with Acme’s Help Desk to ensure availability and accuracy. Parts may not be in new condition, may be unavailable, discontinued, or not offered for independent sale.
