Acme Revival connects your Bose Solo 15 with a nationwide network of skilled electronics technicians built to fix what manufacturers won't. Start online, ship it in, and track every update and outcome in one transparent Service Dashboard.
1
Repair
$68.00
FLAT-RATE REPAIR (LABOR)
90-Day Warranty
No-Fix Repair Guarantee
Revival’s flat-rate repair service is a best-effort attempt to diagnose and repair the reported issue. The advertised price covers technician labor only and will not increase.
If replacement parts are required, we’ll provide a separate quote for your approval before proceeding. If we can’t complete the repair, your labor charge will be refunded. A separate $25 Repair Network Service Fee applies, along with return shipping & handling. These charges are non-refundable.
Repairs may be limited by device condition, prior damage or modification, safety concerns, or unavailable manufacturer-controlled parts or resources.
Most Recent Repair Requests:
2 (Known) Parts List:
AP_YG95JSRE61BZFEPOTKW0AP
PCB ASSY, MAIN; OEM P/N: 716908-001S
AP_NKAUCO5FJOQEXBQ5DL99OG
TOP COVER ASSY, SOLO 10/15; OEM P/N: 716906-001S
AP_OPM59MK18MWT2BK46LAQ9Q
GRILLE ASSY, METAL, SOLO 15; OEM P/N: 716904-001S
AP_TJMUVLCOISKDRCAXIAYVYG
REMOTE, SOLO 15, US; OEM P/N: 639414-0020
AP_5JFKBJLTYAKHISWJKZ2KQC
REMOTE, SOLO 15, EU; OEM P/N: 639414-0220
AP_I7TCL68YRJENVQP8I67XJU
REMOTE, SOLO 15, JP, AP; OEM P/N: 639414-0320
AP_UES50YI9S86Q6A3F80ML6F
PCB ASSY, IR; OEM P/N: 716909-001S
AP_72JIQV1GYYE5FPMH64W69B
TRANSFORMER, FLYBACK, 85-265VAC, 2.5A, 24V; OEM P/N: 370743-0010
AP_GMXZAX31R6C17FVLH08ZSU
TWIDDLER, 58MM, FERRITE, 8 OHMS; OEM P/N: 715491-0010
AP_3APE0ZZW294T06SQN6LSFK
SOC, W/DSP+USB, 400MHZ, TMSD808, 176QFP, C-ROM
AP_JBJICL7556REJUXNHWFRZ1
FLASH, 32MBIT, 3V, WSON
AP_3CXTOCUX2I78ML2WQF1S5J
MEMORY, SDRAM, 166MHZ, 8MBX16, TSOPII-54
AP_COKCJPUBDDGUBXUFA50LRQ
PWR AMP, 15W, CLASS D, 26V; OEM P/N: 327287-0010
AP_ORWJX73XDIDGWQ15HZ6W5S
DAC, 6CH, 24BIT, 192KHZ, PCM1606E, 20SSOP; OEM P/N: 346767-0010
AP_WB71SASRTKWFW3DU4QE6N0
S/PDIF, RCVR, AK4112B; OEM P/N: 361109-0010
AP_R4U12Z9W0HE3YYMU1YR7RH
24BIT, 96KHZ, ADC, SMD TSSOP-16; OEM P/N: 299343-001
AP_ECCB2UM8PUD4IO64RNTR7D
SMPS, FLYBACK CONTROLLER; OEM P/N: 348216-0010
AP_QA1X1X0UMWRH85ERMKIAOD
VREG, SW, SYNC, S-DOWN, 1.5A, ADJ, 16QFN; OEM P/N: 327362-1010
AP_LV0WK064HR8TTVAWSCVABL
VREG, SWTING DC TO DC, STP DWN, 1.5A, 42V; OEM P/N: 328718-0020
AP_E829OU0YXLN85Z4ZPPUWSC
VOLT REG, 1.8V, 1A, AUTOMOTIVE; OEM P/N: 267317-1118
AP_39RNVNRCPWNDKQEN55RFIV
VREG, POS, LDO, .5A, ADJ._V; OEM P/N: 312828-002
AP_BKEX02XISEYFXZ6OEQZ8F8
VREG, LDO, 100MA, SOT-23; OEM P/N: 283384-5001
AP_VMKLL3DXN1WTGFRIHCCJ3O
IC, SENSOR, IR, RCVR, 38KHZ, MTH; OEM P/N: 319147-238
AP_U6MYZ8EYEEK76E9MLQT8JW
OPTO ISOLATOR, CNY17F-1X007; OEM P/N: 254120-002
AP_ARD9BHOACV9LSPFHQO50O4
LOGIC, SINGLE, INV, SC-70; OEM P/N: 330502-0010
AP_5PZFZ3INPLNSXT4YL69I6Z
RESET, 2.93VT, TPS3825, SOT23-5; OEM P/N: 289604-1033
AP_NO9YVXSJDMA47O6STWKKXZ
COMPARATOR, SOIC, LM393D
AP_71TD5BP6B3C3SMP02VXF4B
CABLE, FIBER OPTICAL, 2.2MM OD; OEM P/N: 347411-0010
AP_OL8PTMPDXMXA6GR80I0M0G
CABLE, COAX, 6FT, 75 OHM; OEM P/N: 342771-1010
AP_FAWLUGEDU5IDJW6KF4QCEL
CABLE, RCA, 6 FT; OEM P/N: 185931-101
AP_H99NV0YRYTWGM8Y1ZG0QME
HARNESS, TRANSDUCER, LEFT, LONG; OEM P/N: 716901-0010
AP_OP06O24UG0K86SL068F9RX
HARNESS, TRANSDUCER, RIGHT, SHORT; OEM P/N: 716902-0010
AP_M2D3JNAH152YLESYD6A0CV
CABLE, FFC, IR/LED; OEM P/N: 716900-0010
AP_555AQOXBL3G8H2EXC4DZOG
TAP CABLE; OEM P/N: 264565
AP_JO18WCNU0KVGGPVL2KOKXU
RS232-TTL CONVERTER, B&B ELECTRONICS MODEL 232LPTTL
AP_SI9AIV6IPKZ3HZ4EA4DZVH
POWER SUPPLY / AMPLIFIER SHIELD ASSEMBLY
AP_KEEX7751PYRBH7AR8CO85E
COVER, PCB, WITH FOAM; OEM P/N: 716907-001S
AP_P5G777RNDSIKU981I14ELX
ENCLOSURE ACOUSTIC GASKET
AP_GLXQ9DFE5JNS7KUPTL0O4Q
LINE CORD, 120V, PDL DET, BLK, 1500, US; OEM P/N: 262814-1310
AP_N322U70J0MRZEGBC3EKAZT
LINE CORD, 220V, DET, BLK, 1500, EUR; OEM P/N: 280135-1310
AP_URQHTJSR1GNNHW0LAXQ9L8
LINE CORD, 230V, DET, BLK, 1500, UK; OEM P/N: 280138-1310
AP_NN0YDOX02RT1SDMI6TS9YW
LINE CORD, 100V, , DET, BLK, 1500, JPN; OEM P/N: 280136-1310
AP_SK28OLG2U9UKKDDGJXEU2Q
LINE CORD, 240V, DET, BLK, 1500, AUS; OEM P/N: 284243-1310
AP_MXTBDIQ0X4SBTW3PKPTM1R
LINE CORD, 230V, BLK, 1500MM, KOREA; OEM P/N: 311668-1310
AP_7OXP37D0COT6L5XSOLGFTB
LINE CORD, 110V, TAIWAN; OEM P/N: 329792-1310
AP_SN0QZB1AKF998SCSKTUYUS
CONN, OPTO-RECEIVER, 3.3V; OEM P/N: 328772-0010
AP_GENJZ5DQTXBPMPA9IMICIR
CONN, USB, TYPE A, SMT; OEM P/N: 306363-001
AP_53PCUIWU5U30FMKXKG4VD1
CONN, PIN JACK, DUAL, VERTICAL; OEM P/N: 273167
AP_X0Q1LS1M67BKCNEWL0UKRN
AC CONN, SINGLE PIECE LEADS; OEM P/N: 301125-001
AP_8AGR3JVOVOIX0PWUW88PK7
CONN, JACK, PHONE, 3.5MM; OEM P/N: 282721-002
AP_LE8E0637J26WL793Q79IK7
CONN, HEADER, 9 PIN TOP ENTRY; OEM P/N: 253356-T09
AP_SKFZ2BS5O69J1ZN9NY2H40
CONN, RCA, PIN JACK, W_SNAP, ORANGE
AP_CEBECQSWK5U6XLOQ4U8T10
CONN, W_BOSS, 2.5MM, 6POS, TOP-ENT
AP_NM2HRQWMV56GLMW9SLZAUR
CONN, W_BOSS, 2.5MM, 4POS, TOP-ENT
AP_NXBT6U72CRCFYYBZVWTB16
SHIELD, FENCE, SMT, DSP; OEM P/N: 349527-0010
AP_ICU96MFT1ZRC2JG9LENC7G
SHIELD, DIP, OPTICAL CONNECTOR
AP_AD03CGDOX06IU978CYKB2M
XTAL, SMD, 105, AT41CD2, 24.576MHZ; OEM P/N: 269923-24R5C16
AP_LVIJH2FM8JLNIOWX1AOSHD
CRYSTAL, 26MHZ, HC49/S, SMD; OEM P/N: 291429-005
AP_GSP1VNEZL9B51KZLO18DOA
INDUCTOR, TOROID, 1A, 30%, 5MH
AP_12T8RPGWSOBM2W9N7JSFZH
INDUCTOR, TOROID, 1A, 30%, 10MH
AP_9IYPTLIQJKB0NK1YB7SJN9
FIXED, RADIAL, 5MM LS, 670MA, 82UH; OEM P/N: 309310-820K
AP_X52LHDQECNWRLHATFPIMDE
SMD, 105C, 20%, 10UH; OEM P/N: 345388-100M
AP_BJIE5XBCP8U0LC46I1KYKO
2.5A, 10MM, SMT, 20%, 22UH; OEM P/N: 266922-220
AP_02FJY0Z606M3L50OEUPZ60
CORE, FERRITE, ERF17, 160NH/N^2; OEM P/N: 314442-160
AP_39KJF3WNFQLE5OJ9H2LSA2
DIODE, BRIDGE RECT, 3A, 600V; OEM P/N: 311102-0600
AP_1FEURCIQOQ0VI8OQ3MN4TQ
MFET, N-CH, 600V; OEM P/N: 310519-001
AP_Q7YN89EYAEPN3ENLAERYOZ
SCHOTTKY RECT., 5A, 170V, COMMON CATH; OEM P/N: 329305-0010
AP_DLFRNPFQHQM40KMOMP9H6T
ZENER, 1.5W, 150V, SMA; OEM P/N: 357194-0150
AP_T4QPBQ48AAHKIJNWSNIQM7
FUSE, TIME LAG, 4A, 250V; OEM P/N: 310538-4000A
AP_5T8T9SJ0PK5ZD2KU8LT6QI
VARISTOR, MET OX, 420V, 75JOULE; OEM P/N: 273545-007
AP_DWTZHP04OOKISP5YX82IK0
LIN REG, POS, ADJ, TL431, SHUNT, 1%, SOT23; OEM P/N: 330361-1030
AP_8N889H1FCVULPZC5334JVS
PNP, SOT, MMTB3906, BPLR, 40V, 200MA; OEM P/N: 148596
AP_AS4YO1IS7WCQKWZ3161UR9
BPLR, NPN, SOT23, MMBT3904; OEM P/N: 146819
AP_UUP4NNLLW3ZROURV4182BJ
N, MFET, 2.5, SOT23, ESD
AP_Q8ABFHBIAM3OE36XQEM7G9
MOSFET, P-CH, 30V
AP_AMJR51ZQ1KYG6R0O2VJB3S
SCHOTTKY, 1A, 30V, SOD123; OEM P/N: 317122-001
AP_MQ1Y20T58Q517CLLBFY63E
RECT, FAST, 600V, 1A; OEM P/N: 317066-600
AP_02U1EXTV2NG0U30D2HDOVW
SWITCHING, 100V, BAV99, SOT363; OEM P/N: 319113-001
AP_UB4KK029DG7CA0MTWH0T4O
DUAL, SOT-23, BAV99; OEM P/N: 147239
AP_DG2CQCY9S9YLDX5PCVS3AO
SWITCHING, SOD123, 1N4148W; OEM P/N: 257662
AP_5A6FYJM9TZUMP9RRG8NQTI
ZENER, 0.2W, 20V, SOD323; OEM P/N: 310491-20A
AP_HYVXLE1M923FQ2G019HWHK
DIODE, LED, 5V, R ANGLE, SMT, 3X2MM, RED/GRN
AP_8B7SREKIA3PII7VXLKJI1C
100UF, EL, 105C, 20%, 450V
AP_HPMLRQVPMF4CR48WA3GM3D
1000UF, EL, DIP, 105C, 35V, 20%
AP_BCBQAV3E2EML5SHRSQCPE6
220UF, EL, SMD, 105, 35V, 20%; OEM P/N: 306169-221VH
AP_BEDU2X5OVSQW3ZY95WM56D
220UF, EL, SMD, 105C, 16V, 20%
AP_A80LTJYF80JLIQNOVLVXQQ
100UF.EL, SMD, 105C, 35V, 20%; OEM P/N: 306245-101EE
AP_MWL1DDA8VKXVF5C7AD389T
CAP, FILM, X2, 305VAC, 0.68UF, 15MM; OEM P/N: 310415-684ME
AP_MSK4LBTLXDA7FWDNP87ZGR
CAP, FILM, X2, 305VAC, 0.33UF, 15MM; OEM P/N: 310415-334ME
AP_3MVGYL5MXIA9OV66E50COT
0.1UF, FILM, X2, 275VAC, 10MM; OEM P/N: 268166-104A
AP_JP940YNF0OS29ZHEI5DDX4
CER, Y1, 250VAC, 470PF, 10MM; OEM P/N: 310461-471KB
AP_SVOFE9WRWHR3O97LQTIBTA
CAP, X7R, 1210, 500V, 10%, 1000PF; OEM P/N: 359772-102K
AP_QCRVGP24TKTHM6Z3IHWB0H
0.15UF, X7R, 1210, 500V, 10%; OEM P/N: 359772-154K
AP_X7GOCQRN0VYZZK9A2Y4V7H
1.0UF, 1206, X7R, 50V, 10%, FAIL OPEN; OEM P/N: 286500-105
AP_MKOCN1G0OQM0JFXAFKILTA
0.22UF, 1206, X7R, 50V, 10%, FAIL OPEN; OEM P/N: 286500-224
AP_ZMATK45XFSJGXSIEO6DBLE
0.1UF, 125C, 50V, 10%, 0805, X7R, FAIL OPEN; OEM P/N: 286499-104
AP_WO5FYMGQ978UCC49EIWSDU
CAP, 0805, X7R, 50V, 0.01UF, 10%, FAIL OPEN; OEM P/N: 286499-103
AP_F1CICUIT103E0QZS24HMIF
3300PF, 0805, X7R, 50V, 10%, FAIL OPEN; OEM P/N: 286499-332
AP_2OWLMR3UE4KZJ01GKO4AU9
1000PF, X7R, 0603, 10%, 50V, FLEXTERM; OEM P/N: 304991-102
AP_VS9V6J19G2SA1KCQKK9T10
0.1UF, X7R, 0603, 10%, 50V, FLEXTERM; OEM P/N: 304991-104
AP_TTFTOPGCX58XALNVJZIG9H
1.0UF, 16V, 10%, 0805, X7R; OEM P/N: 273596-105
AP_QD737RUBVM2U6OX3PU52M9
22UF, EL, 85, 16V, 20%; OEM P/N: 177902-220C
AP_YXC8Y3ITYUOJQH7JWLGJVG
EL, 85C, 16V, 20%, 10UF, SMD; OEM P/N: 177902-100C
AP_DHU88DRG1Z214P1XRFXGX0
.47UF, EL, 85, 50V, 20%; OEM P/N: 177902-R47H
AP_VOQX2TSTVDH92BGZXJNL8K
0.33UF, 0805, X7R, 50V; OEM P/N: 133623-334
AP_S37KJ4QQLGT7MIKNLH43FH
1.0UF, X5R, 0402, 6.3V, 10%; OEM P/N: 313771-105J
AP_PNOU5WKEF2QABEP2S3Z9E1
1000PF, X7R, 0402, 16V, 10%; OEM P/N: 293702-102
AP_X8Y27455OEFTEIU5AXKNS3
0.1UF, 0805, X7R, 25V, 10%; OEM P/N: 181264-104
AP_XM5BJF119ZTJKEAVGMJJAL
47PF, 0603, COG, 50V; OEM P/N: 188454-470
AP_SEOXNIJ53SH0BW8GB48FXY
4.7PF, 0603, C0G, 50V, +/-0.25PF; OEM P/N: 268696-4R7C
AP_1VZBL7A8JFYCM2V6C7V5A9
33PF, CER, RADIAL; OEM P/N: 269857-330
AP_5Y0CNH7VLKA4KDYI1J7HPK
100PF, CERAMIC CAP, FORMED, 300V
AP_1HQ4Z6O9IFI2148TVDSRDL
0.1UF, 0402, X7R, 16V, 10%
AP_25EFEIKHN8QRKIDNU5QY11
0.1UF, 0603, X7R, 50V, 10%
AP_WE6A3DT4DCCEN3UE12U8JK
0.01UF, 0603, X7R, 50V, 10%
AP_C5WAT2BM47M1HG2S369K3C
0.22UF, 0805, X7R, 50V, 10%
AP_HGIT49HEWVCOV75VYDFB36
1.0UF, X7R, 0603, 25V, 10%
AP_RK5NB9J6YPEPO1EFSI0PNN
470PF, 0603, X7R, 50V, 10%
AP_RMB0RWPI78JC3Q4CU2HBI2
180PF, 0402, C0G, 50V, 5%
AP_ISQNDOPYREC8EMGLBL3ZPD
180PF, 0603, C0G, 50V, 5%
AP_P4YI9KKJY54BP3MIU1TB4G
100PF, 0402, C0G, 50V, 5%
AP_NSTMK7VFZLV9P0LFHAXRD9
100PF, 0603, C0G, 50V, 5%
AP_0KEB2V8G0UOB5O0VLC7OH8
10UF, 0603, X5R, 6.3V, 20%
AP_SWJYBKICJ8XGH0D5S5N0G6
10UF, 1206, X7R, 10V, 10%
AP_1NCC3V6H5XC98PT9YEOGCE
22UF, 1206, X5R, 16V, 10%
AP_T24NUVUFMLC27UJZ7WZ8VK
2.2UF, X7R, 1206, 50V, 10%
AP_33EWB2XJB6F0166SHD07QM
10PF, 0402, C0G, 50V, 5%
AP_2IYAPAUIFKRK8T51PAMWGL
18PF, 0402, C0G, 50V, 5%
AP_Z6MFY78QOCBZSVNN8L1WTR
0.047UF, 0603, X7R, 50V, 10%
AP_PQHR05LMCHIFDOZRW35MLP
1000PF, 0603, X7R, 50V, 10%
AP_GY7Q0SKE6DUCZ17U4J50F0
FERRITE BEAD, BLM18P, 0603, 33OHM; OEM P/N: 302257-330
AP_E5OQEAIAPUYCAYJOA2YEE9
BEAD FERRITE, 0805, 1.5A, 330 OHM; OEM P/N: 267539-331
AP_0XU997G42N5SQCQFD973DQ
FERITE BEAD, CHIP, 0603, 120 OHM; OEM P/N: 351171-121
AP_ENDTQ48NG6G17MN15P36O1
FERRITE, BEAD, 0603, 200MA, 330OHM, BLM18HK331SN1; OEM P/N: 268373-331
AP_PCH6FUKA4XOXBEB1QTZHJY
JUMPER, CHIP, 1206 0R; OEM P/N: 124896
AP_PFVY9S27YSYJ48RARCB134
JUMPER, CHIP, 0603 0R; OEM P/N: 196042
AP_GDQDAOG7W6CUBDJOX1OSRC
JUMPER, 0402, 0 OHM; OEM P/N: 280043
AP_LBRJSPSY0KRHKM6OEBHIQ8
4.3 OHM, 0603, .1W, 1%; OEM P/N: 191465-04R3
AP_F8NXRSL9S5SESSCCRBINAU
619K, 1206, 1/4W, 1%; OEM P/N: 124894-6193
AP_LLFW62F0X5W20KJE2EUVAH
237K, 1206, 1/4W, 1%; OEM P/N: 124894-2373
AP_24CV9JQCFRPIHY5QTJ0AGI
750, 1206, 1/4W, 1%; OEM P/N: 124894-7500
AP_62XNQ6052LNJ2KC1AXND5U
33 OHM, 1206, 1/4W, 5%; OEM P/N: 124895-3305
AP_Q5GPTXBYQYKGK83SRUG89J
2 MEG, 1206, 1/4W, 5%; OEM P/N: 124895-2055
AP_UPBK5XONGIMENU2MXHKTQW
0.51 OHM, 1206, 1/4W, 5%; OEM P/N: 124895-R510
AP_OC1NVLU4AL17NZJA50AKVC
49.9 OHM, 0805, 1/10W, 1%; OEM P/N: 133625-49R9
AP_DDCON9K6JQU3Q5IQISZN0O
4.99K, 0805, 1/10W, 1%; OEM P/N: 133625-4991
AP_57DGXCJHCEZO3QLTRPDWRE
10 OHM, 0805, 1/10W, 5%; OEM P/N: 133626-1005
AP_94TODRW4BKDV8PMG3UJ075
100 OHM, 0805, 1/10W, 5%; OEM P/N: 133626-1015
AP_EC6GGOD6OSTSHLQUOPK10W
2.2 OHM, 0805, 1/10W, 5%; OEM P/N: 133626-2R25
AP_PW2WR0K8MY8XX2DQ8QHBNY
100K, 0402, 63MW, 1%; OEM P/N: 268361-1003
AP_O4V50TSMRMXKAK4QCIGC9J
1.0M, 0402, 63MW, 1%; OEM P/N: 268361-1004
AP_Q8JIKK2QV6J8WJN9KP5G3D
49.9K, 0402, 63MW, 1%; OEM P/N: 268361-4992
AP_H11WBYBHH903XYJ3UNAFOD
47.5K, 0402, 1/16W, 1%; OEM P/N: 268361-4752
AP_BXC87ZYAHIH2D9BJD5ELLJ
20.0K, 0402, 63MW, 1%; OEM P/N: 268361-2002
AP_RP3TP2JQ3ERWJWUN0YVSEK
15.0K, 0603, SMD, 100MW, 1%; OEM P/N: 191465-1502
AP_0CGHHK63DL2JDB1J40XUHR
13.3K, 0402, 63MW, 1%; OEM P/N: 268361-1332
AP_BDKK3B0IJLN54JMT5CLGEW
11.80K, 0603, SMD, 100MW, 1%; OEM P/N: 191465-1182
AP_G37LLA1K467N25G7BBC994
10.0K, 0402, 63MW, 1%; OEM P/N: 268361-1002
AP_PGPSIM5HTKHTUINKRHE531
10.0K, 0603, SMD, 100MW, 1%; OEM P/N: 191465-1002
AP_FWKY504DUDL4FLJO7Z42GA
8.06K, 0603, .1W, 1%; OEM P/N: 191465-8061
AP_X0NKWPQ5B8RSAY689010LG
7.87K, 0402, 0.063W, 1%; OEM P/N: 268361-7871
AP_LO8TGYPGHHV8KSZMGB4GRS
5.36K, 0402, 63MW, 1%; OEM P/N: 268361-5361
AP_YVZWMSPL5MTOQF9JB3NIUE
4.75K, 0402, , 1/16W, 1%; OEM P/N: 268361-4751
AP_6IFP7K4C0DGQBT8RBTPM9A
4.22K, 0603, .1W, 1%; OEM P/N: 191465-4221
AP_ZD232U8TJY6T78UINEXFU4
3.9K, 0603, .1W, 1%; OEM P/N: 191465-3901
AP_HXNG69O1XGNGNNPTBIDSHH
3.32K, 0402, 63MW, 1%; OEM P/N: 268361-3321
AP_PHGQ95129TB2VI02WWXAU0
3.01K, 0603, .1W, 1%; OEM P/N: 191465-3011
AP_4TOLE0HHCMCM70GPHYPGLG
2.55K, 0402, 63MW, 1%; OEM P/N: 268361-2551
AP_R6F5O4RUFUYUNDHU4N10NM
2.49K, 0603, .1W, 1%; OEM P/N: 191465-2491
AP_JBTTM8SUAFPP0IXMDSJ6R5
2.32K, 0402, 63MW, 1%; OEM P/N: 268361-2321
AP_J0XJSTHGEYQSQL0P3ONNEW
2.2K, 0603, .1W, 5%; OEM P/N: 199403-222
AP_GE9N4ED75B50GN3PINBJCZ
1.00K, 0402, 63MW, 1%; OEM P/N: 268361-1001
AP_8CS0JP07TBQ70IOFQY49XB
1.00K, 0603, SMD, 100MW, 1%; OEM P/N: 191465-1001
AP_ESXLK7ZE4W9Z8WR64DOZ0U
787 OHMS, 0402, 63MW, 1%; OEM P/N: 268361-7870
AP_MJI14SLT4TU2IQXR3T0YUS
499 OHM, 0603, SMD, 100MW, 1%; OEM P/N: 191465-4990
AP_9DRQIWMPPVLBI3KKC49KNS
470 OHM, 0603, SMD, 100MW, 1%; OEM P/N: 191465-4700
AP_OYZUVE373JZ9HDVNYRDZJJ
330 OHMS, 0603, SMD, 100MW, 5%; OEM P/N: 199403-331
AP_7TK4Z0S0UOAWXGTE2T9GSY
200 OHM, 0603, .1W, 5%; OEM P/N: 199403-201
AP_OELTZ0LU1ETE0GICF1TY47
100 OHM, 0402, 63MW, 1%; OEM P/N: 268361-1000
AP_IHIZI1TRM2YJNXDJYOO5OV
75 OHM, 0603, .1W, 5%; OEM P/N: 199403-750
AP_IL5K1SY73R1JTL33QS0SFS
33 OHMS, 0603, .1W, 5%; OEM P/N: 199403-330
AP_7KZ6BWWT3S6SH4ZRNI0QZ9
33 OHMS, 0402, 1/16W, 1%; OEM P/N: 268361-33R0
AP_O1XS9Z2SQ6OTJ5NNY5SBD9
10 OHM, 0402, 63MW, 1%; OEM P/N: 268361-10R0
AP_QGK51J10NLWLSJYRBS8KNI
10 OHM, 0603, .1W, 5%; OEM P/N: 199403-100
AP_IG5F8DQSW3Q3YXM94MVL2F
4.7 OHM, 0603, .1W, 5%; OEM P/N: 199403-4R7
AP_E03DBV89RZ330IUAZ3MGMQ
1.0 OHM, 0603, .1W, 1%; OEM P/N: 191465-01R0
AP_R3GPTB8B8V7T0ZD55DRULY
BASS KNOB; OEM P/N: 627282-0010
AP_C28KY32815PSN8XU5XZE41
NAMEPLATE, DIAMOND CUT, 40mm, BLK, 2PIN; OEM P/N: 342497-5120
AP_W2717XE7QIVJCNMOCWLU3O
FOOT, ROUND, W/PSA; OEM P/N: 352906-0010
AP_OA6B97X6RREM579SE13RAP
TUBE, RUBBER, TOP CAP PINS, FOR USE WITH METAL GRILLE; OEM P/N: 716897-0010
AP_PU41NJMJW2F163NSOFLITC
SCREW, M3.5X8, SHIELD, POWER SUPPLY; OEM P/N: 358955-0010
AP_ZJYOQYAI9RESYAYX4M0P2D
SCREW, M4X15, TOP COVER; OEM P/N: 358954-0020
AP_GMMNM5F34E2LKSERAP20H8
SCREW, M3X12, PORT, DRIVER, PCB COVER; OEM P/N: 358953-0010
AP_1ELCQB3QTRNCT4QQPSBHHR
SAFETY WARNING STICKER, TOP COVER; OEM P/N: 356754-001S
AP_522N0AWK9RTQ1YKKRB6TMV
LABEL, SERIAL NUMBER; OEM P/N: 716903-0010
AP_4NIS9U0J2CUM2PO7TEEEE6
LABEL, I/O PANEL, SOLO 15 - 10; OEM P/N: 638278-0010
AP_ZWXILYFRJF8EU9W86A8VTD
CARTON, OPF, TV, PED, SPKR, SOLO 15; OEM P/N: 637746-0010
AP_OUD5WUURRDN1MAUJX396YT
PACKING, TRAY, PULP; OEM P/N: 628935-0010
AP_20DEJDZ2X9D4V6534QV3HP
FOAM BAG PRODUCT; OEM P/N: 721802-0010
AP_EIJR6XTZ6D2RLBPSKK5NIC
PACKING, INSERT, 425X213, ABD; OEM P/N: 638012-0010
AP_AUZXD8HBUCQX2ZB3TK6TKP
HANDLE, PLATE, HDPE, 6.50X1.31X0.064IN; OEM P/N: 373581-0010
AP_YOPG4OWAP6E6OMRSH60CIW
HANDLE, PLASTIC, LDPE, 7.46X0.63X0.10IN; OEM P/N: 373583-0010
AP_Y3RS1D98OB54D6HDPY11A1
GUIDE, OWNERS, SOLO 15/10, AST; OEM P/N: 717641-0010
AP_Q5Z11KZZTSPLKNJI4XY88J
GUIDE, OWNERS, SOLO 15/10, EUR; OEM P/N: 717642-0010
AP_JYZ26D2NZW90KSYPSAIH8R
GUIDE, OWNERS, SOLO 15/10, APAC; OEM P/N: 717643-0010
AP_TUTSYQGXRYQ2638WZ6EMEG
GUIDE, OWNERS, SOLO 15/10, JAPAN; OEM P/N: 717644-0010
AP_QEHJPD0IXJVRILD83TBNAS
GLOBAL WARRANTY CARD, 1 YR.; OEM P/N: 324486-0010
AP_7HH8HW4DH0EPMJ5I6TWPDB
SHEET, COMMIT LETTER; OEM P/N: 343108-0010
AP_S8FPDRNP93ZMJU4Y33GDT6
CONTACT, SHEET; OEM P/N: 722935-0020
AP_3UU8FGU80T6AQ0TW2J8LI6
AU/NZ WARR SLIP SHEET 8.5 X 5.5; OEM P/N: 355731-0010
AP_IWZP9NWA18PZ3JV79TB5P2
LABEL, WAFER, SEALING, 2.5X2.5IN, CLEAR; OEM P/N: 355963-0010

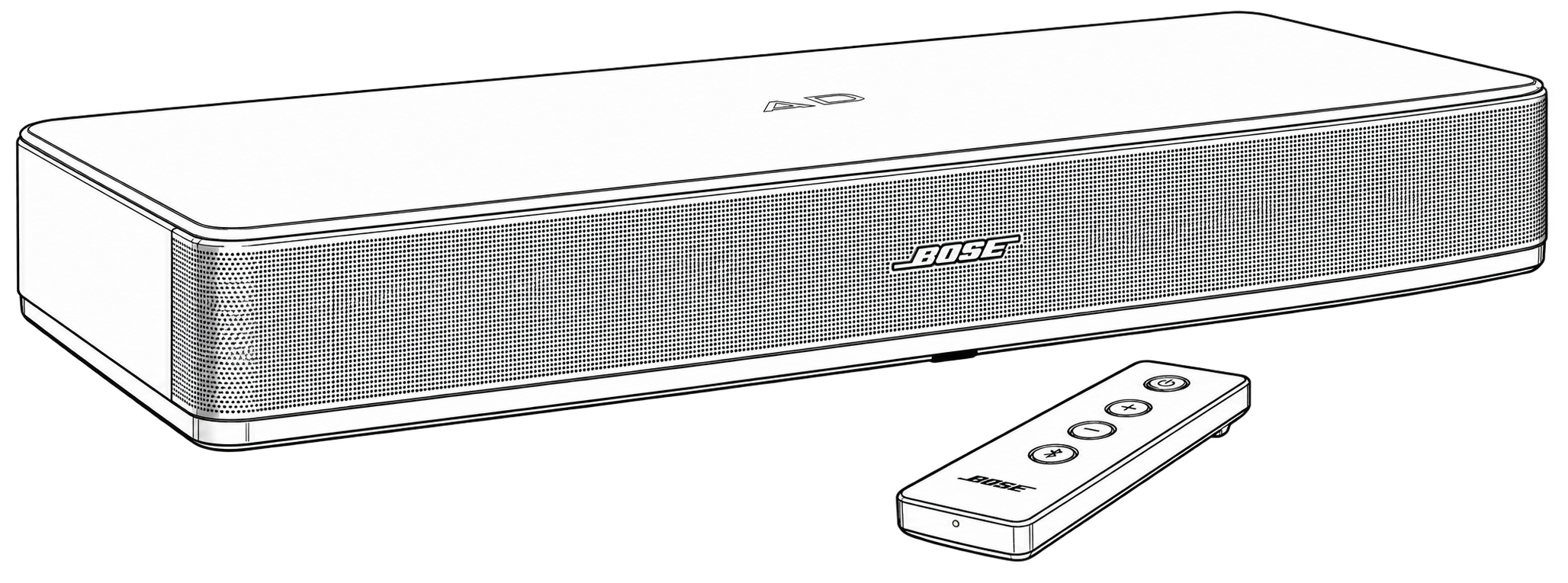

Repair, service & parts, for your Bose Solo 15
- 1 Repairs are performed on a best-effort basis. Acme Revival utilizes a network of sophisticated technicians and engineers with diverse service offerings; despite this, factors that influence the repair outcome may ultimately prove unsuccessful. Acme Revival makes no claim that it can, guarantee a repair before your device is sent in for diagnostic evaluation; even then, repair and diagnostic work are not mutually exclusive. Despite well-intentioned quoting, repairs may still prove unsuccessful.
- 2 Parts known to Acme Revival via Acme’s Neural Network and documented discovery. These parts may not represent OEM cataloging nor does Acme Revival guarantee display accuracy. Always check with Acme’s Help Desk to ensure availability and accuracy. Parts may not be in new condition, may be unavailable, discontinued, or not offered for independent sale.
