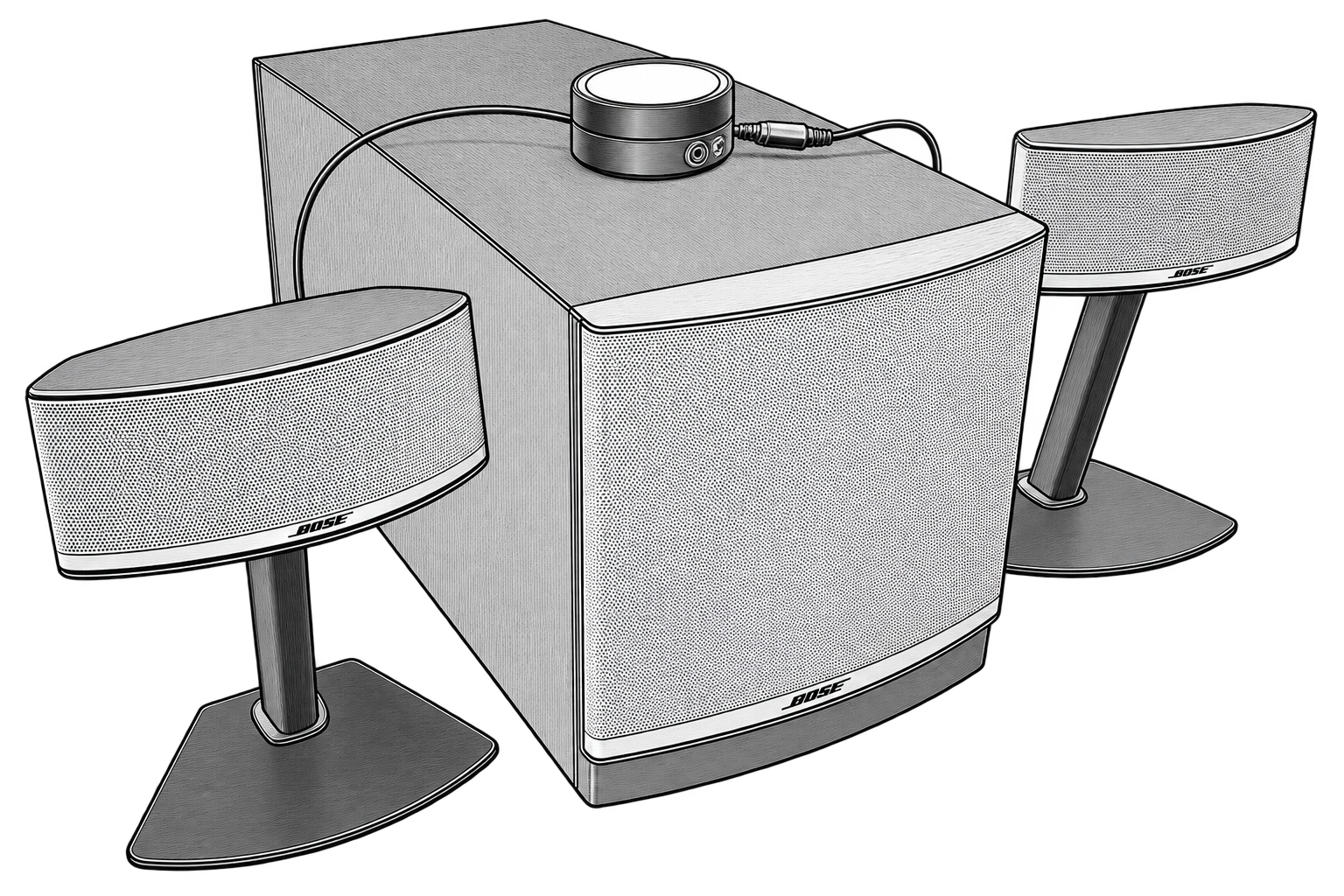

Acme Revival connects your Bose Companion 5 with a nationwide network of skilled electronics technicians built to fix what manufacturers won't. Start online, ship it in, and track every update and outcome in one transparent Service Dashboard.
1
Repair
$49.00
FLAT-RATE REPAIR (LABOR)
90-Day Warranty
No-Fix Repair Guarantee
Revival’s flat-rate repair service is a best-effort attempt to diagnose and repair the reported issue. The advertised price covers technician labor only and will not increase.
If replacement parts are required, we’ll provide a separate quote for your approval before proceeding. If we can’t complete the repair, your labor charge will be refunded. A separate $25 Repair Network Service Fee applies, along with return shipping & handling. These charges are non-refundable.
Repairs may be limited by device condition, prior damage or modification, safety concerns, or unavailable manufacturer-controlled parts or resources.
Most Recent Repair Requests:
2 (Known) Parts List:
AP_TJ11CHLQZLTE91F77FS58S
ASSY, BBOX, COMP 5, 230V; OEM P/N: 290172-S239
AP_C7LJOFQPGIHUOPA8G3UNVU
ASSY, BBOX, COMP 5, 120V; OEM P/N: 290172-S139
AP_FBAE6CTV8HC2A5I5BUZW9R
BASS MODULE ASSY, 230V, PREVIOUS SERVICE VERSION; OEM P/N: 290172-0239CS
AP_UD5O95TQPB0CG7TCVJ195U
BASS MODULE ASSY, 120V, PREVIOUS SERVICE VERSION; OEM P/N: 290172-0139CS
AP_96GHZ3LVQVPRYAW7MMO2NT
ARRAY/STAND ASSY, RIGHT; OEM P/N: 300634-001
AP_B1CUAYURB7T4SBSXDYXYJ4
ARRAY/STAND ASSY, LEFT; OEM P/N: 300635-001
AP_4WG5CGUPFAJVIFBFCENO55
ASSY, PCB, DSP, ROHS, EURO; OEM P/N: 303250-202
AP_CQ9KL0NE1IOJWN0FYVYA8Z
ASSY, PCB, DSP, ROHS, EURO, PREVIOUS REVISION; OEM P/N: 303250-102
AP_DEUYD7996I4U4EEZJ0QRK8
ASSY, PCB, DSP, US/JAPAN; OEM P/N: 299766-201
AP_6E8OXSIQS85P5XEQ79XIIA
ASSY, PCB, DSP, US/JAPAN, PREVIOUS REVISION; OEM P/N: 299766-001
AP_QWKEZGVY88412AYAWZQMAV
ASSY, PCB, DSP, EURO, PREVIOUS REVISION; OEM P/N: 299767-002
AP_F52RMLCSMZELL88UV2ABAW
PCB ASY, INPUT/OUTPUT, ROHS, EURO; OEM P/N: 299765-002
AP_V39DFLGDD67ME776F456F2
PCB ASSY, INPUT/OUTPUT, US/JAPAN; OEM P/N: 299764-001
AP_3WKLZ0K4NYKZ59C51JNWGA
REMOTE CONTROL ASSY; OEM P/N: 295974-001
AP_ZUJDFAXFL6Z599UXRUB9SD
CONTROL POD ASSY; OEM P/N: 294599-001
AP_CM4GMS6YSACIG1ZOK3YP6H
WOOFER ASSY, BASS MODULE
AP_VHKW64ZCCYTADS78WCX68A
POWER TRANSFORMER ASSY, 120V, BASS MODULE
AP_Y92447E6V4QEYJ63UEFIZY
POWER TRANSFORMER ASSY, 230V, BASS MODULE
AP_PCYDNGPV2IWOI7Y6CGXATX
SATELLITE ARRAY DRIVER ASSY, RIGHT
AP_2YE75HUSGCO3GIBYT8SYKZ
SATELLITE ARRAY DRIVER ASSY, LEFT
AP_QPHFA5HC2RWT240YLODPZW
SATELLITE STAND ASSY, RIGHT
AP_YM4DM1L98MFF5AJBPNCEON
SATELLITE STAND ASSY, LEFT
AP_KE9ZDXLH65CA13CPJPPSIJ
CONTROL POD PCB ASSY
AP_WVVOGW36MFY1MTWCG0YSCO
CONTROL POD CABLE ASSY, 10-PIN
AP_2U7Z93NYWF6CJNGSFUUZ9N
CONTROL POD ROTARY VOLUME RING ASSY
AP_5AWD1IE3AR8IP5LYFP3TE5
CONTROL POD TOUCH-MUTE SENSOR ASSY
AP_UEVYND8EVZM13OL537VFPO
CONTROL POD LED INDICATOR ASSY
AP_IWUMJ0PXRTI8J91XGE539G
CONTROL POD AUX INPUT JACK ASSY
AP_K5RH6KL1ZDD06R0PBZ6IIX
CONTROL POD HEADPHONE JACK ASSY
AP_2Z5PVN8DH8U4SMEB9S9Q9P
COMPANION 5 SERVICE FIRMWARE UPDATE
AP_M4VIZY4A4W5IRGOP2BPVFY
COMPANION 5 SERVICE FIRMWARE PROGRAMMING MEDIA
AP_MTM0H27GAT6EABKV2MNC3M
COMPANION 5 USB/AUDIO FUNCTIONAL TEST FIXTURE
AP_T5OCPRZ5EMGABX01H3F3WN
COMPANION 5 CONTROL POD FUNCTIONAL TEST FIXTURE
AP_W801HPODEWGQRKUK6C2AP5
COMPANION 5 SATELLITE AIR-LEAK TEST FIXTURE
AP_TAH3UYDUNBV6YMWQZT10F6
COMPANION 5 BASS MODULE AIR-LEAK TEST FIXTURE
AP_RRBW9CPQ5X1EVGDH5XTDJQ
CABLE, USB 2.0, TYPE A TO B, 10FT; OEM P/N: 292477-002
AP_5L7L9GUUX2XZ79JNNKIS67
CABLE, USB 2.0, TYPE A TO B, 6FT; OEM P/N: 292477-001
AP_B2PTNVHMKEKBWLPNQ965C5
LINE CORD, 120V, PDL DET, BLK; OEM P/N: 262814-001
AP_V5AMU65YDRXPB5NXY4N0QP
LINE CORD, 100V, DET, NONPVC, BLK; OEM P/N: 286080-001
AP_G2RPVR7V3S00FCRHWLT7ZP
LINE CORD, 230V, UKS, DET, BLK; OEM P/N: 280138-001
AP_DEXR6XFISDI0Q1JC1LOE4G
LINE CORD, 240V, AUS, DET, BLK; OEM P/N: 284243-001
AP_UDH1O5Q0NK8HISFBMUG6SK
LINE CORD, 220V, EUR, DET, BLK; OEM P/N: 280135-001
AP_SKBGSC7KFEDVWMB4K5EZS5
CABLE, 8 CONDUCTOR; OEM P/N: 291574-150
AP_DRV571XCQSRPUJPF0FTZSA
HARNESS, USB, TYPE B TO MINI B; OEM P/N: 296603-001
AP_0J2HW91KLV22JH541MFATL
HARNESS, IDC, FLAT CABLE; OEM P/N: 289388-007
AP_GRVN9X1XSM8AOKW8TIQDZI
HARNESS, IDC, FLAT CABLE; OEM P/N: 289388-024
AP_8XCZDGZYX2HKMTHJXMV6E4
HEATSINK, COMPANION 5; OEM P/N: 296119-001
AP_1QRDROL6DPGMP2KXEI5UEM
BRACKET HEATSINK; OEM P/N: 296120-001
AP_8T6SOLBYB5F2VU8IBFE5QD
COVER REAR BASS MODULE; OEM P/N: 296122-002
AP_OMPNGPUU523YIIEBITGGOQ
BRACKET, INPUT/OUTPUT, PCB; OEM P/N: 292181-002
AP_ZVDLOWXBUXN4JZS516RHA3
KNOB, VOLUME CONTROL, BLACK; OEM P/N: 294599-001
AP_OKSI0DSHINM4ABOJ8T5JHG
LABEL, I/O,BASS MODULE; OEM P/N: 295923-001
AP_JLXC1XD59S4DPOBWT8CQJI
FOAM, GRILLE, ARRAY,.125"; OEM P/N: 272036-002
AP_NFI9QSL1713UL8T083YB4Y
PAD, THERMAL, DIODE; OEM P/N: 295975-001
AP_I2V2O3JGRXTAQBLY7PYLZ7
PAD, FOAM, .25" X .75" X .06; OEM P/N: 278144-001
AP_04560R2RSY0OWAXN3JV6SH
CLIP, SPRING, KNOB; OEM P/N: 262542
AP_UAM8DVV0SXH3FZE432LFFR
FOOT, RUBBER, PSA BACKED, 4 PACK; OEM P/N: 297482-001
AP_IQ9I7BK21KIGCYPIVYHOVZ
IC DSP TMS320DA7051, 144RFP; OEM P/N: 289857-7051
AP_LBUMTPWT6E5SUB0HOQ93BR
IC, CODEC AUDIO, 24-bit; OEM P/N: 289863-001
AP_GC1EE3JTMJ1FNU716EH5GT
IC,MICRO CONTROLLER, 8-BIT; OEM P/N: 289864-001
AP_0DXVCVXZXWEV1VZFBHPW1Z
IC, EEPROM, 512K, Serial, 2-WIRE; OEM P/N: 289858-0512B
AP_GTK23O89WDXWV5EBDY0B9E
IC, EEPROM, 64K, 2.7V, 2-WIRE; OEM P/N: 293549-064D
AP_3IR1DHLM9H46UQQSLHLPIN
IC, POWER AMP, PSO-20, TDA8566TH; OEM P/N: 257975
AP_ZNSBXU6IKCVUKNVTAB05IS
IC, POWER AMP, PSO-20, TDA8566 (RoHS); OEM P/N: 289447-001
AP_DVU2V085DSGRO8NS5MNOK7
IC, SWITCHING, 1MHz, BUCK CONV; OEM P/N: 288281-001
AP_M94UZFY2O0T0HCLOQPME4A
BUCKCTLR, SO-8, PWM, 500kH, 40V, 5%; OEM P/N: 275415-004
AP_D4PZJ0U9T55F2B4ZKY2HOS
IC, OP AMP, DUAL, RAIL TO RAIL; OEM P/N: 277563-001
AP_GJWZ0WZU8X7ZDKIFIF9VSF
IC, VOLTAGE COMPARATOR, LM339; OEM P/N: 187618-001
AP_O1158JP5Q559F7VBRZ9U0S
IC, VOLT REG, ADJ., 500MA, DPAK; OEM P/N: 258496-001
AP_684ZK8SAFLIDHG73WE4H0Z
IC, VOLT-REG, SOIC-8, LM317LM; OEM P/N: 173795-1
AP_1H56AZW9N8HNH68XPBSA4R
XSISTOR, MOSFET, DUAL N, 50V, 3A; OEM P/N: 289259-001
AP_RJ71LQTY79169Z5J3OIIQZ
IC, ET, SOT-23, MAX809, 2.63V; OEM P/N: 191158-06
AP_WQR63XBDHPP0VGECZG6SWF
MFET,60V,27A,NON-ISOLAT; OEM P/N: 271765-002
AP_JY5CDVQ0DM4J3DF3QQPZOL
XSISTOR, PNP, SOT-223, 60V, 800mA; OEM P/N: 269870-001
AP_Q3YI1BVAI84XT7ABK3SAOU
XSISTOR, P, 50V, 2SA1341; OEM P/N: 146818
AP_YKVL95GV7YUX2QIVNB6L5D
XSISTOR, BPLR, P, 40V, 200mA, SOT23 (RoHS); OEM P/N: 287939-001
AP_K7FIAKY8HZTEET4LMMI55C
XSISTOR, BPLR, P, 40V, 200mA, SOT23; OEM P/N: 148596
AP_YZHA7LH6QXIWLSWI6U41SF
XSISTOR, BPLR, N, 50V, 100mA, SOT23 (RoHS); OEM P/N: 287935-001
AP_RUBRNWW8CLQ4SOE90JFAJK
XSISTOR, BPLR, N, 50V, 100mA, SOT23; OEM P/N: 146817
AP_HESW7SPJ8GKQ0BE6S66YYY
XSISTOR, BPLR, N, 40V, 200mA, SOT23; OEM P/N: 146819
AP_P2COQKQIVI31HIHDUIKNFS
DIODE, SMD, 10A, 200V, S10D; OEM P/N: 256405-200
AP_T22VRMKJHNV7EZ6RR6WIKA
DIODE, SWTCHING, SCHOTTKY, 1A/40V; OEM P/N: 195637-3
AP_PP7CRL4YJQJTO6RBH48WGV
DIODE, ZEN, SOD-123, 6V, .5W, 5%; OEM P/N: 174265-5233
AP_MP22VACQ4FAXZGUVNDYQO7
DIODE, ZEN, SOT-23, 9.1V, 225MW, 5%; OEM P/N: 135247-5239
AP_HBG0ZQNPDWK21JJ7V2CUTD
DIODE, ZEN, SOT-23, 5.1V, 225MW, 5%; OEM P/N: 135247-5231
AP_2T7OD45D3E19K8YGV60SJR
DIODE, SOT-23, BAV 99; OEM P/N: 147239
AP_G67H6L71FYMJ7T0OZ4HKJ4
CRYSTAL, 6.0MHz,; OEM P/N: 291429-001
AP_GB5ORAALU4ZIR0389YTOWD
22uH, 0.86A, SMT, 20%; OEM P/N: 290997-220T
AP_FIF7GU7PQ6XSFCHDNFDNJ2
560uH, 0.22A, SMT, 560uH, 20%; OEM P/N: 289382-561T
AP_N6FW7ILJ7JBTN54CR75MSW
330 OHM, FERRITE BD, IND0603, 200MA; OEM P/N: 268373-331
AP_6WFBW9I7F84WT58IFY6Q2U
15000uF, EL, SNP, 105C, 25V, 20%; OEM P/N: 261614-153EB3
AP_VJE93RNC59NF462MA5VT66
4700uF, EL, SNAP, 105C, 50V, 10%; OEM P/N: 261614-472HB3
AP_34YNWINUG32IUBJPGRL0T5
470uF, EL, 85C, 16V, 20%; OEM P/N: 296512-471C
AP_MK9O8BN3GUZAHHJEEMJEKN
100uF, 7343, LO-R, TANT, 10V, 10%; OEM P/N: 275411-107
AP_LG00MI0E5NDFPPH2DF829C
100uF, EL, 85, 10V, 20%; OEM P/N: 177902-101A
AP_3ORPEE0YABJAUN7HQHHEOW
22uF, EL, 85C, 50V, 20%; OEM P/N: 177902-220HA
AP_LB4AGY8M6GUB9TJL9JSOEM
10uF, EL, 85C, 16V, 20%; OEM P/N: 177902-100C
AP_2DKVAS514BUPWX0V7RE0CR
2.2uF, EL, 85C, 35V, 20%; OEM P/N: 177902-2R2H
AP_QF3W90WVZUE2D0G23A7SX2
1uF, EL, 85C, 50V, 20%; OEM P/N: 177902-010H
AP_3682P2YH6NVJFQUI75RKDA
.047uF, 0805, X7R, 50V, 10%; OEM P/N: 286499-473
AP_9TT1NYP62QL93FMEKSQMV5
.047uF, 0805, X7R, 50V, 10%; OEM P/N: 133623-473
AP_U4JJTQCL0G5R2BDBR6CTUJ
.047uF, 0603, X7R, 25V, 5%; OEM P/N: 196999-473
AP_73XOQK0VZ16ZWCC2SMELCD
.033uF, 0603, X7R, 50V, 10%; OEM P/N: 191470-333
AP_O6FIIG4YW2XBCIFQ6M586B
.022uF, 0603, X7R, 50V, 10%; OEM P/N: 191470-223
AP_TO83Q61QAJLIM01GN7OIFB
.015uF, 0603, X7R, 50V, 10%; OEM P/N: 191470-153
AP_9FS3HF0VLCDK4XW30MT29Y
.01uF, 0603, X7R, 50V, 1%; OEM P/N: 191470-103
AP_BTD2E14FMO8QVAJSYW97WC
0.1, X7R, 0603, 10%, 50V; OEM P/N: 191470-104
AP_VW2MT71E8WZ4JMM582V4RL
2200PF, 0603, X7R, 50V, 10%; OEM P/N: 191470-222
AP_K39OSHK41IJPH60QCXJAWI
1000pF, 0603, X7R, 50V, 10%; OEM P/N: 191470-102
AP_RY75FGE97TIWQ1XCFIQX38
560pF, 0603, X7R, 50V, 10%; OEM P/N: 191470-561
AP_TM9GON1X3RJQ91JUCUIU96
470pF, 0805, COG, 50V, 5%; OEM P/N: 133622-471
AP_VQXM5PNKMHRPWIFPO89X27
470pF, 0603, COG, 50V, 5%; OEM P/N: 188454-471
AP_1UZ8TUNA65A4JLGO15KT2B
100pF, 0805, COG, 50V, 5%; OEM P/N: 133622-101
AP_UT4RLX2M765C5F7JUIIDQZ
100pF, 0603, X7R, 50V, 10%; OEM P/N: 191470-101
AP_BMC1HJ9M5WBGSSDLHY2YN5
100pF, 0603, COG, 50V, 5%; OEM P/N: 188454-101
AP_T88QKT6UXYANFF5SM15UG2
47pF, 0805, COG, 50V, 5%; OEM P/N: 133622-470
AP_TTK750Y6AGP1DNCTJEYAJ2
27pF, 0603, COG, 50V, 5%; OEM P/N: 188454-270
AP_D1NITQS5HCGFYX53N2T7E1
10pF, 0603, COG, 50V, 5%; OEM P/N: 188454-100
AP_CBTL5BCF7EWSMFXPYC2WCG
33000pF, X7R SMD, 0603, 25V; OEM P/N: 257154-333K25
AP_CLBBDR6BCBG0CFM6HX9BLN
PTC, TEMP SENSE, 105C, 20%; OEM P/N: 258497-105
AP_8SCOE3AYS0LKEINO3JKK0Y
1M, 1206, 1/4W, 5%; OEM P/N: 124895-1055
AP_UA468935NXTK2N7QRPSTI6
3.9K, ARRAY, SMT, 4 POS, 5%; OEM P/N: 186433-3924
AP_JGKJK5DNR7GIHJZ9BUGW2W
1.8K, ARRAY,SMT, 4 POS, 5%; OEM P/N: 186433-1824
AP_892Y6Z9HX42INU2XY0JJ0H
4.7K, ARRAY, SMT, 4 POS, 5%; OEM P/N: 186433-4724
AP_WKP4G7JRM8LI00235S89NR
100 OHM, ARRAY, SMT, 4 POS, 5%; OEM P/N: 186433-1014
AP_H6ZVUX4H5ZT6XSW2Q4SQCE
392K, 0603, 1W, 1%; OEM P/N: 191465-3923
AP_FF0R8OI3NQSRTRA53U4J4I
365K, 0603, 1W, 1%; OEM P/N: 191465-3653
AP_GUWW2817YV15BU420G4WL6
150K, 0603, .1W, 1%; OEM P/N: 191465-1503
AP_BKLZ4HKMQCTN7BYKGFWWTZ
39K, 0603, SMD, 100MW, 5%; OEM P/N: 199403-393
AP_W7WCW4OGGSERS8U5SDN1VF
31.6K, 0603, .1W, 1%; OEM P/N: 191465-3162
AP_E2N58LBIQHCALU7WR80YMP
29.4K, 0603, .1W, 1%, PREVIOUS R19; OEM P/N: 191465-2942
AP_213TKCE7U37I63JJ8Q5EV9
23.7K, 0603, .1W, 1%; OEM P/N: 191465-2372
AP_E1C4KHL5CULPM6LV6X8IXU
20K, 0603, .1W, 5%; OEM P/N: 199403-203
AP_KN06VM0D31JVNU0H4NWSV8
19.6K, 0603, .1W, 1%; OEM P/N: 191465-1962
AP_2VMLJRKE8I7J6IWDM75OAK
16.5K, 0603, .1W, 1%; OEM P/N: 191465-1652
AP_5ZXKYKE6MDL5JSMHS9R2TK
12.1K, 0603, .1W, 1%; OEM P/N: 191465-1212
AP_V6VP2UIQE1KD4ZPFXZ489I
11K, 0603, .1W, 1%; OEM P/N: 191465-1102
AP_660GYH8722FQH6QSTEDEQN
10K, 0603, .1W, 5%; OEM P/N: 199403-103
AP_E4PMMXA94H54XDNH5TKA83
10K, 0603, .1W, 1%; OEM P/N: 191465-1002
AP_9B9ADDRIXJO05CG4WEI38T
9.3K, 0603, .1W, 1%; OEM P/N: 191465-9311
AP_F5FE1G4JM8W9JUWAN2P7NO
8.25K, 0603, 1W, 1%; OEM P/N: 191465-8251
AP_6UJJMT5DUEJ0QXLTZP15D3
7.87K, 0603, .1W, 1%; OEM P/N: 191465-7871
AP_Y6J3XTBRRW9TNK4HJM976F
7.15K, 0603, .1W, 1%; OEM P/N: 191465-7151
AP_6F2PJW4D6SOBDX9CZRM88K
6.8K, 0603, .1W, 5%; OEM P/N: 199403-682
AP_DC1ZJD8ZY3YBQ8667JAWHF
5.9k, 0603, .1W, 1%; OEM P/N: 191465-5901
AP_F2M48KVYTDTBXJJX6WZ1I7
5.11K, 0603, .1W, 1%; OEM P/N: 191465-5111
AP_NX9XYPAR7SBPWSIVH14026
4.7K, 0603, .1W, 5%; OEM P/N: 199403-472
AP_D9SX5UQC4T1R553LVJ72YV
4.3K, 0603, .1W, 5%; OEM P/N: 199403-432
AP_5I8ATY0F3U52RYST9Q3SL8
3.09K, 0603, .1W, 1%; OEM P/N: 191465-3091
AP_NHCGCAPFCQ4CFE033QIYMM
2K, 0603, .1W, 1%; OEM P/N: 191465-2001
AP_5L523NEXB75ODBVGQ9YPO4
1.82K, 0603, 1/10W, 1%; OEM P/N: 191465-1821
AP_U9QMUY712H41LVCNVHG0ZX
1.5K, 0603, SMD, 100MW, 5%; OEM P/N: 199403-152
AP_YCA12X1I3U73LRTE8VSFCH
1K, 0603, .1W, 1%; OEM P/N: 191465-1001
AP_3MSCA1WHED48TBMZNBHOTR
750 OHM, 0603, .1W, 1%; OEM P/N: 191465-7500
AP_Q4YIGWD4GH8BRMQIINAUBZ
365 OHM, 0603, .1W, 1%; OEM P/N: 191465-3650
AP_FL1YK9ME51QQVKNO941N31
100 OHM, 0603, .1W, 5%; OEM P/N: 199403-101
AP_Q9KGM68H8MVILIQ5D1OMHK
47K, 0603, .1W, 5%; OEM P/N: 199403-473
AP_4U9BK8KNWUUCRFLKKQLMHU
27.4 OHM, 0603, .1W, 1%; OEM P/N: 191465-27R4
AP_HM33BR9ZDHRFYNNHF1OFIL
15 OHM, 0603, .1W, 5%; OEM P/N: 199403-150
AP_PSCPS66MSQCM17D9SNBT92
10 OHM, 0603, .1W, 5%; OEM P/N: 199403-100
AP_IF0ZTVX0G2MY32GI2WHPOZ
9.09 OHM, 0603, .1W, 1%; OEM P/N: 191465-9091
AP_5ISCWZ0AFVITC8PP3W5C15
4.7 OHM, 0603, .1W, 5%; OEM P/N: 199403-4R7
AP_BLUONFWF6UPXX7TGGYOOBO
3.32 OHM, 0603, 1W, 1%; OEM P/N: 191465-3R32
AP_BUNSS1AVEQSBPH19X76JIL
JUMPER,CHIP, 0805; OEM P/N: 133627
AP_5VK79KNJEPNWN20K8C9KYK
10K, POTENTIOMETER, 1B, 20%; OEM P/N: 273741-001
AP_XV7LRIRTHQQ7EPM88RXVL8
RES, CF, 1/4W, 5%, 10K; OEM P/N: 120968-1035
AP_A5LNRPZE6Y36HAAII2TC1X
FUSE, 2.0 AMPS, AXIAL, US/JAPAN; OEM P/N: 269855-02000
AP_G582JJCQ045BVBPAU9UYRE
FUSE, SLO-BLO, 1.0A, EURO/UK/AUS; OEM P/N: 298780-1000
AP_1L6V9O5I33HP1DPBU3B01B
AC CONNECTOR; OEM P/N: 273692-001
AP_QC9Q2IZJ5VUPW53A8AOXY6
CONN, HEADER, LOCKING, TOP, KEYED; OEM P/N: 271897-002
AP_9QDDG3DVZ8KZCXD98XE4UE
CONN, HEADER, DUAL ROW, R/A; OEM P/N: 278156-04
AP_ZQ0DG4GU2O4ZV8S20BVMH3
CONN, HDR, DUAL ROW, R/A,RED; OEM P/N: 278156-204
AP_HAE5Q4UJZ38RO6TQG6L1CP
CONN,HDR, DUAL ROW, R/A, BLK; OEM P/N: 278156-110
AP_TA19VU59IMHTSBSX427AIF
CONN, LOCKNG, 2.5MM, 8POS, LOC PIN; OEM P/N: 283142-010108
AP_GT36MSBZ48ICTU7FQH6VHL
CONN, HEADER, 2.5MM, THRU, 16 POS; OEM P/N: 270584-016
AP_DR67JVX6J552V99UPKKUY6
CONN, HEADER, INLINE, PCB MNT, 2P; OEM P/N: 133220-02
AP_R7ABNEF9THJZ6B9BVESWS6
CONN, HEADER, INLINE, PCB MNT, 4P; OEM P/N: 133220-04
AP_Z6WXWZQ152LJJFDA7WN458
CONN, HEADER, TYPE 2, USB MINI-B; OEM P/N: 296441-001
AP_7YTN912P32HKBE5IWAU05J
PACKING, FOAM, EPS, RS, BB; OEM P/N: 298097
AP_2Z3A3SO8IS77L2LITHXXL6
PACKING, FOAM, EPS; OEM P/N: 295570
AP_WIICD66QO49T7A16I15HOI
PACKING, FOAM, EPS, BB; OEM P/N: 300269
AP_X6XEIMB2PLSCA8XMF9SR1Q
CARTON, RSC; OEM P/N: 295572
AP_5QIN5F6GXFFMYM3BG54AJ4
CARTON, RSC, REVISED; OEM P/N: 300267
AP_2CB97RUOGSE5M1CY5LRHVG
CARTON, KIT; OEM P/N: 300267-K
AP_RYJ01FOS1B5ELACVPSODSR
POLY BAG, BASS MODULE
AP_D8FJZFAFJT8I9AKGVC0EKH
POLY BAG, SATELLITE ARRAY, RIGHT
AP_457T4CDHPVS6TCPKJ2AC54
POLY BAG, SATELLITE ARRAY, LEFT
AP_35SASS1TT418BHIIC9O4B2
POLY BAG, CONTROL POD
AP_J6FI7PKC4MW0XHFDR5HA9S
POLY BAG, USB CABLE
AP_SXWGWUR5VEM3Y32FL2S7VW
POLY BAG, LINE CORD
AP_JT6GQIPW1HDIKGT3JWP5RW
PROTECTIVE FILM, CONTROL POD
AP_ZLSQ1QYLZYUZ23TL4OR0UU
PACKING TAPE, SHIPPING CARTON
AP_UCBEZA7NJ3YJ8DPO7NKQ5B
GUIDE, OWNERS, COMP5, 3L; OEM P/N: 295925
AP_180IVKKM7G95924RM4DZ22
OWNER'S GUIDE, COMPANION 5, MULTILINGUAL; OEM P/N: AM328137_00
AP_59C2KEPL79OPAJVNV6CJYF
SERVICE MANUAL, COMPANION 5; OEM P/N: 290177-SM
AP_V0RJ8JPSCRJ5O9P2GALCVI
TROUBLESHOOTING TIPS, COMPANION 5; OEM P/N: 290177-TT
AP_L0R4FS48HUW5SUSO26OY96
SERVICE BULLETIN, COMPANION 5; OEM P/N: 290177-B1
AP_FIMMGJUAFT6G7FXDFRM6PE
SCREW, TT, 8-32X0.5, PAN, XREC/SQ; OEM P/N: 289393-008
AP_YNYU6BOUJV5D30RFC6TBXU
SCREW, TAPP, 8-11x.437, PAN, XRC/S; OEM P/N: 291575-088
AP_DED779TJQPWRX86K6UQJBT
SCREW, TAPP, 8-11x1.5, PAN, XRC/SQ; OEM P/N: 291575-088
AP_814GYMENZDSG4UQIELOHUH
SCREW, TAPP, 6-32, PAN, TORX; OEM P/N: 279948-08
AP_XMD00RBJC39TIFK7ICOZ5V
SCREW, PHILLIPS, REAR COVER
AP_QIFFCNWZ7F00FUR1OL9N7Y
SCREW, PHILLIPS, I/O PCB
AP_T84DEDMUMMCVF4SQQPIH8B
SCREW, PHILLIPS, HEATSINK MOUNT
AP_W52ZTESFOFIQ5J0ZIJSM6D
SATELLITE GRILLE, RIGHT
AP_8G6VFSJEEW9Z6QBL6HXX1P
SATELLITE GRILLE, LEFT
AP_Y7PCR9PMNKIG1X5SVHYMZ7
SATELLITE ENCLOSURE, RIGHT
AP_QKZKZSR6K0JIH206MLSLQM
SATELLITE ENCLOSURE, LEFT
AP_3PIX2B7XX9BHRN7V5Y8UPX
SATELLITE INTERNAL WIRE HARNESS, RIGHT
AP_ANENDIP03UOFP1FQ0ICNX9
SATELLITE INTERNAL WIRE HARNESS, LEFT
AP_TVY4PIDCD9KYW4XADO5KC5
SATELLITE CABLE STRAIN RELIEF, RIGHT
AP_PUN0G54ZJ6PO38W5KO5QWT
SATELLITE CABLE STRAIN RELIEF, LEFT
AP_QBWVFHR0TE9F0T713BIW36
BASS MODULE CABINET ASSY, 120V
AP_H0O9MU09PW36N08D9AJ7HU
BASS MODULE CABINET ASSY, 230V
AP_MUJJPJ1IPUCA38037URLYM
BASS REFLEX PORT ASSY
AP_I8508FQ9KBTN0PKTTH2D9W
BASS MODULE ACOUSTIC DAMPING
AP_CLRVKWX497R322I6G682UQ
BASS MODULE GASKET, REAR COVER
AP_M78CC7GROO6NOVXAI1VI1R
BASS MODULE GASKET, HEATSINK
AP_8EAOHCZHAGVR5AS2ZIF8OI
BASS MODULE CONNECTOR SEAL
AP_JS5TMI851J5LZAYGVWYTVE
SAFETY LABEL, 120V, BASS MODULE
AP_YNOLP0UVSXL7HRPU0XTGMO
SAFETY LABEL, 230V, BASS MODULE
AP_K4WUX9JW9PGVPJX6KY1TO4
SERIAL NUMBER LABEL, BASS MODULE
AP_9UA84J2EFQGBBGQ3NYHEBY
RATING LABEL, BASS MODULE
AP_TVAEM2PUAAZLOU7MQ3YPO7
REGULATORY LABEL, FCC/ICES
AP_602Y7RDRZZX37LQRY6RSJ3
REGULATORY LABEL, CE/WEEE
AP_93VWKIR929HJ9RB818VE3Y
SATELLITE LEFT/RIGHT IDENTIFICATION LABEL
AP_3R5NWSKQTTSPUAAI1TRE5A
ESD PROTECTIVE BAG, DSP PCB
AP_JHTPXKONXRAQVJOBSNALDI
ESD PROTECTIVE BAG, I/O PCB
AP_DQA1ZFAGDWCZXAJXR1MM3P
SERVICE RETURN CARTON, BASS MODULE
AP_TGC20RYRRGG53RQ6AOUZCH
SERVICE RETURN FOAM SET, BASS MODULE
Repair, service & parts, for your Bose Companion 5
- 1 Repairs are performed on a best-effort basis. Acme Revival utilizes a network of sophisticated technicians and engineers with diverse service offerings; despite this, factors that influence the repair outcome may ultimately prove unsuccessful. Acme Revival makes no claim that it can, guarantee a repair before your device is sent in for diagnostic evaluation; even then, repair and diagnostic work are not mutually exclusive. Despite well-intentioned quoting, repairs may still prove unsuccessful.
- 2 Parts known to Acme Revival via Acme’s Neural Network and documented discovery. These parts may not represent OEM cataloging nor does Acme Revival guarantee display accuracy. Always check with Acme’s Help Desk to ensure availability and accuracy. Parts may not be in new condition, may be unavailable, discontinued, or not offered for independent sale.
