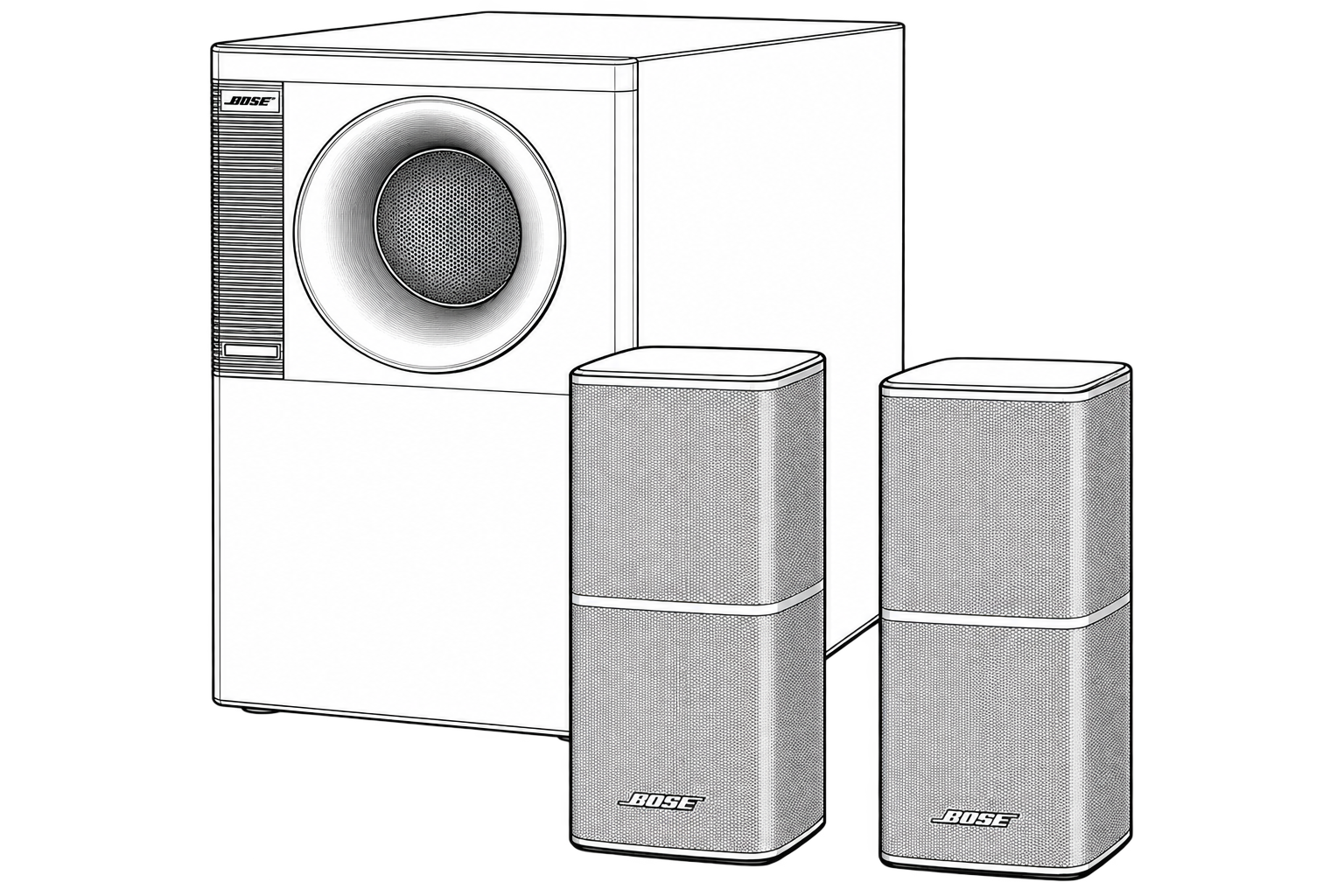

Acme Revival connects your Bose Acoustimass 9 with a nationwide network of skilled electronics technicians built to fix what manufacturers won't. Start online, ship it in, and track every update and outcome in one transparent Service Dashboard.
1
Repair
$110.00
FLAT-RATE REPAIR (LABOR)
90-Day Warranty
No-Fix Repair Guarantee
Revival’s flat-rate repair service is a best-effort attempt to diagnose and repair the reported issue. The advertised price covers technician labor only and will not increase.
If replacement parts are required, we’ll provide a separate quote for your approval before proceeding. If we can’t complete the repair, your labor charge will be refunded. A separate $25 Repair Network Service Fee applies, along with return shipping & handling. These charges are non-refundable.
Repairs may be limited by device condition, prior damage or modification, safety concerns, or unavailable manufacturer-controlled parts or resources.
Most Recent Repair Requests:
2 (Known) Parts List:
AP_Z89QPWQJ7IYCHUZ74L708O
MODULE ASSY, AM-25P, 120V; OEM P/N: 191170-131C
AP_MAJJTHGJKJBX9KKH7RWJ4K
MODULE ASSY, AM-25P, 230V; OEM P/N: 191170-231C
AP_ED7PK61JACU04DY37Z0E64
MODULE ASSY, AM-25P, DUAL; OEM P/N: 191170-631C
AP_R1VJMZVE51FJP6FV4M2Q8M
PCB ASSY, AM-25P, 120V; OEM P/N: 190341-001
AP_G9YGWNCKZKZOHZSPGQZI9S
PCB ASSY, AM-25P, 230V; OEM P/N: 190341-002
AP_5FUKFKM67CFPR6RAU3ZWX7
PCB ASSY, AM-25P, 120/230V; OEM P/N: 190341-006
AP_51BNTHBMN28PIHBYYJR0F9
POWERED BASS MODULE ENCLOSURE CABINET
AP_X3COKKGFGECAYSR74C8TCZ
TRANSFORMER, 115/230V; OEM P/N: 182577
AP_L45QTVCCBUSCH4V8DOK4GE
WOOFER ASSY, 5.1/4"; OEM P/N: 143357
AP_XFZMFUI6M3AQXB2QS2P3N9
SAT ASSY, BLACK; OEM P/N: 177904-19
AP_VUY9IYIGD2RNQHGXCF5C1X
SAT ASSY, WHITE; OEM P/N: 177904-29
AP_7EL82IQNVABFBUONTSQL6O
TWIDDLER™, GASKETED, 50MM, SHIELDED; OEM P/N: 184473
AP_NCI6UN0XOCPQ3O927OJEQ9
HEATSINK; OEM P/N: 172283
AP_XRV9YG4YQB5JTBHP48ZEA2
PLATE, HEATSINK, METAL; OEM P/N: 172291
AP_A03GMMSKSWKB38UIXT08AK
BASE PLATE; OEM P/N: 172288
AP_PL25U5D59NK7KQKV4RCH2N
COVER, AM9P, REG, WHITE; OEM P/N: 172278-11
AP_1IAKL79T1BSP9POXNO2IHY
COVER, AM9P, REG, BLACK; OEM P/N: 172278-12
AP_U5WQSDE0S7N15UMIS7XAAP
BRACKET, ADAPTOR; OEM P/N: 172287
AP_DOJ7G5F9V0O6KSS3P044E9
HARNESS, WOOFER; OEM P/N: 172275
AP_NI90E5AZZMPKML1LK09STC
CABLE, FFC, 16 POS.; OEM P/N: 191124-16
AP_PE1MMU5E5PXOEMAU0GVCSR
CABLE, AUDIO INPUT; OEM P/N: 188694
AP_UCOIURMKAWM2LKZYPZ375E
CABLE PACK, R, L, C, WHITE; OEM P/N: 176201-4
AP_I2U3BMPVM5Q8TKHDLSWWNV
CABLE PACK, R, L, C, BLACK; OEM P/N: 180643-4
AP_NE6CHVBDSVVWUFR7YMIQY3
CABLE, SPEAKER, REAR, WHITE; OEM P/N: 176202
AP_5XJ9I2RE6YUNW49F86R2BL
CABLE, SPEAKER, REAR, BLACK; OEM P/N: 180644
AP_6A8I2GV8JM7D5XGDRE1IRX
CABLE, RCA 6FT; OEM P/N: 181072-1
AP_5DXXJV3G1VTV1WYK1DYWOO
LINE CORD, 120V, US; OEM P/N: 146999
AP_REVKEZD2BHHSX31A3R85KV
LINE CORD, 230V, UK; OEM P/N: 134725
AP_H9ODH2LWNF81N1BBPKU5GA
LINE CORD, 230V, EU; OEM P/N: 148203
AP_CIGV7RMEQH54NQFNN0Y4V7
LINE CORD, 240V, AU; OEM P/N: 134726
AP_Q0TUC3TW5LCZ4WDXU1DMP6
GRILLE ASSY, SATELLITE, BLACK; OEM P/N: 175177-1
AP_P867EEKSNS91O7591XM3H3
GRILLE ASSY, SATELLITE, WHITE; OEM P/N: 175177-2
AP_YUHXB9YBQ5N2SD4GIG7TPQ
PIVOT, SATELLITE ENCLOSURE, BLACK; OEM P/N: 182604-1
AP_ITPI7K8UIBWUWR7QL33N4H
PIVOT, SATELLITE ENCLOSURE, WHITE; OEM P/N: 141401-2
AP_178VH090AYDMSMZZ7PKS7L
CONN, BARRIER GLTN, 2 POS, BLACK; OEM P/N: 141405
AP_X6DHCAKZT07XS5HRWWD4O2
POWER AMP, AUDIO, TDA7294; OEM P/N: 170156
AP_WPTQJZUK5XW3J4C3Z1PN8O
uC, SO-28, ST6225M6; OEM P/N: 193580-001
AP_KZHFJNBZ75DXYDQOBNDNFB
uC, SO-28, ST6225M6; OEM P/N: 190782
AP_7UHIGR5OBYSPUA8RQ17QIR
uC, SO-28, ST6225M6; OEM P/N: 190333
AP_BUPVTD4TVMLS4G25FZ1KYI
VOLUME CNTRL, DIP-16, TC9213P; OEM P/N: 147622
AP_HAA7GSBICUSL01LXBASKUT
OP AMP, POS, 36V, CA3280, DUAL; OEM P/N: 132591
AP_006TY7ZPL6XTR1YLNKB80A
OP AMP, DUAL, SO-8, NJM2082M; OEM P/N: 146820
AP_NRLW3IJJMUEFULM3GLPJ1T
QUAD OP AMP, TL074D, SOIC; OEM P/N: 186112
AP_82JC9JW0SEWFEIJS1WWU2V
OP AMP, QUAD, SO14, TL074BCDT; OEM P/N: 18895342
AP_T8M63OYJ76EIUPRJT1AZ3X
VOLTAGE COMPARATOR, LM339; OEM P/N: 187618-001
AP_2JANU8HELSATJENHDP3ORD
DUAL COMPARITOR, SO-8, LM393; OEM P/N: 148584
AP_3L6WM7KB7Y4LCV8VAS5RCH
VOLT REG, 37V, POS; OEM P/N: 137927
AP_BN8K6BPSOJM7CAU5WU4EOG
VOLT REG, 37V, NEG; OEM P/N: 137928
AP_Z3YDJSUU188KZXLJF1RLKM
EEPROM, 1KB, SERIAL, 59C11; OEM P/N: 147536
AP_A5YTJK8TBY560XNGTPSQZZ
OPTO-TRIAC, PDIP-6, MOC3023T; OEM P/N: 190334-001
AP_VZLQTX6BCWHMXSEVU4BRYH
TRIAC, TO220; OEM P/N: 178807
AP_9CRYXQATOODPQJLHI6XWOL
DARL, P, TIP146T; OEM P/N: 172285
AP_27UZK5IUSDX9E8CC8HWS78
DARL, N, TIP141T; OEM P/N: 172284
AP_HF776HU1Y7SMBAIYKR18TB
PNP, (2SB560F); OEM P/N: 140349
AP_I1XBQ1OI0STKK6JXYKIYU2
JFET, SOT, MMBF4392; OEM P/N: 134738
AP_M9SW3274E8K00J0R7G3WL6
PNP, SMALL; OEM P/N: 119168
AP_8VM0YRYTZRY35H9Y3OQ2IE
NPN, TAPE; OEM P/N: 117921
AP_0157VN4HDPKIZIBP9XHA8Y
NPN, SOT, MMBT3904; OEM P/N: 146819
AP_S99MZ3WC1VF0LZK4DJEXYU
SOT, BPLR, P, 50V, 150MA; OEM P/N: 258007
AP_T60L76ZJVU4GFVTHI3D7BE
2SA1179, BPLR, P, 55V, 150MA; OEM P/N: 134743
AP_FABPPOFQ5KDWUYSRR9U9Q1
BRIDGE RECTIFIER; OEM P/N: 187611-001
AP_N7XI9I09ALVTI1VYJ1PM0K
CONN, DIN, RTANG, 8 POS; OEM P/N: 176198
AP_GTF14HIL4L8L3FMHHKZQ5P
CONN, PHONO JACK; OEM P/N: 180567
AP_ZEXI1QC4D0ACH9GRDHAM4P
CONN, PHONO JACK; OEM P/N: 260382-001
AP_CH4NN559TDU2IT1LBL1J2W
CABLE, FLAT, 8P, 24AWG; OEM P/N: 190701-001
AP_N8TWUE8AL6DVOANWE6IKAT
CONN, HEADER, RTANG, JST 16 FEST; OEM P/N: 177258-16
AP_1XLC88NFLD98HO1U5CJ2W2
CONN, HEADER, RTANG, JST S2P-VH; OEM P/N: 190552-02
AP_NHQCO7GW422AGGQ97E3SH6
CONN, HEADER, RTANG, 2.5MM; OEM P/N: 145402-08
AP_CMI38YVUC8T556MCRI2793
CONN, HOUSING, AC, 2 POS, FEMALE; OEM P/N: 146563
AP_WCI0481CMVJ30EI2AJ4KS8
CONN, HEADER, 5 POS.; OEM P/N: 178742-5
AP_558PTX50Q5LXHO2Z6PUCRR
HEADER; OEM P/N: 134290-05
AP_R74EBJP8J3MMM2HH4POF2A
FUSE, 5X20MM, SLO-BLO, 3M; OEM P/N: 263041-3000
AP_355YK4RJP7RG2APNH3ZI85
FUSE CLIP, 5MM; OEM P/N: 178548
AP_P2I9Y0LUVCMHIUOVNGKQCQ
20K, THERMISTOR, ERTD 3FHL203; OEM P/N: 177557
AP_6EERWROZEHGBH64ZEZE76D
10K, POT, DUAL, DETENT.; OEM P/N: 185173
AP_L0JO1B79PTJARUPXXGD4I9
INDUCTOR, LM4532, 1UH; OEM P/N: 178370-1R0
AP_G6ZN2CSZZ3J3FRAMHGBJBO
CRY, CER, RESONATOR, 8MHZ; OEM P/N: 17562743
AP_97O41KAUXNQ9NZ87M0LUC8
JUMPER, 22AWG, INSUL, 7MM; OEM P/N: 135091-070
AP_VF6ASE3L3KTD83Z5EY05N0
4700UF, EL, BP, 85, 50V, 20%; OEM P/N: 187394
AP_E7JFP53QYYULWILD89LYT4
4700UF, EL, 85, 25V, 20%; OEM P/N: 170216
AP_69V8UKPBFUOAVZL5QSZPWZ
2200UF, EL, 85, 20%; OEM P/N: 185929-222E
AP_PF1EERJFPEZ9OWZ3T5PPV3
100UF, EL, 105, 16V, 20%; OEM P/N: 139734-101
AP_FGT9G40YYHOBES2CCQ4LZX
22UF, EL, 20%; OEM P/N: 137126-220
AP_OGNDPCA9E47RGMYFC2F5K8
10UF, EL, 85, 25V, 20%; OEM P/N: 149947-100
AP_D2Q0CHU2VCJHA8BFDYI84Y
10UF, EL, 20%; OEM P/N: 137126-100
AP_E55FF72O4QHSZ4HLADZXUY
4.7UF, EL, 20%; OEM P/N: 137126-4R7
AP_351MA8NHADONFWSTO66R83
1.0UF, EL, 20%; OEM P/N: 137126-1R0
AP_X7269Y00023I2SSMUPVD18
1UF, 1206, Y5V, 16V, 80%; OEM P/N: 173383-105
AP_0VJ54PCW232SPHXR627OQ2
.22UF, BOX, 85, 50V, 5%; OEM P/N: 137127-224
AP_0L980BQDW58TPNGO7B8QIF
.12UF, BOX, 85, 50V, 5%; OEM P/N: 137127-124
AP_BK7NMSDKM3GCIMQYTT46MA
.10UF, 0805, Y5V, 25V, 80%; OEM P/N: 133624
AP_5SBZ4BYYMW2KSYRV8PUYJL
.1UF, BOX, 85, 50V, 5%; OEM P/N: 137127-104
AP_CIAKC6G00AXQW123IM9B0U
.082UF, BOX, 85, 50V, 5%; OEM P/N: 137127-823
AP_L29POJCSI5B16C0S38G8OK
.056UF, BOX, 85, 63V, 5%; OEM P/N: 137127-563
AP_0LUIAFMO38FLGQRF5W8WD3
.033UF, 0805, X7R, 50V, 10%; OEM P/N: 133623-333
AP_ROJ7UGKV528IH5XUUTXCL7
.022UF, BOX, 85, 100V, 5%; OEM P/N: 137127-223
AP_BFUY86RKFYCUI99POW3SMB
.018UF, BOX, 85, 100V, 5%; OEM P/N: 137127-183
AP_0S3ENWTNUFVOTJN0NPLJSZ
.012UF, BOX, 85, 100V, 5%; OEM P/N: 137127-123
AP_PREW0PD1AG038SLM3BAEBA
.01UF, 0805, X7R, 50V, 10%; OEM P/N: 133623-103
AP_03VZDAFSK9WNG161Q8U2ES
.01UF, BOX, 85, 100V, 5%; OEM P/N: 137127-103
AP_5BY2M56321DW777JXB3O8X
.0082UF, BOX, 85, 100V, 5%; OEM P/N: 137127-822
AP_47NSMX1KP5DROYKW9J4W1N
.0056UF, BOX, 85, 100V, 5%; OEM P/N: 137127-562
AP_PC9MQFH0JUM7PMCJB9OET0
.0047UF, BOX, 85, 100V, 5%; OEM P/N: 137127-472
AP_XGT5D24C0KUFYJL1C31K6I
.0047UF, DISC, 60, AC; OEM P/N: 149016
AP_8ZLACXU7790051KPVE3A86
.0033UF, BOX, 85, 100V, 5%; OEM P/N: 137127-332
AP_5ZH5KW5MESGBRSX9G4EFPY
.0027UF, BOX, 85, 100V, 5%; OEM P/N: 137127-272
AP_D1AEG2H8S00IQD3TFSWUBI
.0022UF, BOX, 85, 100V, 5%; OEM P/N: 137127-222
AP_44HFDVW40HQSB0HX1TXOEK
.0018UF, BOX, 85, 100V, 5%; OEM P/N: 137127-182
AP_36IP3Z1IHG5MI1JVMGZLOW
.0015UF, BOX, 85, 100V, 5%; OEM P/N: 137127-152
AP_N4H6VTU1XRGKBHV2F0769I
.001UF, BOX, 85, 100V, 5%; OEM P/N: 137127-102
AP_L9J1H25EEUTGHZZTXH9ZWE
3300PF, 0805, X7R, 50V, 10%; OEM P/N: 133623-332
AP_I1J2IYZTMNP546YV3H5V7X
1000PF, 0805, X7R, 50V, 10%; OEM P/N: 133623-102
AP_4W9ZTRBNEI432IA8Z27UNJ
680PF, MONO, COG, 50V, 5%; OEM P/N: 140564-681
AP_IVEJ3A6QM1MMTJ6W1TBWX7
470PF, CER, 10%, 50V; OEM P/N: 137269-471
AP_J926EVZ56BTCB79OZEOSR6
270PF, 0805, X7R, 50V, 10%; OEM P/N: 133623-271
AP_LDJTKQ1PL1RM521D2TFMHO
100PF, 0805, COG, 50V, 5%; OEM P/N: 133622-101
AP_1O28X2X6C887ABC1NYJOKP
27PF, 0805, COG, 50V, 5%; OEM P/N: 133622-270
AP_3HIUXRNPHJ5MX991FDJKL0
DUAL, SOT-23, BAV99; OEM P/N: 147239
AP_UPSQPC6QN3A2NST8JX00T3
ZENER, 12V, 225MW, 5%, 1N5242; OEM P/N: 135247-5242
AP_II2FG7YABPGXDURTH6ZO58
ZENER, 5.6V, 225MW, 5%, 1N5232; OEM P/N: 135247-5232
AP_VLFZ9XAHHUGA5Q8GWSEGMN
1N5402; OEM P/N: 170219
AP_F90GAUMVNMN1BMQCQ4PL4A
ZENER, SOT23, 5%, 5.1V; OEM P/N: 135247-5231
AP_AQZ9IA82Z65ATZ92RTR5IF
1N4531, 5MM; OEM P/N: 136603
AP_CLXR8BSGNMS9PSKW9E7CWS
ZENER, 3.3V; OEM P/N: 135247-5226
AP_DKSXR0CDD4WYU6XBOW1IXZ
1.0KΩ, ARRAY, SMT, 4 POS, 5%; OEM P/N: 186433-1024
AP_W6MC5XWD6PQ6CKQ4HYB22V
3.9KΩ, ARRAY, SMT, 4 POS, 5%; OEM P/N: 186433-3924
AP_15ZQXQQKXRMENDOPOSJVSA
1.0MΩ, ARRAY, SMT, 4 POS, 5%; OEM P/N: 186433-1054
AP_BLIJIKXQY4N2FQGDJM4AMR
300Ω, ARRAY, SMT, 4 POS, 5%; OEM P/N: 186433-3014
AP_VR1CK131NLC37E56Y05RJB
100KΩ, ARRAY, SMT, 4 POS, 5%; OEM P/N: 186433-1044
AP_L1195K1IC97T5PUN87Q2BW
20 OHM, FUSING, 1/4W; OEM P/N: 130102-200
AP_1JPS3QFE9LEOOBB91RDXSB
100 OHM, FUSING, 1/4W; OEM P/N: 121243-1211015
AP_9K75CA15GV5AT9C8H6YK0N
10M OHM RESISTOR; OEM P/N: 121243-1511065
AP_Q83ZNUB6QNSR096FAYJGFY
10.0KΩ, CHIP, 0805, 5%; OEM P/N: 133626-1035
AP_QG73QL61VG9GK0U5H631YA
20KΩ, CHIP, 0805, 5%; OEM P/N: 133626-2035
AP_YKBQW7AXSSTMRC30730DN4
1MΩ, CHIP, 0805, 5%; OEM P/N: 133626-1055
AP_ASU2OT6K2K64596T16JWGG
1.00KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1001
AP_GBXGF2VII9TCBHGMVVOZT5
100KΩ, CHIP, 0805, 5%; OEM P/N: 133626-1045
AP_CF8WZU26X7DS4T54PBLFFN
8.25KΩ, CHIP, 0805, 1%; OEM P/N: 133625-8251
AP_PJT2BDFBZERLMDLYWSTY9T
4.42KΩ, CHIP, 0805, 1%; OEM P/N: 133625-4421
AP_YH38PY73DDRUWQ2M2M7S6L
499Ω, CHIP, 0805, 1%; OEM P/N: 133625-4990
AP_RDAI1KXHG5I170E20UEZQV
10Ω, CHIP, 0805, 5%; OEM P/N: 133626-1005
AP_1YB7UNZTC4K0SEHCE2WHQ4
6.81KΩ, CHIP, 0805, 1%; OEM P/N: 133625-6811
AP_H967R1S1V0V8WA350N6VYD
30.1KΩ, CHIP, 0805, 1%; OEM P/N: 133625-3012
AP_MX1TVTCN3TN646W29DTJ0T
953Ω, CHIP, 0805, 1%; OEM P/N: 133625-9530
AP_8AIQGU229342XMSPRK2T7F
24.3KΩ, CHIP, 0805, 1%; OEM P/N: 133625-2432
AP_WKNVWV7GYJZKPLUXNLDS7K
12.1KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1212
AP_30G595KGYVIRYXINMDOKK1
51.1KΩ, CHIP, 0805, 1%; OEM P/N: 133625-5112
AP_KKH1CO8F2OFECIS81RKDY2
2.00KΩ, CHIP, 0805, 1%; OEM P/N: 133625-2001
AP_YE0LDHWW7C2DR2ESGDIL6Q
14.0KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1402
AP_TLZXM7QRHTKD6WZABAUDWB
1.50KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1501
AP_K2IBIYPVMRXNVZZ8LHSTDG
3.01KΩ, CHIP, 0805, 1%; OEM P/N: 133625-3011
AP_6JDZVCLGEIKHWE09XX8NIA
20.0KΩ, CHIP, 0805, 1%; OEM P/N: 133625-2002
AP_CPLK8OR1CFNEOB31KEYL2P
301Ω, CHIP, 0805, 1%; OEM P/N: 133625-3010
AP_DZPGBM0B1BWE3C9X2GUOKA
4.02KΩ, CHIP, 0805, 1%; OEM P/N: 133625-4021
AP_U85HGTGEQZ9RAFUPVGSNL0
18.2KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1822
AP_82LEDF0W49AVE27G2LPTVY
23.7KΩ, CHIP, 0805, 1%; OEM P/N: 133625-2372
AP_TA28RHXT42PLYCIENDG5TF
56.2KΩ, CHIP, 0805, 1%; OEM P/N: 133625-5622
AP_IHU6GP8MJHEH25PGJNAED9
1.65KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1651
AP_UKI10CHOSVL3PL6FNH6LD9
10.0KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1002
AP_KPZIV5BYP3VN76YV316JSS
16.5KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1652
AP_92KGQ3N6SM5K4J4PUZ7K42
49.9KΩ, CHIP, 0805, 1%; OEM P/N: 133625-4992
AP_UWB9UKDGA6CH1ZU6S2W5RW
4.22KΩ, 1206, 1/8W, 1%; OEM P/N: 124894-4221
AP_A9BQKOX5LEO78KI91AN8AV
3.65KΩ, 1206, 1/8W, 1%; OEM P/N: 124894-3651
AP_4D0P4MP7GESYT9G3T1OWG3
1.27KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1271
AP_544JRN1H96B6U0TWAARBM7
86.6KΩ, CHIP, 0805, 1%; OEM P/N: 133625-8662
AP_LFF3IGSM1T8P0472O62MSA
301KΩ, CHIP, 0805, 1%; OEM P/N: 133625-3013
AP_AG9ZRQ1YFMUKR7JVB7P6JQ
162KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1623
AP_1MCN80JID6I0ZT233ZA0EB
27.4KΩ, CHIP, 0805, 1%; OEM P/N: 133625-2742
AP_IW2UU8OOYQ8CNPGKTW6FHA
10MΩ, CHIP, 0805, 5%; OEM P/N: 133626-1065
AP_5A2WOP6R29ZB1RN53QP12H
200Ω, CHIP, 0805, 5%; OEM P/N: 133626-2015
AP_XC964EN15R6SP0OLZVVX44
200KΩ, 0805, 1/10W, 1%; OEM P/N: 133625-2003
AP_OPV2S7NN0UHE1ELP3BWH4T
75Ω, CHIP, 0805, 5%; OEM P/N: 133626-7505
AP_J71C08PUQ8RENTOWKWGX3O
JUMPER, CHIP, 0805; OEM P/N: 133627
AP_AY598WV0635CEIZYAG8W33
220Ω, 0805, 1/10W, 5%; OEM P/N: 133626-2215
AP_O3CD1ETC70AS8A8PDFEVDE
5.1Ω, 1206, 1/8W, 5%; OEM P/N: 124895-5R15
AP_M3IA8THWAYAXN4TTGCMLJ8
33.2KΩ, CHIP, 0805, 1%; OEM P/N: 133625-3322
AP_DJKPUZFRIGQFED60IER99O
15.8KΩ, CHIP, 0805, 1%; OEM P/N: 133625-1582
AP_NJ6UJSNR8IWXVXPBDK9UMM
73.2KΩ, CHIP, 0805, 1%; OEM P/N: 133625-7322
AP_P8CRKRKMSHUVHXVD6DAWYJ
36.5KΩ, CHIP, 0805, 1%; OEM P/N: 133625-3652
AP_PSZNT6FN322ULJIKZC6K08
200KΩ, CHIP, 0805, 5%; OEM P/N: 133626-2045
AP_P66SKIZDM88DIK65RIEBGK
9.1KΩ, CHIP, 0805, 5%; OEM P/N: 133626-9125
AP_I12XNLLEK9WWK5OLWX0Y6I
39Ω, 1206, 1/8W, 5%; OEM P/N: 124895-3905
AP_71G6ZLSAZ2S1ZHBH6KB8Z6
JUMPER, CHIP, 1206; OEM P/N: 124896
AP_Q5NY4HAV1SKL1E42UN6EGP
1.00KΩ, 0805, 1/10W, 5%; OEM P/N: 133625-1025
AP_PGI9DRWUBUNTQ2K3MQEF2M
PLATE, SPRING; OEM P/N: 172281
AP_2S5DEKMM1NQ3QL6Q0VBETQ
CUSHION, TRANSFORMER; OEM P/N: 176169
AP_ZEDCDA5JDK8PQ7UMS2VDPP
GASKET, CONNECTOR, COVER, AM-9P; OEM P/N: 186845
AP_WOL6UJ7VA9ZYIJYECZD0JQ
GROMMET, BASE PLATE; OEM P/N: 172295
AP_BIO8O42H5LMNQAJBOWEKY0
GASKET, 6.5" WOOFER; OEM P/N: 104794-08
AP_56QNG7Q8ACV8CEW4T4G17I
GASKET, TAPE; OEM P/N: 175548
AP_3LGNMMWCCX26AVA5SI8YU8
GASKET, TAPE, FOAM, PCB; OEM P/N: 174676
AP_3VTRJN6UYBSWPGO5EYYMIY
CAP, PORT, BLACK; OEM P/N: 173310-1
AP_8XPTDQ4JQSGYMJCB3MKNAB
CAP, PORT, WHITE; OEM P/N: 173310-2
AP_ZNOSZP0BX2U86KU5ZK76A6
PORT, BOTTOM, BLACK; OEM P/N: 173312-1
AP_KU3HBI1I28421FY3LLO7NN
PORT, BOTTOM, WHITE; OEM P/N: 173312-2
AP_ZG57SCW09HL8ZA284EEGZR
PORT SCREEN; OEM P/N: 145325
AP_BZ0GRQUSAJZHXEQC5853VT
BUMPER, RECESSED, FOOT, .88"; OEM P/N: 142839
AP_4ZDRE7ASV3QY2FJU8XDP8L
FOOT; OEM P/N: 142839
AP_Y8SUQCBNKMNXODS7CO6H0W
KNOB, TONE CONTROL, WHITE; OEM P/N: 172289-1
AP_KN2CMS3XGW20AQI8BTFMHT
KNOB, TONE CONTROL, BLACK; OEM P/N: 172289-2
AP_CQ9NA6RW1T85BBQXSPRYTS
LATCH, COVER; OEM P/N: 172294
AP_8EMS64SGRKR0SXMHVEOMJ9
O-RING; OEM P/N: 141403
AP_1YJQ2C7EQJP992DODWZPC3
WASHER, FLAT, BLACK; OEM P/N: 141402-1
AP_XNSSNXBI6Q69SX7T9E8673
WASHER, FLAT, WHITE; OEM P/N: 141402-2
AP_N941ZOCSP6RGRGIP3I4FO5
NAMEPLATE, LOGO, BLACK; OEM P/N: 184247-1
AP_SFPHHQUSTGD8Z6U98EWCIV
NAMEPLATE, LOGO, ARTIC WHITE; OEM P/N: 184247-4
AP_FVGJ0B0GHQC190053IB8ZD
SCREW, HI-LO, 6X3/8, PAN HEAD; OEM P/N: 147516-06
AP_1FFGB77L1KQVUX4T55N584
SCREW, TAPP, 8-11X1.25, PAN, XRC/S; OEM P/N: 172672-20
AP_MUIXZ6XFV0SVP7FMS1LP62
SCREW, TAPP, 8-11X.75, PAN, XRC/SQ; OEM P/N: 172672-12
AP_T90TZ4QKGWRY5ZK7U31ST7
SCREW, HILO, 6-20X.625, PANHD, XRC; OEM P/N: 172779-10
AP_ZHPP8ZH05OFV18DVMWA3QY
SCREW, TAPP, 8-11 X .625, PAN, XRC/S; OEM P/N: 172672-10
AP_NTDQ4FOPVMBZ44Z012PPD4
ANCHOR, SCREW, #6, PLASTIC; OEM P/N: 186207
AP_NBFQJ2ZKY8UJAI5TVGMWOK
TAPE, FOAM 2"; OEM P/N: 134936-020
AP_NG4729Q25QVEYQ4GS8W28P
FOAM TAPE, 8"; OEM P/N: 134936-080
AP_WMAPB6UK3PP7OVHB4X7CSX
INTERNAL ACOUSTIC DAMPING MATERIAL
AP_BWMI1URBVW47PS49C4RYOM
INTERNAL WIRE RETAINER / CABLE TIE
AP_AV34QUJ1LKOB7RSWYE9YLN
SAFETY / RATING LABEL
AP_RO99W0CIQFPUEWCQT0635R
SERIAL NUMBER / PRODUCT IDENTIFICATION LABEL
AP_USHOY14YTB3A1XALD7SDMN
VOLTAGE SELECTOR LABEL
AP_7POIX45U9UBZQZUO22M3U0
CONNECTOR PANEL LEGEND LABEL
AP_Z6UHQOL223XKCPCXDXRNN3
CARTON, SATELLITE, AM-5P; OEM P/N: 178982-00
AP_30KM13F5MN5Q29PEJBCIE9
BAG, POLY, 10X12X2 MIL; OEM P/N: 144677
AP_CZU2L9SKI8LK3CQLO7K2KA
D/C CARTON; OEM P/N: 172282
AP_HY9QZ9922LQ4NE2TTZSPRS
PACKING, CORNER POST; OEM P/N: 148044
AP_Z6QKD33Q5OPEETALILO992
PACKING, INSERT, EPS; OEM P/N: 172279
AP_KC87IV5B28R3QA2CE9F7VS
BAG, POLY; OEM P/N: 103351
AP_K8G17GT3WWSN2OIHYQPU9J
BAG, POLY; OEM P/N: 137847
AP_KYYGTXSNGE3UU5EAYU6LPC
WARRANTY SERVICE CENTER LIST; OEM P/N: 122766
AP_ESEYQG4Q50TYTRB9OOGMIT
BROCHURE, ALL PRODUCTS; OEM P/N: 141478
AP_YXWMAXY0J165MSFLUTOHSH
WARRANTY CARD, US; OEM P/N: 181357
AP_EESGY56TFEWGJ60TLNO42P
WARRANTY CARD, MULTI
AP_TCW2ICAR7RMKVSNMORAXXH
MANUAL, OWNER'S, LS25; OEM P/N: 187718
AP_CO1ACDS0S05MZXCSPDBPN5
PROTECTIVE POLYBAG, POWERED BASS MODULE
AP_TPK6E5H67KK0DHD2Y6QOUK
PACKING FOAM, POWERED BASS MODULE TOP
AP_6RW7B2MI2UI1QG4EZF5H64
PACKING FOAM, POWERED BASS MODULE BOTTOM
AP_TYZ9WQP67DGNO8SGH9142Q
PACKING BAG, CABLE SET
AP_46OX4EI0GMJAQDV1CGQFX8
INSTALLATION / SETUP GUIDE, ACOUSTIMASS 9
AP_KYIECVXLAYSKMXE07XC1E4
SERVICE MANUAL, POWERED ACOUSTIMASS-9; OEM P/N: 177870
AP_R39MRZ9PW707LG4V3OOO6O
SERVICE MANUAL SUPPLEMENT; OEM P/N: 177870-S7
Repair, service & parts, for your Bose Acoustimass 9
- 1 Repairs are performed on a best-effort basis. Acme Revival utilizes a network of sophisticated technicians and engineers with diverse service offerings; despite this, factors that influence the repair outcome may ultimately prove unsuccessful. Acme Revival makes no claim that it can, guarantee a repair before your device is sent in for diagnostic evaluation; even then, repair and diagnostic work are not mutually exclusive. Despite well-intentioned quoting, repairs may still prove unsuccessful.
- 2 Parts known to Acme Revival via Acme’s Neural Network and documented discovery. These parts may not represent OEM cataloging nor does Acme Revival guarantee display accuracy. Always check with Acme’s Help Desk to ensure availability and accuracy. Parts may not be in new condition, may be unavailable, discontinued, or not offered for independent sale.
