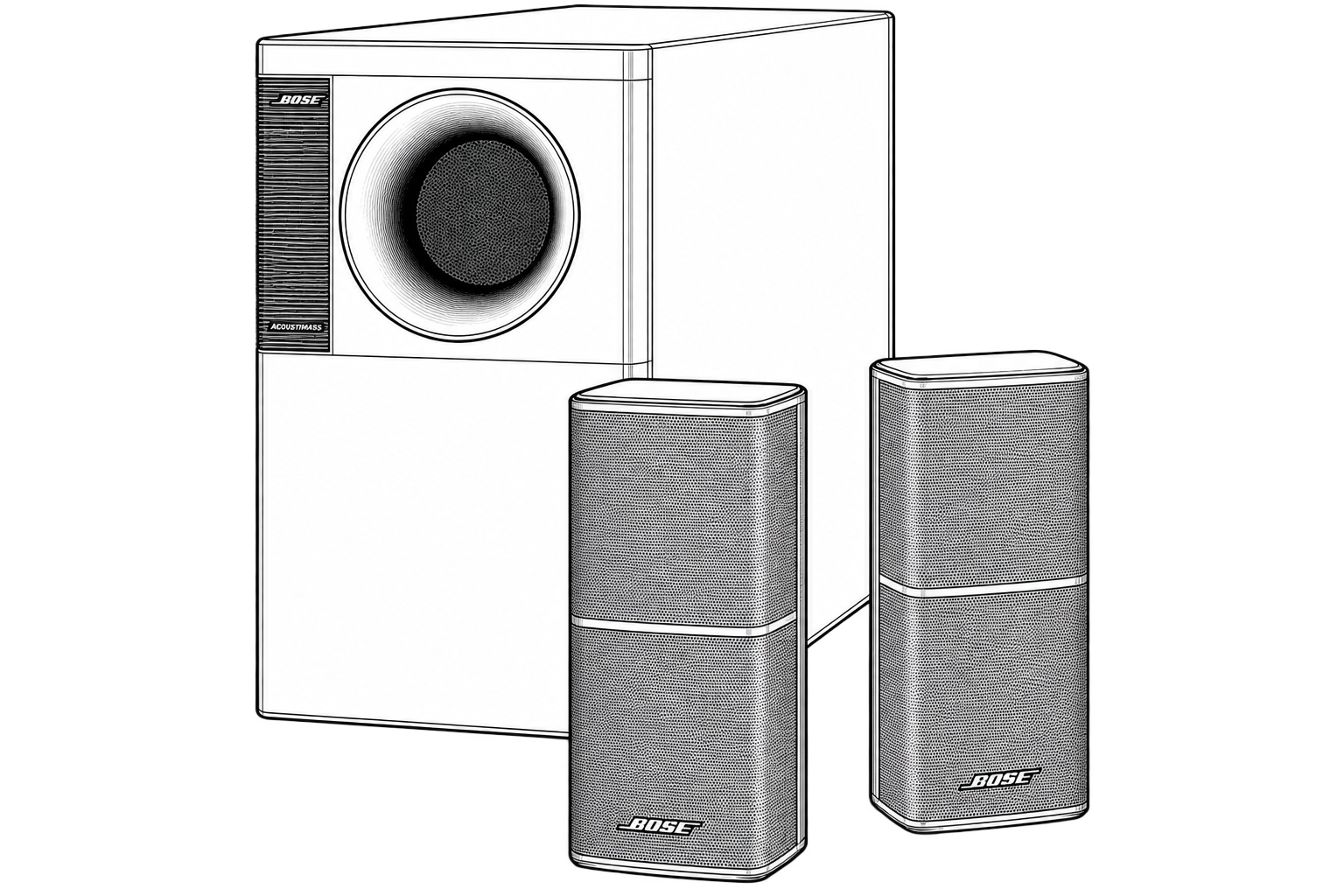

Acme Revival connects your Bose Acoustimass 5 with a nationwide network of skilled electronics technicians built to fix what manufacturers won't. Start online, ship it in, and track every update and outcome in one transparent Service Dashboard.
1
Repair
$49.00
FLAT-RATE REPAIR (LABOR)
90-Day Warranty
No-Fix Repair Guarantee
Revival’s flat-rate repair service is a best-effort attempt to diagnose and repair the reported issue. The advertised price covers technician labor only and will not increase.
If replacement parts are required, we’ll provide a separate quote for your approval before proceeding. If we can’t complete the repair, your labor charge will be refunded. A separate $25 Repair Network Service Fee applies, along with return shipping & handling. These charges are non-refundable.
Repairs may be limited by device condition, prior damage or modification, safety concerns, or unavailable manufacturer-controlled parts or resources.
Most Recent Repair Requests:
2 (Known) Parts List:
AP_4J2IBQHP8SYBYCK7HZ02I0
MODULE ASSY, 120V; OEM P/N: 251168-13
AP_H570ITIEW9ONYAIA4GHJ6O
MODULE ASSY, 230V; OEM P/N: 251168-23
AP_ZIOZ00QY2LIJ91FCCBJ022
MODULE ASSY, 120V/230V; OEM P/N: 251168-63
AP_FJVPPF9PDHSPE1NR6EOXCW
PCB ASSEMBLY, 120V; OEM P/N: 251167-1
AP_95RBZ8Q2TU47FFXC2ADMMF
PCB ASSEMBLY, 230V; OEM P/N: 251167-2
AP_WZWZTPZEUGFJ6GDOJPRH58
PCB ASSEMBLY, 120/230V; OEM P/N: 251167-6
AP_JCU31JVOPUG85WGET7B81K
SATELLITE, BLACK; OEM P/N: 192420-019
AP_VMQB6DER3B4S9QDUUQJVOL
SATELLITE, WHITE; OEM P/N: 192420-029
AP_KV4A6Z4FJ8JO0W8RQAC6CZ
TRANSFORMER, 120V/230V; OEM P/N: 176194
AP_7Z0NLQDPJ5T1II13RFBTSV
WOOFER ASSY, 5.25 IN; OEM P/N: 172276
AP_LSQ63ER25L1E56PDTHW2SB
HEAT SINK, AMP PC BOARD; OEM P/N: 172283
AP_4N1S3VR7PC5DG22Q7C5TCB
BASE PLATE ASSY; OEM P/N: 172288
AP_PXLK2QTE02MP6VN0O2J92U
BRACKET ASSY, ADAPTER; OEM P/N: 172287
AP_ZLTOPKW21RFGWVSBWSWZMD
PLATE, HEAT SINK, METAL; OEM P/N: 172291
AP_EAC3H10P9DR5JUSPRYTNYL
PLATE, SPRING; OEM P/N: 172281
AP_BDHZSWOJ37IDWOJLTSIF53
CABLE, AUDIO INPUT, 5 PIN; OEM P/N: 172296
AP_0PCPYZZTTOAFFJHWDS7DHS
CABLE, INTERCONNECT; OEM P/N: 172293
AP_IKEZ6B4CNFA4R720EGKEY1
CABLES, SPEAKER, 18 AWG, L/R, BLACK; OEM P/N: 180643-5
AP_FLV0VJVZFCU0D43QDDOOL3
CABLES, SPEAKER, 18 AWG, L/R, WHITE; OEM P/N: 172621-5
AP_BE74IOVNVNJQTMBFOEGXER
LINE CORD, 120V, POLARIZED, DETACH, BLACK; OEM P/N: 198603-001
AP_XQ8R473Y9INI61SDP4MWN4
LINE CORD, EURO, DETACHABLE, 96 IN, BLACK; OEM P/N: 148203
AP_D7QRXNFZJZPTNI8V7TVVY9
LINE CORD, 230V, UK, DETACHABLE, 72 IN, BLACK; OEM P/N: 134725
AP_S0UOJOGMG6K8OTHQI4D3RA
LINE CORD, 230V, AUS, DETACHABLE, BLACK; OEM P/N: 134726
AP_VGM1KHQBQRJARKV3P3RWO6
ADAPTER, 120/230V POLARIZED; OEM P/N: 147013
AP_UYL3L85XMAMMRO98NQX9B9
ESSENTIALS/LITERATURE KIT, 120V US; OEM P/N: 251173-001
AP_KACG551DLCS6HF5MBK7DAW
ESSENTIALS/LITERATURE KIT, 230V EURO; OEM P/N: 251173-002
AP_4F06FW8Y2I8DIVGGLC8M0I
ESSENTIALS/LITERATURE KIT, UK/SING/AUS; OEM P/N: 251173-004
AP_CO25SHQBFY6ORD39N6QE1A
ESSENTIALS/LITERATURE KIT, DUAL; OEM P/N: 251173-006
AP_7YHSHC2GUSWETT9EUF479T
RECTIFIER, BRIDGE; OEM P/N: 170214
AP_F3LCQKKG66ASZ2RIPI1RQM
50W AMP; OEM P/N: 170156
AP_U27VM8X7YS61ROBH57E5E7
TRIAC; OEM P/N: 176807
AP_QDYE23YW75YVC180MSLFM9
OPTO-TRIAC, MOC3023T, PDIP-6; OEM P/N: 190334-001
AP_NBBEW2Z3CDLS65CXQG88KR
OPTO ISOLATOR, 4N32T; OEM P/N: 172298
AP_PK3LX35PQEKHOEWCDU3JWO
QUAD TRANSISTOR ARRAY, NPN; OEM P/N: 145317
AP_A0511D700WQH6QIVJWVNU7
VOLTAGE COMPARATOR, DIP-14; OEM P/N: 137929
AP_V4YE1FZ2L9Z3Z4T0ODQXZN
OP-AMP, CA3080, SINGLE, DIP-8; OEM P/N: 119834
AP_LOFX1Z52E7GFL96YMWNRLN
OP-AMP, RC4559, DUAL, DIP-8; OEM P/N: 108568
AP_I4X0G0PE3LQQWVPG2X9PI8
OP-AMP, LF353, DUAL, DIP-8; OEM P/N: 110698
AP_M68JTMAGCXO43B4NROCGR5
OP-AMP, LF351N, SINGLE, DIP-8; OEM P/N: 132604
AP_ZOM3PR70D2DROBUI4CM428
VOLT REG, 12V, POS, TO-220; OEM P/N: 116736
AP_MRFG7D6AP7ME7F5IPUJC23
VOLT REG, 12V, NEG, TO-220; OEM P/N: 116736
AP_EHCMP8R3O9TB3BTIO567VX
DARLINGTON TRANSISTOR, P, TIP146T; OEM P/N: 172285
AP_ICEX23R5RI88GW7B01WDSY
DARLINGTON TRANSISTOR, N, TIP141T; OEM P/N: 172284
AP_C1WIU8VTCWZECXO0JN4UNI
TRANSISTOR, PNP, 2SB560F; OEM P/N: 140349
AP_U1ZR6GRLSAYC2DWST6OWSS
TRANSISTOR, JFET, MMBF4392, SOT; OEM P/N: 134738
AP_RPMQ34T4R2D0RGHJWC0THP
TRANSISTOR, BIPOLAR NPN, SOT-23, 55V, 150mA; OEM P/N: 134741
AP_YEAVCBAPC3K7Z7FVNWJ7J8
TRANSISTOR, BIPOLAR PNP, SOT-23, 55V, 150mA; OEM P/N: 134743
AP_JW9XQI9I087IZWSA452KFO
TRANSISTOR, BIPOLAR NPN, TO-92, 60V, 200mA; OEM P/N: 117921
AP_EJBKB05PFPUTOEJE14Z18N
TRANSISTOR, BIPOLAR PNP, TO-92, 60V, 200mA; OEM P/N: 119168
AP_HTI82IHYCYJ9VH56C1VQG9
POWER SWITCH, RECTANGULAR; OEM P/N: 178792
AP_FDDP5JVCGO48MQYVV1N5CJ
SWITCH, SLIDE, DPDT; OEM P/N: 145307
AP_9C9OQ3VJS6RS91PXCH2YP6
DIN, PC MOUNT, 5 PIN; OEM P/N: 170735
AP_VUJPR3EV8LZNF52SIPPHLL
JACK, AC POWER, VDE; OEM P/N: 145306
AP_0TIA936X0ZOQVEJ4RVIJG6
HOUSING, AC, 2 POS, FEMALE; OEM P/N: 146563
AP_I4I0BOYEB133CSB8F44924
RCA JACK, 2 POS, BLUE; OEM P/N: 182495-2
AP_UPGDLGM9X6JGY84CITFN63
HEADER, RTANG, 5 POS; OEM P/N: 134290-05
AP_67KU5LASXXAHPXKUNS7RGF
HEADER, RTANG, 2.5MM, 14 POS; OEM P/N: 145402-14
AP_5X8FNRS266WSW3GCZR6UBA
HEADER, RTANG, JST 2P-VH; OEM P/N: 190552-02
AP_3BP6RUGF5MUFPTD9JR8TN7
HEADER, 5 POS; OEM P/N: 178742-5
AP_UFES2G3JQL682QNU1YV5JR
HEADER, PCB MNT, 14 POS, M; OEM P/N: 133224-14
AP_N9FPQ9O7NGWWLJ1F014LRE
FUSE, 5X20MM, SLO-BLO, 3A; OEM P/N: 181561-3000
AP_XPC44TM59HJXRE9SK2SSFP
FUSE, 5X20MM, SLO-BLO, 1.6 AMP; OEM P/N: 181561-1600
AP_BRT1AJCKZ08I8YE5JDXO3U
FUSECLIP, 5MM; OEM P/N: 178548
AP_ODM77SGZZSJD1ZO5BK48OB
SHIELD, MICRO; OEM P/N: 177564
AP_57ETBLDFCBTZ7UQD0AWB05
4700uF ELECTROLYTIC CAPACITOR, 105C, 50V, 20%; OEM P/N: 187394
AP_9HEIAUULZVXK5QP30BIYG4
4700uF ELECTROLYTIC CAPACITOR, 85C, 25V, 20%; OEM P/N: 170216
AP_8XAA4UL4G14AC4UWDEBD0Z
100uF ELECTROLYTIC CAPACITOR, 105C, 16V, 20%; OEM P/N: 139734-101
AP_2PUSX4RKFMIZBV1VV0BW07
47uF ELECTROLYTIC CAPACITOR, 85C, 25V, 20%; OEM P/N: 149948-470E
AP_YTJRBI06ZKP4IYVXFVS3IW
10uF ELECTROLYTIC CAPACITOR, 85C, 25V, 20%; OEM P/N: 149947-100E
AP_ATIU13UMIG3QOJRWEG0BEP
10uF ELECTROLYTIC CAPACITOR, 105C, 16V, 20%; OEM P/N: 137126-100
AP_ZRYBQ7PYFELELM8A9SOB5L
1.0uF ELECTROLYTIC CAPACITOR, 105C, 50V, 20%; OEM P/N: 137126-1R0
AP_0REDLOYYO8V1IP6U5BQF2R
2.2uF ELECTROLYTIC CAPACITOR, 105C, 50V, 20%; OEM P/N: 137126-2R2
AP_QK2J9IJTLB0EAXKM74ES4X
0.0047uF AC DISC CAPACITOR; OEM P/N: 149016
AP_MS6Q5IQEVCUSLBNFOITJ4I
0.39uF BOX CAPACITOR, 85C, 50V, 5%; OEM P/N: 137127-394
AP_8DTYS79GRQNH5PP6E1L0QI
0.33uF BOX CAPACITOR, 85C, 50V, 5%; OEM P/N: 137127-334
AP_475SG6YQWHNOKAR7UT56V6
0.22uF BOX CAPACITOR, 85C, 50V, 5%; OEM P/N: 137127-224
AP_6MIMU40XOTEQ7KMDNTCRDR
0.18uF BOX CAPACITOR, 85C, 50V, 5%; OEM P/N: 137127-184
AP_V767LAPDHL8ID7C3KLH33U
0.15uF BOX CAPACITOR, 85C, 50V, 5%; OEM P/N: 137127-154
AP_UFWLBJSS7MP02ZOH1TUQ5P
0.12uF BOX CAPACITOR, 85C, 50V, 5%; OEM P/N: 137127-124
AP_DJ9KJ7FQCYON83XUR3PT7B
0.1uF BOX CAPACITOR, 85C, 50V, 5%; OEM P/N: 137127-104
AP_K5JJK8K1W5Q9M2KC63J558
0.0082uF BOX CAPACITOR, 85C, 100V, 5%; OEM P/N: 137127-822
AP_8FZDYCEPSD7DMCW8DM6WP1
0.0068uF BOX CAPACITOR, 85C, 100V, 5%; OEM P/N: 137127-682
AP_GCDN4HMKKU8J2N9NJZKK0O
0.0056uF BOX CAPACITOR, 85C, 100V, 5%; OEM P/N: 137127-562
AP_MY8HGLLBNOMHP1GZ3L7B0V
0.0039uF BOX CAPACITOR, 85C, 100V, 5%; OEM P/N: 137127-392
AP_N2LCO6F0FF2NC6I9K09EN7
0.1uF CERAMIC CAPACITOR, 1206, Y5V, 50V; OEM P/N: 138551-104
AP_TZ5YYHI3JPYYNPK4Q6T2UM
0.1uF CERAMIC CAPACITOR, 1206, Y5V, 16V; OEM P/N: 133983-105
AP_PS2IDUPG4AUZSK9JXMT742
0.1uF CERAMIC CAPACITOR, 0805, Y5V, 25V; OEM P/N: 133624
AP_571Z2NKCDER2XKVNYZJRAP
0.033uF CERAMIC CAPACITOR, 0805, X7R, 50V; OEM P/N: 133623-333
AP_MWG6KZ5VNPEWTHYU2WCA53
3300pF CERAMIC CAPACITOR, 0805, X7R, 50V; OEM P/N: 133623-332
AP_ID2O48UADP8FDT64MEJ68B
270pF CERAMIC CAPACITOR, 0805, C0G, 50V; OEM P/N: 133622-271
AP_QNE5RRMLCNGRAXHE0FRLDA
100pF CERAMIC CAPACITOR, 0805, C0G, 50V; OEM P/N: 133622-101
AP_MZL3J7U4ANY3MIAANVCTQY
1000pF CERAMIC CAPACITOR, 1206, C0G, 50V; OEM P/N: 124956-1022
AP_0FIWX7UTQO619C32L561Y8
10000pF CHIP CAPACITOR, 5%; OEM P/N: 124959-103
AP_M2R3GJYHU66QUIP572ODG6
1N5402 POWER DIODE; OEM P/N: 170219
AP_T05QIAQTCDKSWDKBDFDLJR
1N5393 AXIAL DIODE; OEM P/N: 177961
AP_0RUWKI0W25BE38NHOPVS1X
1N4742 ZENER DIODE, 12V, 1W, 5%; OEM P/N: 116995-4742A
AP_ESHTED3YDEUNH5MB9IFIVL
P6KE120 ZENER DIODE, 120V, 5W, 10%; OEM P/N: 195227-120B
AP_LT6X671P1TLB0RO10HKPKQ
1N4004 DIODE; OEM P/N: 116996-4
AP_QL928Q0TRKUUBT9NER8GJP
BAV99 DUAL DIODE, SOT-23; OEM P/N: 147239
AP_FRHH0DWDHDKD7B8O3B572B
BAV70 DUAL DIODE, SOT-23; OEM P/N: 147249
AP_JHTPXZAE9Y5RPR1HF8LL9Z
ZENER DIODE, 6.8V, 225mW; OEM P/N: 135247-5235
AP_1NO5L7AQ4S86CD11X0ME5B
ZENER DIODE, SOT-23, 5.1V; OEM P/N: 135247-5231
AP_2GSTVQJ7PXFD3NINKHR7H2
SWITCHING DIODE, 75V, 200mA; OEM P/N: 136603
AP_QOUDBTA1ENQVXJPQCKUOR1
SWITCHING DIODE, 75V, 300mA; OEM P/N: 121501
AP_EUFVETWW0HVFVXHOFR6NWU
THERMISTOR, 20K, ERT-D3FHL203S; OEM P/N: 177557
AP_7PG84LVY71SIDDQEKYUC8Q
POTENTIOMETER, 10K, DUAL, DETENT; OEM P/N: 185173
AP_YP9H0LFM9VCJTRGPF9GYQJ
RESISTOR, 7.5 OHM, 2W; OEM P/N: 177962-752
AP_TKE718FIIQ6A1XJGF8FPG6
RESISTOR, 4.3K, METAL OXIDE, 3W, 5%; OEM P/N: 183483-4325
AP_JRGN8QUETY6NTZFF0M21PP
RESISTOR, 3.3K, METAL OXIDE, 2W, 5%; OEM P/N: 183482-3325
AP_JGUWU9L5PK21R8OG33XCIY
RESISTOR, 5.1 OHM, LEADED FUSING, 1/4W; OEM P/N: 130102-5R1
AP_QRDAMU245W0UTGACAIC1SR
RESISTOR, 0.1 OHM, 2512, 1W, 5%; OEM P/N: 149322-100
AP_4YIMXAJ75FQIVYDMYEPHC7
RESISTOR, 220 OHM, CARBON FILM, 5%; OEM P/N: 121243-1212215
AP_XETZOAELA5SFLNPA1QM4JJ
RESISTOR, 75 OHM, CARBON FILM, 1/4W, 5%; OEM P/N: 121243-1217505
AP_U6NPJWSF845TWYN5MACU04
RESISTOR, 39 OHM, CARBON FILM, 1/4W, 5%; OEM P/N: 121243-1213905
AP_Z2EM1A0TGJERA0UE7O351Z
JUMPER, CHIP, 1206; OEM P/N: 124896
AP_F4FSYX9X7RTJP5N8RLLJ43
JUMPER, CHIP, 0805; OEM P/N: 133627
AP_5CRKMNXHTD4OL2MN3SHV24
JUMPER, 22AWG, 20.0MM; OEM P/N: 148242-200
AP_4M6QINX6G71DNAXA6G72O6
JUMPER, 22AWG, NON-INSUL, 7.5MM; OEM P/N: 148242-075
AP_9UDGSZJOA82SKGAKBP53QO
HARNESS, WOOFER; OEM P/N: 188207
AP_NN0M7X8ZQTEH3G4QET6XKR
GASKET WOOFER, 6.5 IN; OEM P/N: 104794-08
AP_EAU09KXXVZCUZUCTLQR8VB
GASKET, CONN/COVER; OEM P/N: 186844
AP_UYTZ17TFF1ZVBQYRMWZ2IL
GASKET, TAPE FOAM; OEM P/N: 175548
AP_22MBGKTRBN920MW4ETGX7D
CUSHION, TRANSFORMER; OEM P/N: 176169
AP_BSG5YUFPQU6QSL2E1HB63P
KNOB, TONE CONTROL, WHITE; OEM P/N: 172289-1
AP_7MJ2J4F2KM4FPEBJQI0O20
KNOB, TONE CONTROL, BLACK; OEM P/N: 172289-2
AP_V26CWOPWJCFY0FCGLACO6V
COVER, WHITE; OEM P/N: 172278-21
AP_2UJ2RC8H84C9I5G3UQQDHY
COVER, BLACK; OEM P/N: 172278-22
AP_D56C4DVLLVI19ATXDID0WP
LATCH, COVER; OEM P/N: 172294
AP_3FEY4OQYZDD3O968JZSHC0
GROMMET; OEM P/N: 172295
AP_QGK4T8MY2VXZTXIUJG5TIU
VINYL CAP, SHORT, ROUND; OEM P/N: 183863
AP_P06BJIWSMNGMKRVRJT70VA
ANCHOR, SCREW, #6, PLASTIC; OEM P/N: 186207
AP_ZS4KJTDA0P91X1XAWAZ3SO
GRILLE, BLACK; OEM P/N: 192410-019
AP_1MG04HO5WVQQ78OLI37QDD
GRILLE, WHITE; OEM P/N: 192410-029
AP_TM4DF5NWQPT532OA614NHQ
LOGO, 1 IN DIAMOND CUT, BLACK; OEM P/N: 193250-11
AP_33BY21Q2Y9A55LMEQEGTZY
LOGO, 1 IN DIAMOND CUT, WHITE; OEM P/N: 193250-12
AP_KCGLN5FN3XC0Z2F7VXS4UV
BUMPER, RECESSED, FOOT, .88 IN, 4 PACK; OEM P/N: 142839
AP_Q7HI5YE4X471TBB1Q64JY0
PACKING, CORNER, POST, BASS MOD; OEM P/N: 148044
AP_DQS51GTV7UNRMEVY4Z2Y33
PACKING, INSERT, EPS; OEM P/N: 172279
AP_KLXH6F90WFHON03IIXZ3I7
CARTON, US; OEM P/N: 183774-15
AP_T5LQYSIF708Q5E9OYOYPPX
CARTON, EURO; OEM P/N: 183774-16
AP_DT03L8TLCRZJ26MLFIERIA
BAG, POLY; OEM P/N: 114522
AP_AXT3TDRIWKQITBBBHXKYO5
BAG, POLY, 10X12X2 MIL; OEM P/N: 144677
AP_RJXTN04Z0NMGPURX7J9JRT
CARTON, CHIPBOARD, SATELLITE, BLUE; OEM P/N: 197330-002
AP_V1E3YHWCE02XIVM8G3E3LN
CARTON, SATELLITE PACK; OEM P/N: 251950
AP_ISKWIJF9LVQQ9Y45R2OTJI
SHEET, INSTRUCTION, ADAPTER; OEM P/N: 147751
AP_A7UEDN84L8XPZJGIQAI4M7
OWNER'S MANUAL, ENGLISH/SPANISH/FRENCH; OEM P/N: 251174
AP_BN8TG2LAW2M4PIWB1GXXH8
OWNER'S MANUAL, DANISH/GERMAN/ITALIAN/DUTCH/SWEDISH; OEM P/N: 251177
AP_Y96VMLZ4TA8N8TUGF6OK57
BROCHURE, ALL PRODUCTS; OEM P/N: 188898
AP_YKL7GN760UILAQY29UBUXB
CARD, INFO, WARRANTY, US; OEM P/N: 181357
AP_B9UEXNPO651U0HRZA3OBOO
CARD, INFO, WARRANTY, MULTIPLE LANGUAGE; OEM P/N: 181460
AP_KHSHTA2IBS11OEBLQMPC97
CD, DEMO, US; OEM P/N: 183768
AP_H8K7QB6T10QROGIHHXVBTB
CD, DEMO, EURO; OEM P/N: 183769
AP_U8F2L8TJPXXJ1TCYGA4VOV
SAFETY SHEET; OEM P/N: 176236
AP_BD71U3Z8A7H8C78FHNGPAJ
DECLARATION OF CONFORMITY; OEM P/N: 251179
AP_OFESO4JUEU2V975IG7IOCB
COMMITMENT LETTER; OEM P/N: 251001
AP_27NX6ZDGGGIJV244SI1HPF
SCREW, TAPP, 8-11X.75, PAN, XRC/SQ; OEM P/N: 172672-12
AP_9RH2A3V3EPOUNGZWZFMCVA
SCREW, TAPP, 8-11X1.25, PAN, XRS/C; OEM P/N: 172672-20
AP_YIFGV197RN36SXBF5WEXH5
SCREW, HILO, 6-20X.625, PANHD, XRC; OEM P/N: 172779-10
AP_9I51J4S9HJ4DOQVVKVLEJI
SCREW, HILO, 6X.38, PAN, XREC; OEM P/N: 147516-06
AP_A75EMZ06P0QRIWFSPIQW13
ACOUSTIMASS MODULE CABINET SHELL
AP_7SRU6PS9KKCIFP7WNXTIWD
BASS REFLEX PORT TUBE
AP_NF8CO0823YFF1UGURHF9GZ
PORT FLARE/VENT TRIM
AP_9J27CP8B2Y573DZTNDVU2U
SATELLITE ENCLOSURE, UPPER, BLACK
AP_HTMXRMDEMFVTBOM112VJ1Q
SATELLITE ENCLOSURE, LOWER, BLACK
AP_DDA80DSWEZY8GHJG9VO3J7
SATELLITE ENCLOSURE, UPPER, WHITE
AP_M6ZTWSDOR57ZAMQVXT6DYV
SATELLITE ENCLOSURE, LOWER, WHITE
AP_6LXWAA8BNRCUVWPZ6V6NRX
SATELLITE TWIDDLER DRIVER, 2.25 IN
AP_FX1NAV4GMI4CTZGOH5CYBT
SATELLITE INTERNAL SERIES WIRING HARNESS
AP_T8VHG167EFZ9IKFN2GXSDJ
SATELLITE PIVOT/ROTATION JOINT HARDWARE
AP_4I27O1JBOJFY3ZDL6E7BGZ
SATELLITE REAR TERMINAL/CONNECTOR ASSEMBLY
AP_9U0P9YXIDN0OFHUEIR2XU3
MODULE INPUT/OUTPUT CONNECTOR LABEL
AP_Y07DPP2Z89WWVDU2UGN506
MODULE SERIAL/RATING LABEL, 120V
AP_MAQPQ2D7U3RBVDZR1WLAA1
MODULE SERIAL/RATING LABEL, 230V
AP_KZR71GDJGY5G129L7VHJ8L
MODULE SERIAL/RATING LABEL, DUAL VOLTAGE
AP_8AJMDJN1FK8FQ0S1TKCCZ7
SATELLITE PRODUCT LABEL, BLACK
AP_LB880XFJ16IHK00YZKB7HA
SATELLITE PRODUCT LABEL, WHITE
AP_5ZT2AE0P0OLRAXBM2YNCYX
THERMAL GREASE, AMPLIFIER HEATSINK
AP_U3JV8RI8LG4O268XREADAV
THREAD-LOCKING COMPOUND, SERVICE
AP_ANJPD5RGFNOXEHXSQ71NLW
FOAM/ADHESIVE SEAL TAPE, CABINET
AP_I2KYV4ENP8WA0PCTR82OJV
ESD PROTECTIVE BAG, PCB SERVICE
AP_J906XEQMMC46M0HR9WN2VE
SERVICE MANUAL, AM-5P IV; OEM P/N: 254125
AP_P5MHC821MZUKR4SK9FSTFD
5-PIN DIN AUDIO TEST CABLE; OEM P/N: 172296
AP_7UUMHX7M7EVVS0620YOWHJ
SERVICE TEST LOAD RESISTOR, 1K
AP_SFLQRNFQ7BR98L5AF38F36
SERVICE JUMPER WIRE
AP_6C2RZIWS2VH70HU0Q2GSTB
PLASTIC FLAT-BLADE GRILLE REMOVAL TOOL
Repair, service & parts, for your Bose Acoustimass 5
- 1 Repairs are performed on a best-effort basis. Acme Revival utilizes a network of sophisticated technicians and engineers with diverse service offerings; despite this, factors that influence the repair outcome may ultimately prove unsuccessful. Acme Revival makes no claim that it can, guarantee a repair before your device is sent in for diagnostic evaluation; even then, repair and diagnostic work are not mutually exclusive. Despite well-intentioned quoting, repairs may still prove unsuccessful.
- 2 Parts known to Acme Revival via Acme’s Neural Network and documented discovery. These parts may not represent OEM cataloging nor does Acme Revival guarantee display accuracy. Always check with Acme’s Help Desk to ensure availability and accuracy. Parts may not be in new condition, may be unavailable, discontinued, or not offered for independent sale.
