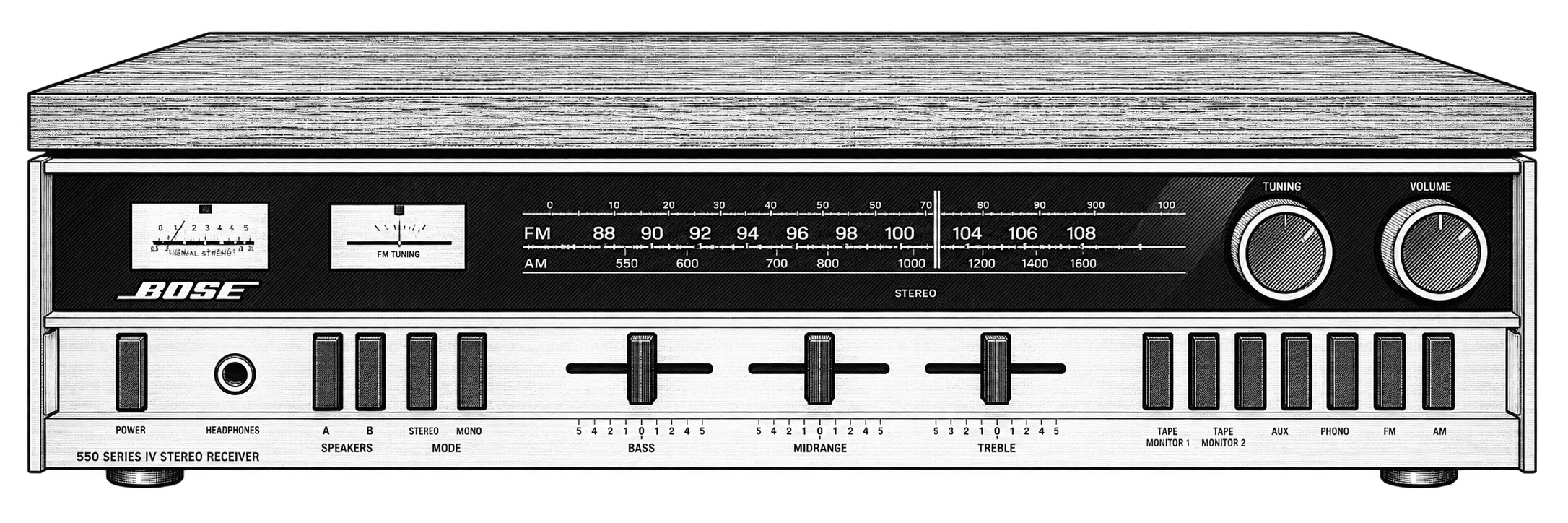

Acme Revival connects your Bose 550 Receiver with a nationwide network of skilled electronics technicians built to fix what manufacturers won't. Start online, ship it in, and track every update and outcome in one transparent Service Dashboard.

1

Repair

$79.00

FLAT-RATE REPAIR (LABOR)

90-Day Warranty No-Fix Repair Guarantee

Revival’s flat-rate repair service is a best-effort attempt to diagnose and repair the reported issue. The advertised price covers technician labor only and will not increase.

If replacement parts are required, we’ll provide a separate quote for your approval before proceeding. If we can’t complete the repair, your labor charge will be refunded. A separate $25 Repair Network Service Fee applies, along with return shipping & handling. These charges are non-refundable.

Repairs may be limited by device condition, prior damage or modification, safety concerns, or unavailable manufacturer-controlled parts or resources.

Most Recent Repair Requests:

We’re still collecting data here.

2 (Known) Parts List:

AP_61YL8T9M92C93LEEWAPU6R
MAIN PCB ASSEMBLY
AP_KH5TTAUF1TE4FHO8D5DZ2R
901 EQ PC BOARD ASSEMBLY
AP_NJ6JC0EG3C8TDQLY8J8BR8
FRONT PANEL ASSEMBLY; OEM P/N: 112889
AP_T9KCZZBMOOF1AI90JZN3V3
POWER TRANSFORMER; OEM P/N: 112299
AP_BDSC02QMREBOGFPWQD542K
CABINET; OEM P/N: 112344
AP_7XRGALX4UCYNUXM80BBVC9
HEAT SINK; OEM P/N: 112894
AP_H69951O0ZSZEKWEUM65JZG
TERMINAL CHASSIS; OEM P/N: 112891
AP_83XQ0KP3I3J9LLK472TV5J
CONTROL CHASSIS; OEM P/N: 112898
AP_DP5YO4163BBPQDLOS5RVYU
CHASSIS FRONT; OEM P/N: 112897
AP_EBIMUZOKAZBRYCAF6FS8IT
JOINT CHASSIS; OEM P/N: 112899
AP_L4RIR7E767VSAJMU7MRR37
SUB. CHASSIS (A); OEM P/N: 112900
AP_K20RJ7ZMBEWJ579U9ZOBG5
SUB. CHASSIS (B); OEM P/N: 112914
AP_0VNLR1JL0ZRJIN1OMC71DO
DIAL LAMP PC BOARD ASSEMBLY
AP_DQRWKLTSKEU3BVWLYSNNG3
SELECTOR LAMP PC BOARD ASSEMBLY
AP_YPFD09B4EHRO9GCERA2TZC
METER LAMP PC BOARD ASSEMBLY
AP_2I1JZQ33Z03TTEL32OBQZJ
TUNING SHAFT ASSEMBLY; OEM P/N: 112906
AP_11SS68SU2UP8XIKLABXIKP
TUNING METER; OEM P/N: 112173
AP_MJLISYKB3F8J6U6IUWZJC3
SIGNAL METER; OEM P/N: 112172
AP_IYLMF2FAZVPMAE9YBK4V8L
VARIABLE CAPACITOR; OEM P/N: 112361
AP_NGS5QQS80VB4ALG66SHG5O
FRONT PANEL INTERNAL WIRING HARNESS
AP_THKP1IGRLWH5L4X3LRIIMT
MAIN INTERNAL WIRING HARNESS
AP_A32RG2DAGS69MAGCTQTPB2
POWER/AC OUTLET WIRING HARNESS
AP_OT1NGK1KOLJCFEMBBW7MJU
ANTENNA/TUNER WIRING HARNESS
AP_WDAFP08PB1VRGRRBPJ2EDU
OUTPUT TERMINAL WIRING HARNESS
AP_ZO1JYDTISR027OXZ6U5N9W
CONTROL PANEL; OEM P/N: 112346
AP_HXLSAXXAOEO37JYVKAMHJH
DIAL WINDOW; OEM P/N: 112345
AP_XMOS8C691W24XX81UN22A5
DIAL SCALE; OEM P/N: 112892
AP_73X3VYYJMELK2PHECW6WJU
DIAL WINDOW COVER; OEM P/N: 112893
AP_PKQDI0VUOJ5HX4O6ZJ35CS
BOTTOM PLATE; OEM P/N: 112890
AP_JS791EV7Z4S50UKOJZSWGR
OUTPUT TERMINAL; OEM P/N: 112309
AP_JQAELMMQ53WSW0T2L6DSS2
8P JACK; OEM P/N: 112328
AP_FIIU0MCA0OHINBDNGPKLZ0
F TYPE TERMINAL; OEM P/N: 114125
AP_NGEYVLUNVUFVID6X9HNSI9
ANTENNA TERMINAL; OEM P/N: 112362
AP_UCH939W6TXL6GYSFI3NDJ7
AC OUTLET; OEM P/N: 109866
AP_T04IAEVSKJVYYT64G76MUE
AC CORD; OEM P/N: 112304
AP_IJ3ZBY4E5PYP9RRQ27TXJ3
AC CORD, 220-240V EXPORT
AP_E6VNNSHD4RFPKJX6Z5PZR7
POWER SWITCH; OEM P/N: 112303
AP_YXIP5LIC8ZD08Q5AAM9HHV
PUSH SWITCH; OEM P/N: 112326
AP_H3QO8H47S07ODEDR88IZGQ
PUSH SWITCH; OEM P/N: 112308
AP_2UKCJBSYMV72X51EN7ENGZ
SLIDE SWITCH; OEM P/N: 112176
AP_RTF25G9U551N0TQ8W8RYYP
250k (volume); OEM P/N: 112329
AP_JTI5LKNJ5RKBJKWJO9X395
250k (balance); OEM P/N: 112330
AP_LPLQKEBCGDT1SOYY6KT7IK
25K (bass and treble); OEM P/N: 112310
AP_JE3AMSSAA0U8UZ9OQ2RUHX
3k (amp current pot); OEM P/N: 112324
AP_PBGB28MXJXWZM671TA6CX2
20k (seperation); OEM P/N: 112247
AP_OBY4IMQAOG4BC1F486QQ73
5k (19kHz pilot); OEM P/N: 112343
AP_QF5IDHW9LNNRNE5SZS8G3N
HEADPHONE JACK; OEM P/N: 109870
AP_X6U0YY41AG6CT6XU8Q94RN
SHIELD PLATE (A); OEM P/N: 114094
AP_F4RG421Z83GVXFDS374OJO
SHIELD PLATE (B); OEM P/N: 109912
AP_HLMOL02E11R3GKH4C9U4UQ
DIAL SIDE COVER; OEM P/N: 112895
AP_1O1MFTFAV6IH8JMCKIORN3
SLIDE POT COVER; OEM P/N: 112896
AP_6FLGRC3MY9W6RHDRRMRT1P
CHASSIS HOLDER; OEM P/N: 112352
AP_HFJ3J2SXTO9EXOZC9AMPRC
CABINET HOLDER, METAL; OEM P/N: 112911
AP_DGDRUE45ELJEEPQU1ER93R
HEADPHONE HOLDER; OEM P/N: 112904
AP_7GV0EGD85NABKZ3T7K5IJX
TERMINAL HOLDER; OEM P/N: 112905
AP_L3OIO2UIXIBQXSAZF3D24R
PCB HOLDER; OEM P/N: 112325
AP_3MEC6VEF0ONL80L7QM7AXT
PULLEY HOLDER (A); OEM P/N: 112903
AP_M43GPSSB81NDM7XWS0I8G6
PULLEY HOLDER (B); OEM P/N: 112902
AP_18PTC8VRSHUNE4GLTJ7KIR
PULLEY HOLDER (C); OEM P/N: 112903
AP_6B72W6IEEG15CO4SU08WPY
DRUM; OEM P/N: 112912
AP_E21NYREVAMU48UKZUJQGRN
DRUM SPRING; OEM P/N: 112913
AP_OT098EFUI5038U22Q4R6TJ
TUNING PULLEY (C); OEM P/N: 112908
AP_BQLJA6NX36MZMR321I90TP
PULLEY; OEM P/N: 112909
AP_0J848PJO49768GBA81B270
PULLEY; OEM P/N: 109841
AP_O1EH2IEQMH0KC45GGKXXG0
SLEEVE HOLDER; OEM P/N: 112907
AP_DFGEWNBU1Q2UOV2YQVV9SF
POINTER; OEM P/N: 112347
AP_HKKWSMJBGTOVEH9E5KFDYX
POINTER BASE; OEM P/N: 109839
AP_717AKHH0S6TIAY9A500CFI
POINTER TAPE; OEM P/N: 109848
AP_E755PRYTO1TW4B6BFK4HZL
DIAL CORD
AP_Y6PIR5FMIUI9ASOHL6TJJI
CORD STOPPER; OEM P/N: 109843
AP_QWFMCTAC1H6AKBP69K041R
VOLUME KNOB; OEM P/N: 112276
AP_QKTUEZEQEJBBUCKIXMI5AZ
TUNING KNOB; OEM P/N: 112277
AP_B07UXP5QEP68EYBPIWHFHV
PUSH KNOB; OEM P/N: 112228
AP_XFMJPZ3KY8EJQ1X48UPSIU
SLIDE KNOB; OEM P/N: 112229
AP_S0PXQ14H1S8NUSX3G7O161
KNOB, GUIDE; OEM P/N: 112353
AP_IN1QTJ8HGJABSPJU31CWSX
BADGE, LOGO; OEM P/N: 112349
AP_WGHSJ1GQWGIWOTVUU4AOUG
FUSE COVER; OEM P/N: 112348
AP_U4GXN9ZYE4JVSQTOF49HRV
FS78 15C (ZENER IC); OEM P/N: 112290
AP_7K6FWLGMFXBVPQIZLI6WD0
HA11211 (FM IF); OEM P/N: 112114
AP_X8HRDVWHS1GPHDW35F1ZHB
HA1156W (MPX); OEM P/N: 112294
AP_WNU7QJNW5GSDH9HTPQUS8F
BA312 (PRE AMP); OEM P/N: 112295
AP_4EZZR8O0BGXCR88Q5IUBYB
4558D (OP AMP); OEM P/N: 110369
AP_4U8B23SVUKK574B7ARFTKF
2SD587; OEM P/N: 112283
AP_QWHVV9EKRL23MTD8ATX6KJ
2SD415; OEM P/N: 112286
AP_2YMDFJS45RF13AUKMJOVKH
2SB549; OEM P/N: 112287
AP_ICLO0C3J9334UFYVN3QB2T
2SC1845; OEM P/N: 112284
AP_F2T77S4O41X33NGI1EW6SR
2SA1915; OEM P/N: 112285
AP_WC6N0VSUF6GF3MDIFBWZKA
2SC1384; OEM P/N: 112289
AP_DEQQR7FARZXZF78AQ93TPF
2SC945; OEM P/N: 112288
AP_8CC7RA9PG9WW2NA4HGXZVZ
2SD655; OEM P/N: 112300
AP_B4XJLW72HHUW586ZYKWVKH
FET 2SK49; OEM P/N: 112298
AP_1WU7CCTTF11OQ9OGNFNBT7
FET 2SK55; OEM P/N: 109879
AP_ACDDZBVXJL95TVJK2TPXIW
2SC535; OEM P/N: 109880
AP_NDCXQSCAPG48VAK4ZMG5RD
2SC461; OEM P/N: 109881
AP_1BRJIIV6JJHELHXPZ1LOAC
2SC460; OEM P/N: 112241
AP_WR3ISFEOSYFTC1Z2X87E1T
2SC458; OEM P/N: 109885
AP_I45O5I8P2972MOUQJZ89XJ
2SA836; OEM P/N: 109887
AP_99DUM4XWVLCQPYNHU6HHAS
2SC1335; OEM P/N: 109888
AP_DKDA0B7O0AFF4HD2MAY8AU
WO-6B; OEM P/N: 109896
AP_I5R96PICULXPM109HBFFWD
1SR17-200; OEM P/N: 112291
AP_05QLP4FTZCGEKY8WDOQWAZ
1S2787; OEM P/N: 112301
AP_YH8V1P8RYU27TOYU2D4RF4
1K261; OEM P/N: 112302
AP_YZP2PKIKUTX7PRZ05GHSZ1
WZ140 (ZENER); OEM P/N: 112293
AP_VT7T1I16C24L8VT9UYOM8Q
WZ090 (ZENER); OEM P/N: 112292
AP_U088T5WL71BJ5TOWHHU1QJ
6800/50V Electrolytic; OEM P/N: 114117
AP_MLJ5SNC9TBY7LTRXX7YK4C
1000/35V Electrolytic; OEM P/N: 114115
AP_1O3VVF84ZQPZEL2KVMCZ99
1000/16V Electrolytic; OEM P/N: 113364
AP_ZAIVMK89PBGWY2UKYK73A0
470/16V Electrolytic; OEM P/N: 113407
AP_W7NINJZ4V9VDUNH70V67TF
470/6.3V Electrolytic; OEM P/N: 114082
AP_K2NK65BKH727NMPPXLR4Z3
220/50V Electrolytic; OEM P/N: 114116
AP_WE1ZRV4590I5J56BFZCI60
220/25V (LL) Electrolytic; OEM P/N: 114108
AP_9FP3JWEEAE34YGS20NSFHX
220/16V Electrolytic; OEM P/N: 114106
AP_DFJJMGPLWSB53I4RAXHS6D
100/50V Electrolytic; OEM P/N: 114113
AP_K9DAM7VXE173SBPW0L88G2
100/35V (LL) Electrolytic; OEM P/N: 114106
AP_BYRQUNPB0TB2PWYXJE2FOB
100/35V Electrolytic; OEM P/N: 109969
AP_OR83LO5YTPMTQWNEB1GUHN
100/25V Electrolytic; OEM P/N: 114114
AP_M0OHJEEXEHRGWTNAA3ND90
47/50V Electrolytic; OEM P/N: 114118
AP_9A9BM7BFMHH6U16ZSMQVLQ
47/25V Electrolytic; OEM P/N: 114110
AP_5XAN2N492NY0GQ7BXK9GK0
47/16V Electrolytic; OEM P/N: 109962
AP_XYG6CG86CQW5213BMJOSNH
33/16V Electrolytic; OEM P/N: 113412
AP_TO4LTP4EYZHIGYLA1B717S
22/35V (LL) Electrolytic; OEM P/N: 114107
AP_Y5RYBPX2Y346WVXL2JXI6C
10/35V Electrolytic; OEM P/N: 114083
AP_JFJXA49WKF57JUMZRJS5KY
10/16V Electrolytic; OEM P/N: 113303
AP_9F2ME2YDRN0FXMKTQ9U575
6.8/16V Electrolytic; OEM P/N: 114075
AP_5H3JIL7AA2UUTPJKBTZAMC
4.7/35V (LL) Electrolytic; OEM P/N: 114081
AP_ML9N23K9IZ0TJP2BYRK0RT
4.7/16V Electrolytic; OEM P/N: 113301
AP_SLETTSBQEBU2KFMZ32ZDY9
3.3/16V Electrolytic; OEM P/N: 113297
AP_XR99ABJDXTX36W27FVTL0B
1/25V Electrolytic; OEM P/N: 112271
AP_NVRRECFD6IXG0O7B7TZ5DV
1/25V Electrolytic; OEM P/N: 114127
AP_LG2ABO6JDBQIANC30O4NNK
1/16V Electrolytic; OEM P/N: 114074
AP_0YKQWPESXFYI85VE73KF9K
.47/25V (LL) Electrolytic; OEM P/N: 114079
AP_M5WS1DLEIN82X2MT7JXND8
.33/16V Electrolytic; OEM P/N: 114073
AP_QY15UJ18W5O5E1YIJ4AS6B
.22/25V (LL) Electrolytic; OEM P/N: 114080
AP_KMV16LBB3HX9MAC1XETG64
.33 (K) Polyster; OEM P/N: 112315
AP_Y64XBKXDSBS2BZIC8I35VW
.33 (J) Polyster; OEM P/N: 112199
AP_GT297JM1VIXKWHMB1WYOKE
.27 (K) Polyster; OEM P/N: 112314
AP_VTJ3953VFAYPJTRQWMQYP4
.22 (J) Poylster; OEM P/N: 112198
AP_PF40S2Y11QJ716730QNT2A
.15 (J) Polyster; OEM P/N: 112197
AP_IGV5KG1L8DPJOJWE3MSU0X
.12 (M) Polyster; OEM P/N: 112342
AP_KDZQBQUY9PYBW63SSGZXT2
.047 (M) Polyster; OEM P/N: 112222
AP_Y8OD9YSKGF4U8LHBETNC04
.047 (M) Polyster; OEM P/N: 112313
AP_O9OAVZYXHQM3EHUO0AG1M0
.022 (J) Polyster; OEM P/N: 109972
AP_8MOVT068ATN4A4F4EL6T6N
.015 (K) Polyster; OEM P/N: 114105
AP_YLJ270COPIRRJJFUJ31Q5H
.0068 (G) Polyster; OEM P/N: 112202
AP_8Y5MFRIA5TZ5XF67QPS4L7
.0036 (J) Polyster; OEM P/N: 114126
AP_I4Q4J6YBHMV0PLQSH1FP4K
.0022 (K) Polyster; OEM P/N: 112313
AP_RUT5IJCQ9BLU95NKNDLWI3
.0018 (J) Polyster; OEM P/N: 109967
AP_N79FXLFSHWBUZNP1SN0P4K
.0012 (G) Polyster; OEM P/N: 112201
AP_1NNA2HNB2PQADK000DD4EY
.0012 (J) Polyster; OEM P/N: 112274
AP_R9361CGRB90VRWWRA8J9PN
.0043 (J) Polyster; OEM P/N: 112340
AP_Q6O54D8EYX5ZTCDXF78EBY
.0012 (K) Polyster; OEM P/N: 112312
AP_N8FY4UXBNPXWJ0FIUUO9ZZ
350P (J) Polyster; OEM P/N: 109956
AP_5CDNCJWJ64W4C7RLOF0QT3
470P (J) Polyster; OEM P/N: 109945
AP_LDJ1YX1OFW3INTW28HJZZY
.0068; OEM P/N: 112363
AP_295YM9IVLJZKT27WU0NAAY
.047 (YZ) Ceramic; OEM P/N: 114071
AP_5MP33HBQRIG7V0ZBZIXZI8
.022 (YZ) Ceramic; OEM P/N: 114069
AP_OQORIROM5V5ONIPGJBFU90
.01 (YZ) Ceramic; OEM P/N: 109931
AP_191SZG71ZBAA4ETXYZ1EN4
.01 (YB) Ceramic; OEM P/N: 113270
AP_KZIIQN950MLECYR96SY5M5
.0056 (YB) Ceramic; OEM P/N: 100397-7
AP_D1G8A2TWJ9EO4QZ17F4IY0
.001 (YB) Ceramic; OEM P/N: 100397-3
AP_G6L43CYLKJUQDWADW8B8EB
470P (YB) Ceramic; OEM P/N: 113356
AP_1QK35DQ6LVG9V6DV1YUROB
470Pf (K) Ceramic; OEM P/N: 114111
AP_36881FNQ9F4WTW9X0HVQDK
330P (K) Ceramic; OEM P/N: 109944
AP_CL9XPITODHDDFTHWPT7M3O
330P (J) Ceramic; OEM P/N: 113304
AP_XKQDOPN91Q49D9PG068E6O
180P (J) Ceramic; OEM P/N: 114076
AP_W6Y4O28DFII6R174V3NYVJ
150P (J) Ceramic; OEM P/N: 114084
AP_UCACMTSHCMENCX10I4Y5UV
150Pf (K) Ceramic; OEM P/N: 114110
AP_VXXVRPH6LQM4KBXMH6W1PU
100P (J) Ceramic; OEM P/N: 109939
AP_SSS6J89INR0E8UPAPTEZFY
100Pf (K) Ceramic; OEM P/N: 109939
AP_VIP3EEPYLO1W5DCBF86I1A
56P (J) Ceramic; OEM P/N: 113295
AP_Y6KU9QEMR8NX85ICOSKI1U
33P (J) Ceramic; OEM P/N: 113357
AP_H6C5P92CW33NDYMZBIFSIY
30P (NPO) Ceramic; OEM P/N: 109937
AP_X7R6IGS1X9ZUN95DWXEBQC
27P (J) Ceramic; OEM P/N: 113280
AP_5TPR7T0PCCB1DEY2BF5IAO
22P (J) Ceramic; OEM P/N: 113310
AP_1CDZKCR0RI2RLEFVPSGTN1
16P (N470) Ceramic; OEM P/N: 114072
AP_86ZBSKR9AS33FXZVMXT9ZY
15P (N470) Ceramic; OEM P/N: 109934
AP_FOAAIR39IVZISSDU4TRLH1
15P (N2200) Ceramic; OEM P/N: 114078
AP_SC13GEER84DKUKLLO3CEA9
10P (N470) Ceramic; OEM P/N: 109928
AP_ZAI1TUDBPTX6RIOCGL03UQ
10P (NPO) Ceramic; OEM P/N: 109932
AP_RMK0V2TPAD1D3TNQQSSCZ5
10Pf (K) Ceramic; OEM P/N: 109964
AP_X64EAVF31YQN9MIVLYOJZK
6P (J) Ceramic; OEM P/N: 114077
AP_JO0PTMU86OG8CUJDXWI2WN
2P (NPO) Ceramic; OEM P/N: 109935
AP_ZM9JOL0XFUHYJEOZZ11V6P
2Pf (D) Ceramic; OEM P/N: 114112
AP_15GKGB4ZWHUCWFOGQWIZOK
1P (NPO) Ceramic; OEM P/N: 109935
AP_E2N1AKIGG5OWSD0QMY8AZM
.47Ω 5w (J) cement; OEM P/N: 112323
AP_8LH1IFSXPH2HID42DOJSK7
22Ω 2w (K) metal oxide; OEM P/N: 112226
AP_UXU9ZH0NTNMCQG0GWZTWHH
82Ω 2w (J) metal oxide; OEM P/N: 112322
AP_6GNELC181FGEJ1BTH0UN58
3.3kΩ 1w (K) metal oxide; OEM P/N: 112319
AP_AGXHJGJ6S299JGSD55CODS
330Ω 1w (J) metal oxide; OEM P/N: 112321
AP_MVPSHUO0T780LHF7MOPT0O
180Ω 1w (J) metal oxide; OEM P/N: 112320
AP_8CMNU64AHFALM5PFLYOOU2
4.7kΩ 1w (K) metal oxide; OEM P/N: 112317
AP_YTPF80TMWH2VT2TZCHMGZ2
2.2 1w (J) metal film; OEM P/N: 114120
AP_PU2X18SDK1PSE42TE0L0KN
47Ω 1/2w (J) carbon; OEM P/N: 113251
AP_2UKGUXI59KW6A5M000QUP5
3.3mΩ 1/2w (K) Solid; OEM P/N: 110888
AP_8TLIZYI6B693TBYLJ2KJRY
150Ω (J) fuse resistor; OEM P/N: 112318
AP_8WDGVZO1GKPDPMLAFYQV0D
4.32kΩ (F) metal film; OEM P/N: 112203
AP_102BMXWT1B3ZS5BDHPHJZL
3.6kΩ (G) metal film; OEM P/N: 113388
AP_B71PCOFOZKCYE1IQAPQP1K
680kΩ (J) carbon; OEM P/N: 114101
AP_WI57LEGDQULXM5BGUW4I0L
750kΩ (J) carbon; OEM P/N: 114093
AP_CNCBS1L2AKAWDFK80PCI5U
390kΩ (J) carbon; OEM P/N: 113382
AP_LQTEAHXONIH7ZLQQB51JJ1
330kΩ (J) carbon; OEM P/N: 114091
AP_HYUIPAWCRG7CJTGD1HQDT4
270kΩ (J) carbon; OEM P/N: 114087
AP_24DE64PK472SUM596E5RGQ
220kΩ (J) carbon; OEM P/N: 113318
AP_NHHLA0NJ1V8Z5MP0JW2CMK
160kΩ (G) carbon; OEM P/N: 113391
AP_J4DHR4T2WB16WMTH0MXD22
150kΩ (J) carbon; OEM P/N: 113283
AP_YBA0RQ4UL13SWZ5PF58ZKP
100kΩ (J) carbon; OEM P/N: 113281
AP_2PQ2K50J26TEEMMU2CPT12
82kΩ (J) carbon; OEM P/N: 113350
AP_B87AHBOUR4WXHYP2CYWED8
82kΩ (G) carbon; OEM P/N: 113390
AP_G33AXWAKH8OYUV8BOE3VDP
68kΩ (J) carbon; OEM P/N: 114085
AP_VFMW3Q4D2V1SWLOQ8AR0KA
68kΩ (G) carbon; OEM P/N: 113394
AP_FE3P76Q599CQZOQ6LFRCWP
62kΩ (J) carbon; OEM P/N: 113399
AP_K2A09YF00CABWSP1PT7ZJ6
47kΩ (J) carbon; OEM P/N: 113343
AP_FT0QO4TVZCY4ICYB7SROLR
39kΩ (J) carbon; OEM P/N: 113320
AP_KLCDSXS4UURWNZ9TW8ZANV
36kΩ (J) carbon; OEM P/N: 114086
AP_B0DSY4QYV4WGXFITJWL76I
33kΩ (J) carbon; OEM P/N: 113322
AP_TTE72WR5IFLRGN7N0V4OLW
27kΩ (J) carbon; OEM P/N: 113286
AP_ZVLCA1GZA79B7U5KPLYVGD
24kΩ (J) carbon; OEM P/N: 113380
AP_H5JMOHO1LQRVQVUIRQAJOY
22kΩ (J) carbon; OEM P/N: 113341
AP_V6HR2RPMZ6I24O477N86VO
18k (J) carbon; OEM P/N: 113367
AP_RSZHVNMF7DHUVAAWNGQFHO
16kΩ (J) carbon; OEM P/N: 114089
AP_3PI0BRR28WZLE8VJM8ATC0
15kΩ (J) carbon; OEM P/N: 113347
AP_8ORHEGZ1KCCWAB793D6WYZ
13kΩ (G) carbon; OEM P/N: 113389
AP_17HUPU2W85NWOKCYJZIUM9
12kΩ (J) carbon; OEM P/N: 113346
AP_WQLG251275R3NWT0X7NZLE
10kΩ (J) carbon; OEM P/N: 113288
AP_GHPPRCNVACNMB8ZDM4VBKX
9.1kΩ (J) carbon; OEM P/N: 114123
AP_9L3KIHR1QS7FQ9DULFG5FR
8.2kΩ (J) carbon; OEM P/N: 113379
AP_YXP59UEX3FSAAK192CVUWO
6.8kΩ (J) carbon; OEM P/N: 113289
AP_446SPQL9JP2U19KLXLSQDB
5.6kΩ (J) carbon; OEM P/N: 114088
AP_DUN1GO5MDOKRSS8Q61Y62B
5.1kΩ (J) carbon; OEM P/N: 113375
AP_FN3REVAUKMSSMJVSR7BPS4
4.7kΩ (J) carbon; OEM P/N: 113377
AP_IV8ZYMXPOQ2KWNB17T0BKZ
3.9kΩ (J) carbon; OEM P/N: 113354
AP_H3TUAKT3MIAZCK7QWHAKK0
3.3kΩ (J) carbon; OEM P/N: 107157-332
AP_UKE2FJJK5UEAZ6JTLZ7JJC
3.3kΩ (G) carbon; OEM P/N: 113385
AP_HL6Q5U7UOFEDZTZAUQCD26
2.7kΩ (J) carbon; OEM P/N: 113340
AP_WBCODD5P6V76GWF8B1CDZO
2.7kΩ (G) carbon; OEM P/N: 113392
AP_EDWAJ5Y2NP4HMOL0HVYOFH
2.4kΩ (G) carbon; OEM P/N: 113393
AP_Q53FFURWRL0ZSGNVOZ4901
2.2kΩ (J) carbon; OEM P/N: 107170-222
AP_2E928MNY6J7ES1GH0A55GY
1.8kΩ (J) carbon; OEM P/N: 113345
AP_3Z9K00SQ0P0ME98243TB8I
1.5kΩ (J) carbon; OEM P/N: 113321
AP_LU0UGVSYAEMEBDR8GDB0ZN
1.3kΩ (J) carbon; OEM P/N: 114092
AP_B1U7Q767QFIPWVFOBOTN3Y
1.2kΩ (G) carbon; OEM P/N: 113386
AP_FNKMFKZG5Y7RGN6JZDIBRK
1.2kΩ (J) carbon; OEM P/N: 113323
AP_SGONHZ4ZWZSXKXFTZZAWZP
1kΩ (J) carbon; OEM P/N: 113238
AP_JPBDGMPELB469C2K6TY541
1kΩ (G) carbon; OEM P/N: 113395
AP_49NL0F4BPP0AVL7O4HWKGD
820Ω (J) carbon; OEM P/N: 113383
AP_HP10XUEVUR0CLPQSGB6XZP
750Ω (G) carbon; OEM P/N: 113397
AP_NRYGLNLMZEF8MSPYXIWDLQ
560Ω carbon; OEM P/N: 113352
AP_4X94MTARKI100YQ6OT086K
510Ω (G) carbon; OEM P/N: 113396
AP_MAHD3ZOW6MESWRCCPOQF6V
330Ω (J) carbon; OEM P/N: 113290
AP_QCOAPH7XBVJWCXB3EPHJM9
220Ω (J) carbon; OEM P/N: 113349
AP_P53GRI0M3KMAS2LZPW7EUV
220Ω (J) carbon; OEM P/N: 113256
AP_EF41SFBG0SWIO8UQOSDXL7
110Ω (J) carbon; OEM P/N: 114119
AP_JRG4DB9JWW65BJ52W0P28B
100Ω (J) carbon; OEM P/N: 113285
AP_E43IFG1368MH179ZWQ8ZMD
22Ω (J) carbon; OEM P/N: 113284
AP_YAB55T960GPZXJ5FSGF36W
18Ω (J) carbon; OEM P/N: 114122
AP_LKST6QUWOEBBCUI6KNQI21
10Ω (J) carbon; OEM P/N: 113351
AP_TYIGM210QCJMKC54MJQ03E
4.7Ω (J) carbon; OEM P/N: 114090
AP_V5HKZQ5R46A75AX1XZARZG
1mΩ (J) carbon; OEM P/N: 113282
AP_24ILGS6H9IMWEF9XDZJOJW
FUSE 250V/4A; OEM P/N: 112311
AP_7DDMD4LJDKJKILBE4CF0AX
FUSE 250V/2.5A; OEM P/N: 112305
AP_MDPYL52FJISK976EJCU6RP
FUSE 250V/2A; OEM P/N: 112181
AP_NFZJHMBQP250ULBRGS12ML
FUSE 250V/1.5A FAST BLO
AP_USDTQVAYPJL6II2UCAYCUB
FUSE HOLDER; OEM P/N: 112159
AP_9SV3BO8UXA7M8USFZAZNOW
FUSE HOLDER; OEM P/N: 112366
AP_262EK8TZSNLGLF6NP3APBQ
200mA/6.3V; OEM P/N: 109856
AP_R3VBC0W35OA41RL0XE9880
150mA/6.3V; OEM P/N: 112296
AP_VR92S7K8UZDJEQVPY3I1DG
65mA/6.3V; OEM P/N: 112126
AP_D5TQFRHM1W048PR8ULFEDQ
65mA/6.3V; OEM P/N: 112306
AP_CFV9ET3MCH3EHVKEQE3SBV
LAMP HOLDER; OEM P/N: 112165
AP_EWSELDMHM4ZQG9YC3UNHHY
FERRITE BEAD; OEM P/N: 109918
AP_OKOKXEDRJOQ4JC3GI7KK1B
SHIELD PAPER (B); OEM P/N: 112915
AP_95YWEP8PFOOJ462YPS880F
SWITCH CUSHION; OEM P/N: 112917
AP_GXIYHKE9B4CYZNCEEU7TBT
GROUND LUG; OEM P/N: 112357
AP_M5NAWQ2MGL8QM4LV75IB90
CHASSIS HOLDER BUSHING; OEM P/N: 112354
AP_ZH740Q5JTTLNXYPBF74S6A
SHAFT WASHER; OEM P/N: 109842
AP_V1VEDDULR6DPWOJE16OZJ0
PULLEY STUD (A); OEM P/N: 112916
AP_O6H4ST0TPB65ZWOSZLXR4L
PULLEY SCREW; OEM P/N: 112910
AP_U2Y60WGM6A2WLSXPGII1XO
FOOT, CABINET; OEM P/N: 109820
AP_SXEG20QU1XHDL09LNF7D9P
SCREW, CABINET; OEM P/N: 112350
AP_Z0ADT6JZLDGWVMVL0POE98
SCREW, GROUND; OEM P/N: 112351
AP_CBTFEIWR8BBY8HYI7JVF9B
SCREW, M3-8 TAPPING, BLACK; OEM P/N: 112919
AP_NCXYBZ7FL4ORIA5Y1ZH4M1
SCREW, M2-4, SLIDE POT; OEM P/N: 112930
AP_8HCATBAPHTUDPHZ9Y0NRMP
SCREW, M4-20; OEM P/N: 112930
AP_9797FGARR8DTEH2IE5FKQY
SCREW, FRONT PANEL
AP_AD4OXIFGAPVJGSXAIU4KPG
SCREW, LAMP PCB
AP_UCGHC94QEC4LOF1NNMKMUN
SCREW, POWER SWITCH
AP_V7HREYU9IGVCXECQ7MLC2A
PLASTIC STANDOFF, 901 EQ PCB
AP_0PW0KCRV9K641N80RPD20Z
FRONT PANEL RETAINING CLIP
AP_GDTOOZA2BTPJLWSNEGMB4O
CABLE TIE
AP_7YILFCTRILER9XWCX29XID
CRIMP INSULATOR
AP_7VNZGMBSNGD3ADNYCHUVMX
INSULATING TAPE
AP_ACUWGDO1MGAJZBUAA9LYIQ
VOLTAGE CONVERSION LABEL, 240V
AP_VEZNKDSC7EWGNSK1J5BGX0
MODEL/SERIAL NUMBER LABEL
AP_JFCO8JRIH2ZM06OT69XTBY
SAFETY/RATING LABEL, 120V
AP_SL3J28H4OQR6EIRCPMA6FZ
SAFETY/RATING LABEL, 220-240V
AP_D297L63T7NVJILF0B0VV0E
FM ANTENNA LEAD
AP_MVLXMTLNUM2P52LGGCIK8G
AM LOOP/BAR TEST ANTENNA SERVICE FIXTURE
AP_ESC789ALA78R67G221EXOF
8 OHM DUMMY LOAD SERVICE FIXTURE
AP_MAIH15V4RZY3XBOTPYP2YA
MODEL 550 OWNER'S MANUAL, ENGLISH
AP_5ZFRNH7IKFTSXU99LERZE6
MODEL 550 SERVICE MANUAL; OEM P/N: 112429 REV 01
AP_L246XQJC2QDY7JGHLMM4RP
WARRANTY/REGISTRATION CARD
AP_SXX696SWWZ4V48IAM5KXM1
PACKING POLY BAG
AP_UK599VJLAKYNS1RNCLFE9P
TOP PACKING INSERT
AP_C7NKKV9FTIARYWQC4ISJI6
BOTTOM PACKING INSERT
AP_4I097M68TYQXKGRH1OJSHU
PROTECTIVE FRONT-PANEL PAD
AP_2W650UMU32ULOE8NHQASAO
ACCESSORY/DOCUMENT BAG
AP_3SHL4AS28S29RPG6TKBT7Q
SHIPPING CARTON
AP_TV1KHJUZPEKXSNOLKRIIN6
SHIPPING CARTON LABEL

Repair, service & parts, for your Bose 550 Receiver

  1. 1 Repairs are performed on a best-effort basis. Acme Revival utilizes a network of sophisticated technicians and engineers with diverse service offerings; despite this, factors that influence the repair outcome may ultimately prove unsuccessful. Acme Revival makes no claim that it can, guarantee a repair before your device is sent in for diagnostic evaluation; even then, repair and diagnostic work are not mutually exclusive. Despite well-intentioned quoting, repairs may still prove unsuccessful.
  2. 2 Parts known to Acme Revival via Acme’s Neural Network and documented discovery. These parts may not represent OEM cataloging nor does Acme Revival guarantee display accuracy. Always check with Acme’s Help Desk to ensure availability and accuracy. Parts may not be in new condition, may be unavailable, discontinued, or not offered for independent sale.
