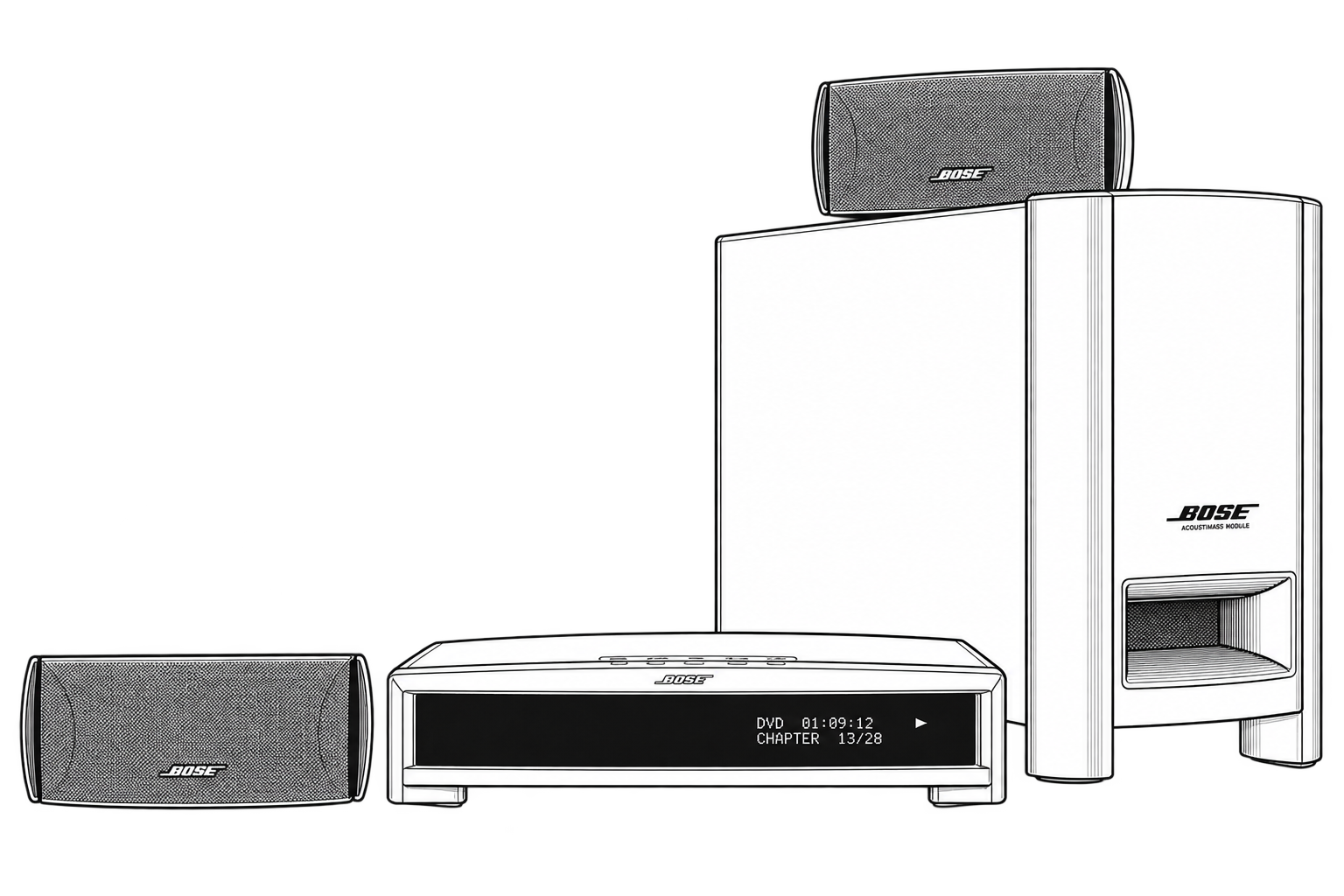

Acme Revival connects your Bose 3 2 1 with a nationwide network of skilled electronics technicians built to fix what manufacturers won't. Start online, ship it in, and track every update and outcome in one transparent Service Dashboard.
1
Repair
$102.00
FLAT-RATE REPAIR (LABOR)
90-Day Warranty
No-Fix Repair Guarantee
Revival’s flat-rate repair service is a best-effort attempt to diagnose and repair the reported issue. The advertised price covers technician labor only and will not increase.
If replacement parts are required, we’ll provide a separate quote for your approval before proceeding. If we can’t complete the repair, your labor charge will be refunded. A separate $25 Repair Network Service Fee applies, along with return shipping & handling. These charges are non-refundable.
Repairs may be limited by device condition, prior damage or modification, safety concerns, or unavailable manufacturer-controlled parts or resources.
Most Recent Repair Requests:
2 (Known) Parts List:
AP_BB9XAVG1QSPL4167FGGIXO
CONSOLE ASSY, 120V, GRPH, RGN 1, (US/CAN); OEM P/N: 256960-111C
AP_T4548X1K2GO3R0GL4T31HO
CONSOLE ASSY, 115/230V, GRPH, RGN 4, (DUAL); OEM P/N: 256960-114C
AP_ZYP74F5D0DZ373JCTZUQO6
CONSOLE ASSY, 230V, GRPH, RGN 2, (EURO); OEM P/N: 256960-212C
AP_OD56GND59S34JC6EUHU1EL
CONSOLE ASSY, 230V, GRPH, RGN 2, (UK); OEM P/N: 256960-2123
AP_BUNNPUKI6VK7HLMQ09T7XJ
CONSOLE ASSY, 230V, GRPH, RGN 3, (S.E. ASIA); OEM P/N: 256960-213C
AP_ZJ49XPDHR3RG9HIA472N7U
CONSOLE ASSY, 230V, GRPH, RGN 4, (AUS,S. AMER); OEM P/N: 256960-214C
AP_RA3PBUD4Q80QFFUEIHMIQ2
CONSOLE ASSY, 230V, GRPH, RGN 5, (AFRICA, RUSS); OEM P/N: 256960-215C
AP_VND4X0NLKJLU473JK6AJMB
CONSOLE ASSY, 230V, GRPH, RGN 6, (CHINA); OEM P/N: 256960-216C
AP_FK0AJKA2N0FDOKUG7L6W1N
CONSOLE ASSY, 100V, GRPH, RGN 2, (JAPAN); OEM P/N: 256960-312C
AP_B3U4RR8NDC3Y2A3U5L6ETM
CONSOLE ASSY, 115/230V, GRPH, RGN 2, (DUAL); OEM P/N: 256960-612C
AP_X69NIW3U36V5D6B2SO0U19
ASSY, BASS BOX, 120V, GRPH (US/CAN); OEM P/N: 255199-1109
AP_HJGBSURDCRPPTFPLA7IHNH
ASSY, BASS BOX, 230V, GRPH (EURO, UK, AUS); OEM P/N: 255199-2109
AP_J9IMCAT41FFYHMWLV127DF
ASSY, BASS BOX, 100V, GRPH (JAPAN); OEM P/N: 255199-3119
AP_SANWALSX9MB5EVLOFRMEQ5
ASSY, BASS BOX, 115/230V, GRPH (DUAL); OEM P/N: 255199-6109
AP_580PMYZ30CERZKG2NOTJKS
ARRAY ASSEMBLY (W/GRILLE), GRAPHITE; OEM P/N: 255198-001
AP_3105PF04FD6DSFFTWR14AO
PCB ASSY, MAIN, PROG, (US/CAN, DUAL); OEM P/N: 263202-100
AP_A9YTBLYLVF41VW5BPPAH4Y
PCB ASSY, MAIN, PROG, (EURO, UK, AUS); OEM P/N: 263202-200
AP_3Y4DCYIK4GTTA87U2T101L
PCB ASSY, MAIN, PROG, (JAPAN); OEM P/N: 263202-300
AP_FW7HJ0WCUFM5RW8J89L0K7
DRIVE, DVD ROM, MODEL 1802, US/CAN; OEM P/N: 273686-001
AP_J29DN79DOJHUCQ005PG4N2
DRIVE, DVD ROM, MODEL 1802, US/CAN; OEM P/N: 273686-002
AP_RNDRA1VR1SLG5T26FJLKNO
DRIVE, DVD ROM, MODEL 1802, NON-US; OEM P/N: 288437
AP_DOWPV3OEFY3WM8MPN9FP88
DRIVE, DVD ROM, MODEL 1802, NON-US; OEM P/N: 289532
AP_GLRIXNBKEDUUG9QONFTR5C
BBOX, PCB/HEATSINK ASSY (US); OEM P/N: 255139-001
AP_0IUZ97N65625X06EQLHNRG
BBOX, PCB/HEATSINK ASSY (EURO, UK, AUS); OEM P/N: 255139-002
AP_CTTHLDY3OKQ4HVFAPS9G82
BBOX, PCB/HEATSINK ASSY (JAPAN); OEM P/N: 255139-003
AP_CM6LH9UNJCZDG24T9TV2HM
BBOX, PCB/HEATSINK ASSY (DUAL VOLT); OEM P/N: 255139-006
AP_3CUPU3JWH1AY2YW84JROLT
LCD ASSY, DISPLAY, PROG, (ALL VERSIONS); OEM P/N: 268046-001
AP_YMTG04R3PSZ57Z8YQ55DQ5
PC BOARD ASSY, BASS (US); OEM P/N: 254575-001
AP_YRVRSJQCNTSBZSQRVDCEZU
PC BOARD ASSY, BASS (EURO, UK, AUS); OEM P/N: 254575-002
AP_O59WUM8IL608W792YYECDA
PC BOARD ASSY, BASS (JAPAN); OEM P/N: 254575-003
AP_SD2JOJ6KI97BALI1VJ98G1
PC BOARD ASSY, BASS (DUAL VOLT); OEM P/N: 254575-006
AP_GXRLH46OONHBPBN05S5WSD
CONSOLE MAIN PCB, BARE, REV. 0-2; OEM P/N: 263069-001
AP_TDUGGTZ89GHVDZZZWGMMGA
CONSOLE DISPLAY PCB, BARE; OEM P/N: 254550-001
AP_5H8ZWMKJXIYH8OZAV0AKJC
BASS AMPLIFIER PCB, BARE, REV. 00/01; OEM P/N: 254574-001
AP_1BPTQJZ27YL6EICISSTS3Q
BASS AMPLIFIER PCB, BARE, REV. 00/01; OEM P/N: 266469-001
AP_IEDNN3ATEDZOG9MIKQ573I
BASS AMPLIFIER PCB, BARE, REV. 00; OEM P/N: 268858-001
AP_P5BHMN4F7K0DH0LX5LWY54
XFMR, EI, 100/120V, 50/60HZ (US, JAPAN); OEM P/N: 261278-001
AP_SRG0NG47P2S34WTSW8NUTX
XFMR, EI, 230V, 50 HZ (EURO, UK, AUS); OEM P/N: 261276-001
AP_AJ2317BSR0VAD7TV7T8IH8
XFMR, EI, 115/230V, 50/60HZ (DUAL VOLT); OEM P/N: 261277-001
AP_ZG7O8URVZ1PCACJMIGW2I6
WOOFER DRIVER ASSY, BASS MODULE, 2 OHM
AP_SGW7Q0P7GEWLZJTXY4UQ2W
BEZEL SUB-ASSEMBLY, 321 & 321 GEMSTONE; OEM P/N: 255127-001
AP_PXPYLGB8A25WC36W2BTRBX
COVER, CONSOLE, GRAPHITE; OEM P/N: 264482-001
AP_CQO5YF29HISPEHL2GL2LEQ
COVER, CONSOLE, PLAT WHT (EURO); OEM P/N: 264482-002
AP_TC4V3DKAW3NTDCYMLLKUSQ
BASE, CONSOLE, GRAPHITE; OEM P/N: 254547-001
AP_LUXLF4MIGYVFUND3UISDO7
BASE, CONSOLE, PLAT WHITE (EURO); OEM P/N: 254547-002
AP_MO48F2B648OFV6AKWBVOL1
BRACKET, SHIELD, DVD (CASTING); OEM P/N: 256949
AP_XMT1WVTXHONIWEQFQBUL63
ENCLOSURE, REAR, 120V, GRAPHITE (US, JAPAN); OEM P/N: 255165-201
AP_7TBDND7WVGRTOG79EQY9KC
ENCLOSURE, REAR, 230V, GRPHT (EURO, UK, AUS); OEM P/N: 255165-221
AP_6K0A8XOGITYAG8BR0YW8NN
ENCLOSURE, REAR, 230V, PLT WHT (EURO); OEM P/N: 255165-222
AP_YBT2P5OGU4T2XZH9FCBID4
ENCLOSURE, REAR, 115/230V, GRPHT (DUAL VOLT); OEM P/N: 255165-211
AP_PY92TR32T4KRPHSIV5OSKU
BASS MODULE CABINET / ACOUSTIC ENCLOSURE
AP_080V824ZV89F4ZFZJL83E3
BASS MODULE FRONT GRILLE ASSY
AP_FURSMT0QBJ8VLO8KOLO0KW
HEATSINK, BASS MODULE; OEM P/N: 267169-001
AP_7LYP07Z4LP58UU9FET2WGT
HEATSINK, MAIN; OEM P/N: 260281
AP_JAMJ1KLEKBRJ658R7UTUQW
SHIELD, ATAPI, FORMED METAL, DVD; OEM P/N: 260472-001
AP_G9AV781FE7ALTB474E5C4S
SHIELD, LOWER; OEM P/N: 266444-001
AP_H9BQAWTQVGD76G9CVSEAFX
PANEL, I/O, GRAPHITE; OEM P/N: 262802-001
AP_2CT567GDUGZS6IY47H5HRZ
PANEL, I/O, PLAT WHT (EURO); OEM P/N: 262802-002
AP_US7CBEDQHU55ET32I1IML3
BEZEL, DRAWER, DVD, 321 & 321 GEMSTONE; OEM P/N: 256957-001
AP_9398I5JCTSB7PFDRCNR9PR
REMOTE, 321, IR, GRAPHITE; OEM P/N: 259820-001
AP_IPHLGAXIWYDNECEGPSFC3I
REMOTE, 321, IR, PLAT WHT (EURO); OEM P/N: 259820-002
AP_IF81V573C87ZSSDSL0FSXL
POWER AMPLIFIER, TDA7396; OEM P/N: 177279
AP_IMUHYZ8Y2VSOIICE60K5SK
POWER AMPLIFIER, 4x30W, HSIP2; OEM P/N: 254541-001
AP_AS68WHZD7L4349F47KOURV
DVD DECODER, CS98000; OEM P/N: 254107-001
AP_35ZHDCOV0NALN2OT48RPEN
DSP, ADSP21065LKS; OEM P/N: 254191
AP_5V9WR67I0DZ94NF89OLDOD
SDRAM, 64MBIT; OEM P/N: 254182
AP_6BP1RGCB5S4SLSKGF0X4AI
CODEC, CS4228A-KS; OEM P/N: 254192
AP_3JUAJ2T069EBIOO5C0L9GK
DIGITAL VIDEO ENCODER, CS4955-CQ; OEM P/N: 256088-001
AP_3FQV1N8FIVSTQVNCCQ51N5
AM/FM TUNER, MFP-30S; OEM P/N: 254561-001
AP_386GPF64U90TGBQC3693RR
AUDIO/VIDEO SWITCH, 4 INPUT, 2 CHANNEL, SSOP36; OEM P/N: 259495-001
AP_CR5P5S66PQ8FRG6UCX7063
DAC, CS4340-KS; OEM P/N: 256087-001
AP_JYKAVE6RED6K3063EV354L
FLASH MEMORY, 16M, 3.3V, TSSOP; OEM P/N: 256089-003
AP_24R472XK9V1SXW6XKN6XLX
SPDIF RECEIVER, CS8415A; OEM P/N: 254193-001
AP_XNAQOVSIO3CEEZN9S6HA26
PLL FREQUENCY SYNTHESIZER, MFP-24; OEM P/N: 199693
AP_OJNP8ASILDH3YX1084QTNJ
EEPROM, 24C01A; OEM P/N: 184044
AP_QPT40UVR5RW83SIVEN78TZ
QUAD EXCLUSIVE OR; OEM P/N: 259548-001
AP_J1YF45XSHQ0FB0FT5E7MII
QUAD BUFFER; OEM P/N: 263182-001
AP_A5BYXWT34EW4F4AMXFVKNR
3.0V REGULATOR; OEM P/N: 193846-001
AP_39Z0SVQ9TW6IFMMNBIO7NT
2.5V REGULATOR; OEM P/N: 258495-001
AP_EC72E1Q98O6RSNDLUO9A27
LM78M10 REGULATOR; OEM P/N: 178352-10
AP_ZIHTO4294DICKUOGCLJ5HK
LM78M09 REGULATOR; OEM P/N: 178352-09
AP_PA5WIEWRM9749NLU6OZURN
5V INVERTER, 74VCHU04; OEM P/N: 258464
AP_HJAZVM8H4K4P8ZCDPDM6IA
MAX809 RESET IC; OEM P/N: 191158-01
AP_3VXLSX4F1BSH9APFS6AMB0
NJM3403, QUAD OP-AMP; OEM P/N: 194024
AP_822US1NE8AKNA6FPNGGSE0
CABLE, FLEX, 172 MM, 24 CONDUCTOR; OEM P/N: 254584-172
AP_8QUU7DLQR64WX645KPUHS0
CABLE, POWER, DVD, 155 MM; OEM P/N: 267278-155
AP_V6VPXS19H7KAZAITGU6L7D
CABLE, RIBBON, ATAPI, 40 POSITION; OEM P/N: 256954-090
AP_84B58VJUXZ1EB2DXQ0A6NU
CABLE, BASS MODULE, 15 PIN, GRAPHITE; OEM P/N: 255122-001
AP_FDMBU2TTDBQJSSU2HJJLHB
CABLE, BASS MODULE, 15 PIN, PLAT WHITE; OEM P/N: 255122-002
AP_93RRE5OTUQZCLFVGF2I3SS
CABLE, ARRAY, 321, 9 PIN, GRAPHITE; OEM P/N: 255123-001
AP_6XOC4GNNH237HH9WNAIS8J
CABLE, ARRAY, 9 PIN, PLAT WHITE; OEM P/N: 255123-002
AP_AUJXTZR9AOZIIM2SJAX8HE
SCART CABLE; OEM P/N: 266221-001
AP_BQ3XB87U8DD1078F62L5TM
CABLE, AUDIO, DUAL RCA; OEM P/N: 185931-01
AP_A79A1IJMVXDCUJ11C0V3S3
CABLE, VIDEO, 6’, YL; OEM P/N: 183200
AP_QFS7MWAEPLAGK3JQ9MNSS7
ANTENNA, ASSY, AM, CD20; OEM P/N: 199824-002
AP_78D0L2N6NMJH3E74L6UBWT
FM DIPOLE ANTENNA; OEM P/N: 261619-001
AP_HFBNBXDDS3QS41KGCXWI72
ANTENNA, ADAPTER, PAL TO 3.5MM, CON; OEM P/N: 267162
AP_DWRBZBTEGO1S3RVS3BX3XE
UB-20 WALL BRACKET
AP_70L7OHJ2EJIWBGYPZWUH2N
UFS-20 FLOOR STAND
AP_KG2ISGPFU32QJ7HBF2QPBB
UTS-20 TABLE STAND
AP_LB53ZW1TRIV6YRYLALJQLE
LINE CORD, 120V, POL, DET, BLK (US/CAN, DUAL); OEM P/N: 260082-001
AP_E1D1MCC8QL6Y6UKZ4X5EM5
LINE CORD, 230V, DETACH, 96" (EURO); OEM P/N: 148203
AP_LHPOXKBV8MNKTVL674MA5T
LINE CORD, 220V, DETACH (UK); OEM P/N: 134725
AP_OCVANBTKPSBBHGLPQJY3XO
LINE CORD, 240V, DETACH (AUS); OEM P/N: 134726
AP_D1GIWZWJQY3KH9E3NN1A7C
LINE CORD, 100V, POL, DET, BLK (JAPAN); OEM P/N: 260086-001
AP_7DIRWX0YSZVHFCYF0IA95D
AC INLET / VOLTAGE SELECTOR ASSY, DUAL-VOLTAGE
AP_4WKN8N8ZL1BG2GLQHFJZH3
MAINS FUSE, SAFETY RATED
AP_Y6FN3B0X047LTNJD9034I7
STRAP, DVD (CLAMP); OEM P/N: 260462
AP_WY1UOJ1XP8NXMGEDO97UM6
CLIP, HEATSINK; OEM P/N: 262080
AP_16JV7KX3RP5B55GJG7A1RR
CLIP, HEATSINK, BB AMP; OEM P/N: 255174
AP_5ZB6SCR26UHI8742E9YIJ2
CLIP, SPRING; OEM P/N: 142864
AP_JMLRX2PEPT0O3J4Y7M5B21
BRACKET, COVER, AMP; OEM P/N: 255179
AP_GI86LKHL5GZZ4TIN4G3CNW
GROUND STRAP, FOIL, 25 MM X 105 MM; OEM P/N: 262634-105
AP_7ZI9X8OYFZQOGEYXNE9PBF
BARRIER, THERMAL (LOCATED UNDER MAIN PCB POWER SUPPLY SECTION); OEM P/N: 268574-001
AP_GZOWOWZM0ZIXCRBHPL7SVM
PAD, THERMAL PHASE CHANGE (AMP IC); OEM P/N: 258627
AP_UAI5MVYAUIFYBWS6UVRF7T
PAD, THERMAL, COMPLIANT, 25 X 25 MM; OEM P/N: 262078-001
AP_MP5RCQBKTKRVV0RL1TFVTA
PAD, THERMAL, COMPLIANT, 9 X 7 MM; OEM P/N: 262078-002
AP_PG3OJ8E4EBQDHQQNMLE35R
GASKET, FOAM, EMI, 25 MM; OEM P/N: 262635-025
AP_FI4D8ILM0R9GZT7JEOY852
GASKET, FOAM, EMI, 3 MM; OEM P/N: 262635-003
AP_YE5U4HHRVMFSA8D5OUDB17
GASKET, .375" X .75" X .06"; OEM P/N: 255201
AP_0JUADLWVZL7MNQ7JH0SFF5
FOAM TAPE, .32"W; OEM P/N: 255202
AP_GOG856TT2RUHBJXO3T7WRW
BATTERY DOOR, REMOTE CONT, GRAPHITE; OEM P/N: 264861-001
AP_S0SMKEUPSZ9T6B3Y285ANX
BATTERY DOOR, REMOTE CONT, PLAT WHT; OEM P/N: 264861-002
AP_5UYZLD7411EFXDT54DGKN0
NAMEPLATE, 38 MM DIAMOND CUT; OEM P/N: 256945-001
AP_WCJ8UD739K9VE6HYXHRRGJ
LABEL, TOP COVER, GRAPHITE; OEM P/N: 256946-001
AP_7YPRJK7A19CM16TY33LAHJ
LABEL, TOP COVER, PLAT WHT (EURO); OEM P/N: 256946-002
AP_C9LYRZ632ETUM0CCK9WZJ2
PRODUCT RATING / SERIAL NUMBER LABEL
AP_DV6JFC78RI9IXZP6KVWE8A
DVD REGION CODE LABEL
AP_F04B0OKZ41LNJBPSZTG6MC
LASER CURRENT RATING LABEL
AP_2VN8JC59X47RM3GCAU6C7R
COMPLIANCE / SAFETY CERTIFICATION LABEL
AP_MH7HBV81VG0UGJ1GORNRBC
FOOT, RUBBER, 12.7 MM DIA X 2.38 MM THK; OEM P/N: 260465
AP_YH8S9WHY8BSKCZA0GX9IOX
BUMPER, RECESSED, FOOT, .88"; OEM P/N: 142839
AP_57HUWXF50JFWUD7ROCIOPJ
FOOT, CLEAR, .312 X 0.85; OEM P/N: 178321-04
AP_732I7AOGTNXAJBWYN1IO48
SCREW, TF, 8-11 X .625", PAN, TORX; OEM P/N: 256947-10
AP_QA3POG71E71562HJ95A578
SCREW, M3; OEM P/N: 260463
AP_P9D0KD0GKFX48OBO00Z3M4
SCREW, TAPP, 8-11 X .5, PAN, ASY, SQ; OEM P/N: 250817-08
AP_2LKCJ6TVLFQV8E2ANHKT2P
SCREW, TAPP, 8-11 x 1.0, PAN, XRC/SQ; OEM P/N: 172672-16
AP_QMEAAWTI3SU1NBTAZ5002O
SCREW, TT, 8-32 X 0.5, PAN, XREC/SQ; OEM P/N: 255191-08
AP_D4RS30HX2G1XIGMBCV35O5
SCREW, M3.5 X 10 MM, THD ROLL; OEM P/N: 140447-10
AP_BLHGPZWELCZC9XC033J16X
SPEAKER DRIVER MOUNTING SCREW
AP_43VLGS1RTJNU00XAS2NP39
BASS MODULE REAR-PANEL MOUNTING SCREW
AP_N1FIBLLT3QEENIJ19RKLSM
DVD MECHANISM MOUNTING SCREW
AP_WF218YQ1CBNLY17BN9R0HO
INTERNAL WIRE HARNESS, BASS DRIVER
AP_7R5XEJZ9URD4U08QT39CE1
INTERNAL WIRE HARNESS, AC PRIMARY
AP_RK2EM4G6B9TL32WX9O0BTY
INTERNAL WIRE HARNESS, TRANSFORMER SECONDARY
AP_4TAMF2YTF21MFD362QCDYR
INTERNAL WIRE HARNESS, CONSOLE I/O
AP_X0B689QM9EW3CTH6L51DCF
ARRAY INTERNAL DRIVER HARNESS
AP_CFO5QWSFFRCT42VW9T1OHG
ARRAY REAR TERMINAL STRIP
AP_ZKSEK5BRK84BICJ6XDOCI3
ARRAY ENCLOSURE, GRAPHITE
AP_P5HFWWA0KHP1AH5RAKP90A
ARRAY GRILLE, GRAPHITE
AP_EJ86496ZNI50TOD56JHAGA
ARRAY BOSE NAMEPLATE
AP_TL6IYYNYBC3RHHFRNCYDFQ
ARRAY TWIDDLER DRIVER ASSY, 60 MM
AP_A6IGDYZRSGNQDD73MYO1X2
BASS MODULE ACOUSTIC DAMPING
AP_0FPDVZEXQ83YB51D0Y9HHK
BASS MODULE PORT / DUCT ASSY
AP_IUSD66P2TJPR1C71HFGPN5
ACCY KIT, 3.2.1, 230V, GRPHT (EURO, UK); OEM P/N: 260094-021
AP_M85G46DAVUXCDCSAPA6KYX
ACCY KIT, 3.2.1, 100V, GRPHT (JAPAN, AUS, DUAL); OEM P/N: 260094-001
AP_7M5C4QELMUAPGZ0PO20MQJ
PACKING, EPS, CONSOLE; OEM P/N: 263123
AP_YA97TWZTC1L500Q4KGSXGD
PACKING, EPS, CONSOLE; OEM P/N: 254576
AP_YAY1ZGOL0R0C0CMDF5B9E0
PACKING, INSERT, EPS, BASS BOX; OEM P/N: 260091
AP_CQR3U52UXLKYPD6AHQ2LBR
PACKING, TRAY, ACCY, PET 30; OEM P/N: 260454-01
AP_DZ2ENIJJVEPXXY5ZEXCL0K
PACKING, INSERT, SCORED SHT; OEM P/N: 260096
AP_KGSWGYLBPKA0RP4DT01PKG
CARTON, D/C, ACCY KIT W/ART; OEM P/N: 260456-01
AP_HVG83QR55R1DTIGDLRFBE8
CARTON, RSC, PRINTED; OEM P/N: 255183-01
AP_7O63VUQ23YHKP0ZRVZYI2A
BAG, POLY, 13.5 x 35 x 9.5 x 2.5 mil; OEM P/N: 114522
AP_EGVVJETKVCJ0GOTMT8FS7V
BAG, POLY, 14.38 x 9.87 x 2 mil; OEM P/N: 103351
AP_49DHP46J7T4F2R4G8WKE9A
BAG, POLY,3 X 3 MIL; OEM P/N: 194392
AP_5D1K0BY4IKZYSX6XV1QW1V
COMMITMENT LETTER; OEM P/N: 251001
AP_2CUOIRXHUIGQC8MEUZ2UKC
SHT, QUICKSTART, MULTI-LANGUAGE; OEM P/N: 267520
AP_JOFEEJNXNCNCX41XCQYWRO
MANUAL, OWNERS, 3 LANG; OEM P/N: 256951
AP_X4EX0Z7PGVK1Q0FFKNIE9P
MANUAL, OWNERS, 5 LANG; OEM P/N: 256952
AP_ESXNZC0TKDENF7SAFV8J8Q
CARD, INFO, WARRANTY, MULTI LANG; OEM P/N: 181460
AP_36473EOQY82YRIZF9WVMNP
CARD, REPLY 3.2.1 (US, DUAL); OEM P/N: 268158
AP_WQEIOC5CPOQB5MNGGCJ491
ADDRESS PAGE, BOSE; OEM P/N: 259434
AP_YNBY9LA0E1ORJR4I13QHT9
DECLARATION OF CONFORMITY; OEM P/N: 255192
AP_QQSJB1A4SZD4Z3DMEALGY9
DVD PACK, 3·2·1 IN-BOX (US, DUAL); OEM P/N: 269252
AP_UCW1TJSWYGVNQ6GXJGHBPY
SOFTWARE UPDATE CD, 3·2·1 SERIES I
AP_38YFQ3PYX10MT8PPZ0V20S
FIRMWARE UPDATE ISO IMAGE, 3·2·1 SERIES I
AP_6D9W95X5BDIP4CYGQ45IEB
SERVICE MANUAL, 3·2·1 AND 3·2·1 GS SERIES I; OEM P/N: 270000-SM Rev. 02
AP_PX8B9OJ880K183ZYBCOH0C
TROUBLESHOOTING GUIDE, 3·2·1 AND 3·2·1 GS; OEM P/N: 270000-TG1 Rev. 00
AP_OYCTGVA0FWYPWNPLNCMS4F
SERVICE MANUAL / SCHEMATIC SET; OEM P/N: 263493 Rev. 0
AP_7BTPSKE9GASN6YY2J21CCO
CONSOLE DC POWER TEST CABLE
AP_LUJ3L9TV3OUASUJCHL6YSW
BASS MODULE TEST CABLE
AP_VPB8W7AZIYJBT13SZKKXQO
CONSOLE TAP CABLE
AP_0RSLXTPBC7PXLAITA541MS
ATAPI 40-PIN EXTENDER TEST CABLE
AP_OQ9TT04KBSJWAP1Q3QBBVF
DVD POWER EXTENDER TEST CABLE
AP_NG6SF40Z7OLQDUZRY1GEGK
15-PIN FEMALE SUBMINIATURE-D TEST CONNECTOR
AP_2L6K9BC3D2GH5YK4SA94MU
18 AWG RED TEST WIRE, 4 FT
AP_B7QD4798U0FCTZZQ0Z4CF3
18 AWG BLACK TEST WIRE, 4 FT
AP_F4YPIRU5A37DG6RIUAYN5S
BATTERY, CARBON, AA SIZE; OEM P/N: 147538
AP_ZMH7C8X3Q1O3XXAORI049C
RESISTOR, 33.2K, 0603, 1/10W, 1%; OEM P/N: 191465-3322
AP_JMBTLFEI9S9DB6IFN7MHDY
RESISTOR, 6.04K, 0603, 1/10W, 1%; OEM P/N: 191465-6041
AP_VMYT6NN9TZ5K13JWX3KXZP
RESISTOR, 9.09K, 0603, 1/10W, 1%; OEM P/N: 191465-9091
AP_CW4K20VF7YUHQ796JQGTWH
RESISTOR, 10K, 0603, 1/10W, 1%; OEM P/N: 191465-1002
AP_CEBXSZ5XFALI48MAUFB7DA
RESISTOR, 19.1K, 0603, 1/10W, 1%; OEM P/N: 191465-1912
AP_1GKJ8WAV7043D1FFY8MYIH
RESISTOR, 22.1K, 0603, 1/10W, 1%; OEM P/N: 191465-2212
AP_VH0MAL7ONTG498NTK0XSB6
RESISTOR, 9.53K, 0603, 1/10W, 1%; OEM P/N: 191465-9531
AP_U6XHU6FAQSYCV7JCBXD40E
RESISTOR, 1K, 0603, 1/10W, 1%; OEM P/N: 191465-1001
AP_G4KBMMBPXOQ3PDKR4CD7OI
RESISTOR, 51 OHM, 0603, 1/10W, 5%; OEM P/N: 199403-510
AP_UK8RHO8WLSV5MJR2IKMMJR
RESISTOR, 4.7K, 0603, 1/10W, 5%; OEM P/N: 199403-472
AP_J3500WCTODE76DQTK9PN9B
RESISTOR, 13.3K, 0603, 1/10W, 1%; OEM P/N: 191465-1332
AP_QX7ZSTOTRYNJ8OF4K0W8XV
RESISTOR, 10.2K, 0603, 1/10W, 1%; OEM P/N: 191465-1022
AP_XA6ONA525XEHVQOFCZTZ7C
RESISTOR, 0603, 1/10W, 1%; OEM P/N: 191465-4221
AP_9ITHL4WOD7GUIM73CV3ZGB
RESISTOR, 499 OHM, 0603, 1/10W, 1%; OEM P/N: 191465-4990
AP_HCCOR2JMFZ0PFF8JN9107L
RESISTOR, 10K, 0603, 1/10W, 5%; OEM P/N: 199403-103
AP_7ULMNXAW2VPLEKG8R5S1KK
JUMPER, CHIP, 0603; OEM P/N: 196042
AP_FRE333LX7DX5JLUG1T2JJU
RESISTOR, 750 OHM, 1206, 1/4W, 5%; OEM P/N: 124895-7515
AP_JLVNOG6QT8V0FQOI78ON56
RESISTOR, 100 OHM, 0805, 1/10W, 5%; OEM P/N: 133626-1015
AP_R74JN8IQM9YNWRX1NIP2K3
RESISTOR, 470K, 0603, 1/10W, 5%; OEM P/N: 199403-474
AP_MBDG3O04RAQY92JK8S6IOR
RESISTOR, 47K, 0603, 1/10W, 5%; OEM P/N: 199403-473
AP_L90ZKCPHCKZXMSZTNA3SVZ
RESISTOR, 19.6K, 0603, 1/10W, 1%; OEM P/N: 191465-1962
AP_MR1HUB6VKRL9LR9WJ5NPHG
RESISTOR, 560 OHM, 0603, 1/10W, 1%; OEM P/N: 191465-5600
Repair, service & parts, for your Bose 3 2 1
- 1 Repairs are performed on a best-effort basis. Acme Revival utilizes a network of sophisticated technicians and engineers with diverse service offerings; despite this, factors that influence the repair outcome may ultimately prove unsuccessful. Acme Revival makes no claim that it can, guarantee a repair before your device is sent in for diagnostic evaluation; even then, repair and diagnostic work are not mutually exclusive. Despite well-intentioned quoting, repairs may still prove unsuccessful.
- 2 Parts known to Acme Revival via Acme’s Neural Network and documented discovery. These parts may not represent OEM cataloging nor does Acme Revival guarantee display accuracy. Always check with Acme’s Help Desk to ensure availability and accuracy. Parts may not be in new condition, may be unavailable, discontinued, or not offered for independent sale.
